Levelflex M FMP40 PROFIBUS PA
Endress+Hauser

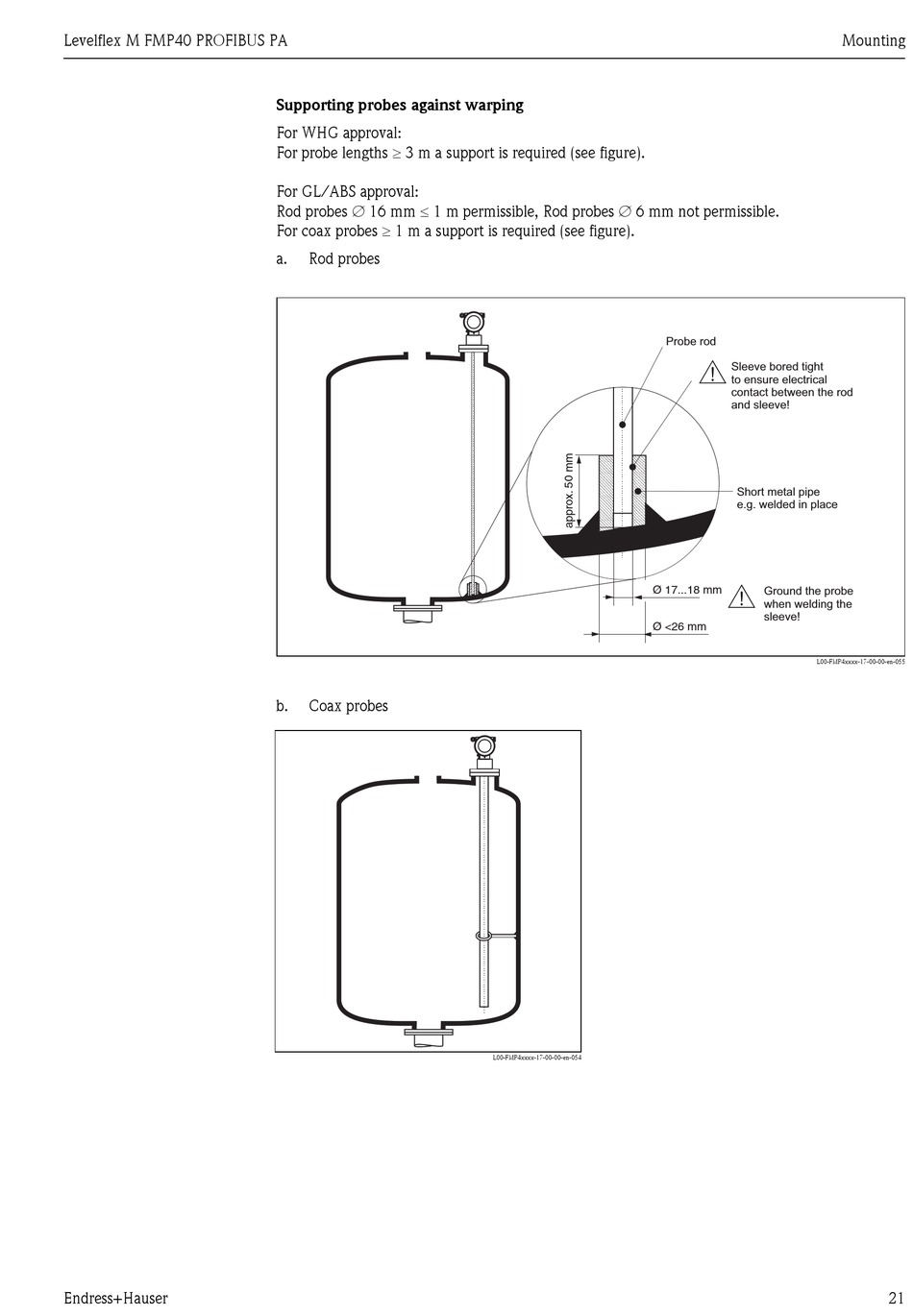

Supporting probes against warping
For WHG approval:
For probe lengths ≥ 3 m a support is required (see figure).
For GL/ABS approval:
Rod probes ∅ 16 mm ≤ 1 m permissible, Rod probes ∅ 6 mm not permissible.
For coax probes ≥ 1 m a support is required (see figure).
a. Rod probes
b. Coax probes
Ø 17...18 mm
Ø <26 mm
L00-FMP4xxxx-17-00-00-en-054
Probe rod
#
Sleeve bored tight
to ensure electrical
contact between the rod
and sleeve!
Short metal pipe
e.g. welded in place
#
Ground the probe
when welding the
sleeve!
L00-FMP4xxxx-17-00-00-en-055
Mounting
