Mounting
wall
94
pipe
!
32

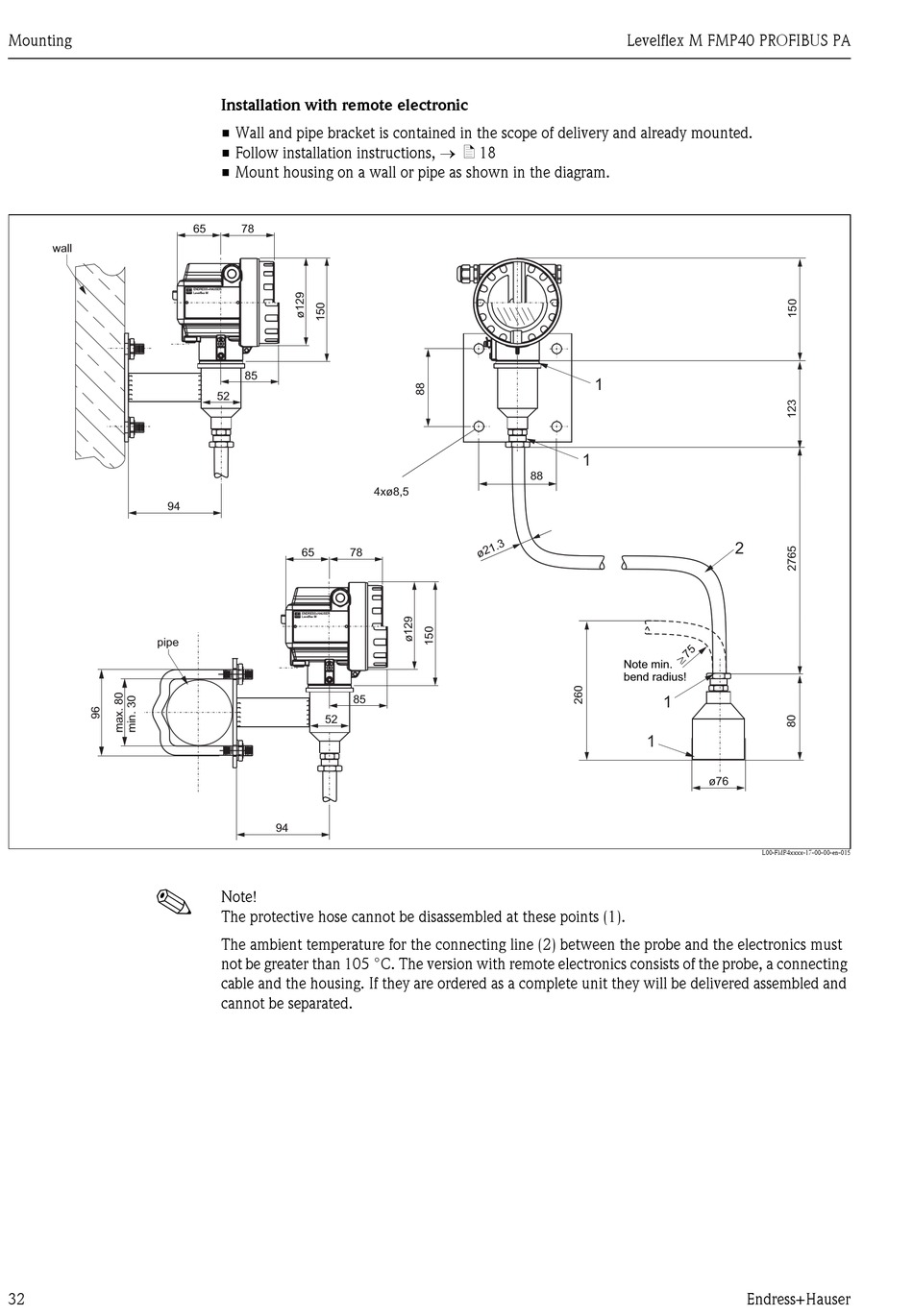

Installation with remote electronic
• Wall and pipe bracket is contained in the scope of delivery and already mounted.
• Follow installation instructions, → ä 18
• Mount housing on a wall or pipe as shown in the diagram.
65 78
ENDRESS+HAUSER
Levelflex M
85
52
65 78
ENDRESS+HAUSER
Levelflex M
85
52
94
Note!
The protective hose cannot be disassembled at these points (1).
The ambient temperature for the connecting line (2) between the probe and the electronics must
not be greater than 105 °C. The version with remote electronics consists of the probe, a connecting
cable and the housing. If they are ordered as a complete unit they will be delivered assembled and
cannot be separated.
88
4xø8,5
Levelflex M FMP40 PROFIBUS PA
1
1
2
Note min.
bend radius!
1
1
ø76
Endress+Hauser
L00-FMP4xxxx-17-00-00-en-015
