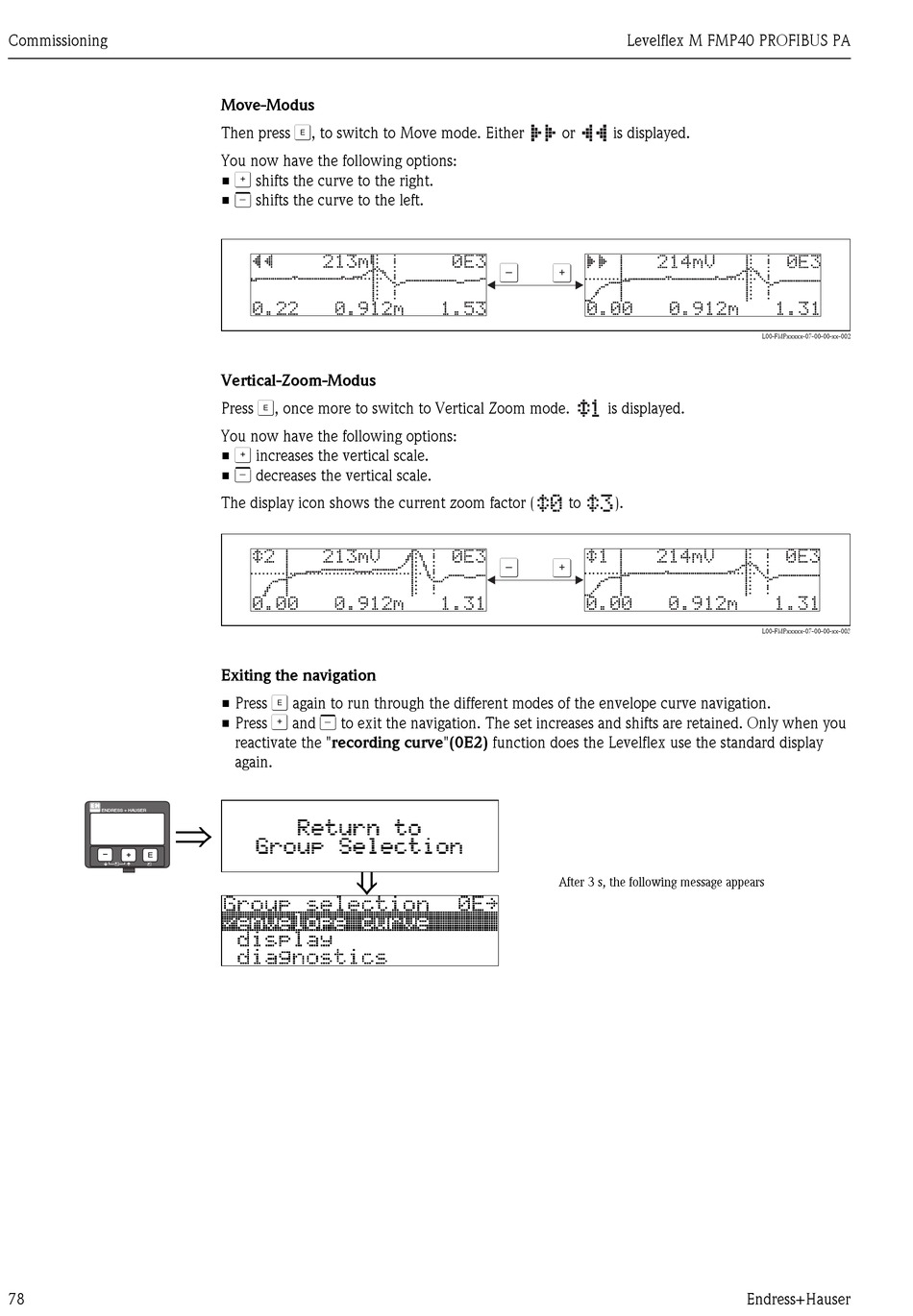

Endress+Hauser Profi Bus Levelflex M FMP40 Operating Instructions Manual page 78

Commissioning
⇒
ENDRESS + HAUSER
– +
E
78
Move-Modus
F
Then press , to switch to Move mode. Either
You now have the following options:
O
• shifts the curve to the right.
S
• shifts the curve to the left.
Vertical-Zoom-Modus
F
Press , once more to switch to Vertical Zoom mode.
You now have the following options:
O
• increases the vertical scale.
S
• decreases the vertical scale.
The display icon shows the current zoom factor (
Exiting the navigation
F
• Press again to run through the different modes of the envelope curve navigation.
O S
• Press and to exit the navigation. The set increases and shifts are retained. Only when you
reactivate the "recording curve"(0E2) function does the Levelflex use the standard display
again.
⇓
Levelflex M FMP40 PROFIBUS PA
or is displayed.
S
O
is displayed.
to ).
S O
After 3 s, the following message appears
L00-FMPxxxxx-07-00-00-xx-002
L00-FMPxxxxx-07-00-00-xx-003
