5.1.1 General structure of the operating menu
The operating menu is made up of two levels:
• Function groups (00, 01, 03, ..., 0C, 0D):
The individual operating options of the device are split up roughly into different function groups.
The function groups that are available include, e.g.: "basic setup", "safety settings.", "output",
"display", etc.
• Functions (001, 002, 003, ..., 0D8, 0D9):
Each function group consists of one or more functions. The functions perform the actual operation
or parameterisation of the device. Numerical values can be entered here and parameters can be
selected and saved. The available functions of the "basic setup" (00) function group include,
e.g.: "tank properties" (002), "medium property" (003), "process cond." (004), "empty
calibr." (005), etc.
If, for example, the application of the device is to be changed, carry out the following procedure:
1. Select the "basic setup" (00) function group.
2. Select the "tank properties" (002) function (where the existing tank shape is selected).
5.1.2 Identifying the functions

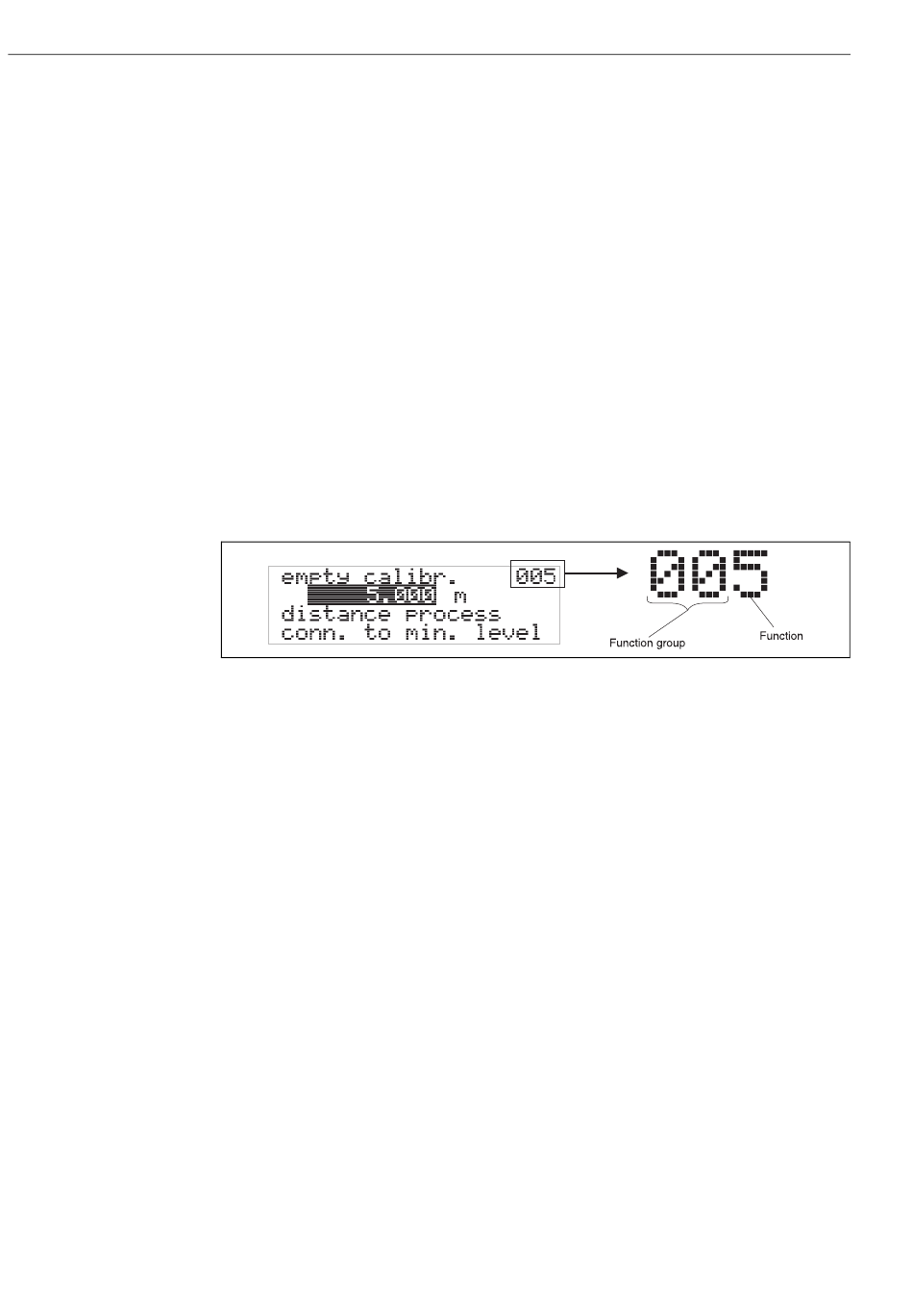

For simple orientation within the function menus, for each function a position is shown on the
display.
The first two digits identify the function group:
• basic setup 00
• safety settings 01
• linearisation 04
...
The third digit numbers the individual functions within the function group:
• basic setup 00
Here after the position is always given in brackets (e.g. "tank properties" (002)) after the described
function.
→
• tank properties
• medium property
• process cond.
...
Levelflex M FMP40 PROFIBUS PA
L00-FMRxxxxx-07-00-00-en-005
002
003
004
