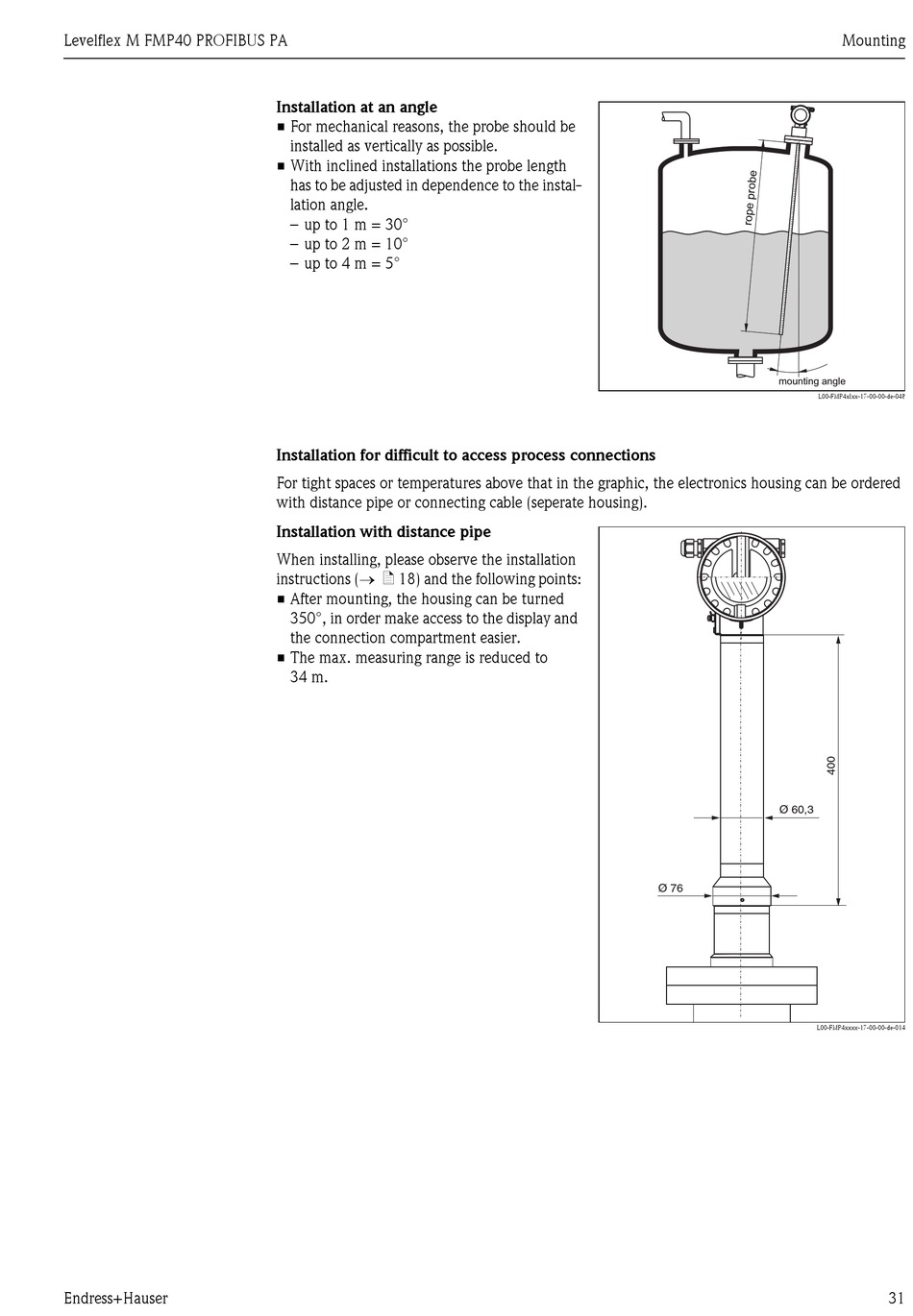

Installation at an angle
• For mechanical reasons, the probe should be
installed as vertically as possible.
• With inclined installations the probe length
has to be adjusted in dependence to the instal-
lation angle.
– up to 1 m = 30°
– up to 2 m = 10°
– up to 4 m = 5°
Installation for difficult to access process connections
For tight spaces or temperatures above that in the graphic, the electronics housing can be ordered
with distance pipe or connecting cable (seperate housing).
Installation with distance pipe
When installing, please observe the installation
instructions (→ ä 18) and the following points:
• After mounting, the housing can be turned
350°, in order make access to the display and
the connection compartment easier.
• The max. measuring range is reduced to
34 m.
mounting angle
L00-FMP4xIxx-17-00-00-de-048
Ø 60,3
Ø 76
L00-FMP4xxxx-17-00-00-de-014
