iQ Desktop+ Satellite Router Front LEDs

3.1 iQ Desktop+ Satellite Router Front LEDs

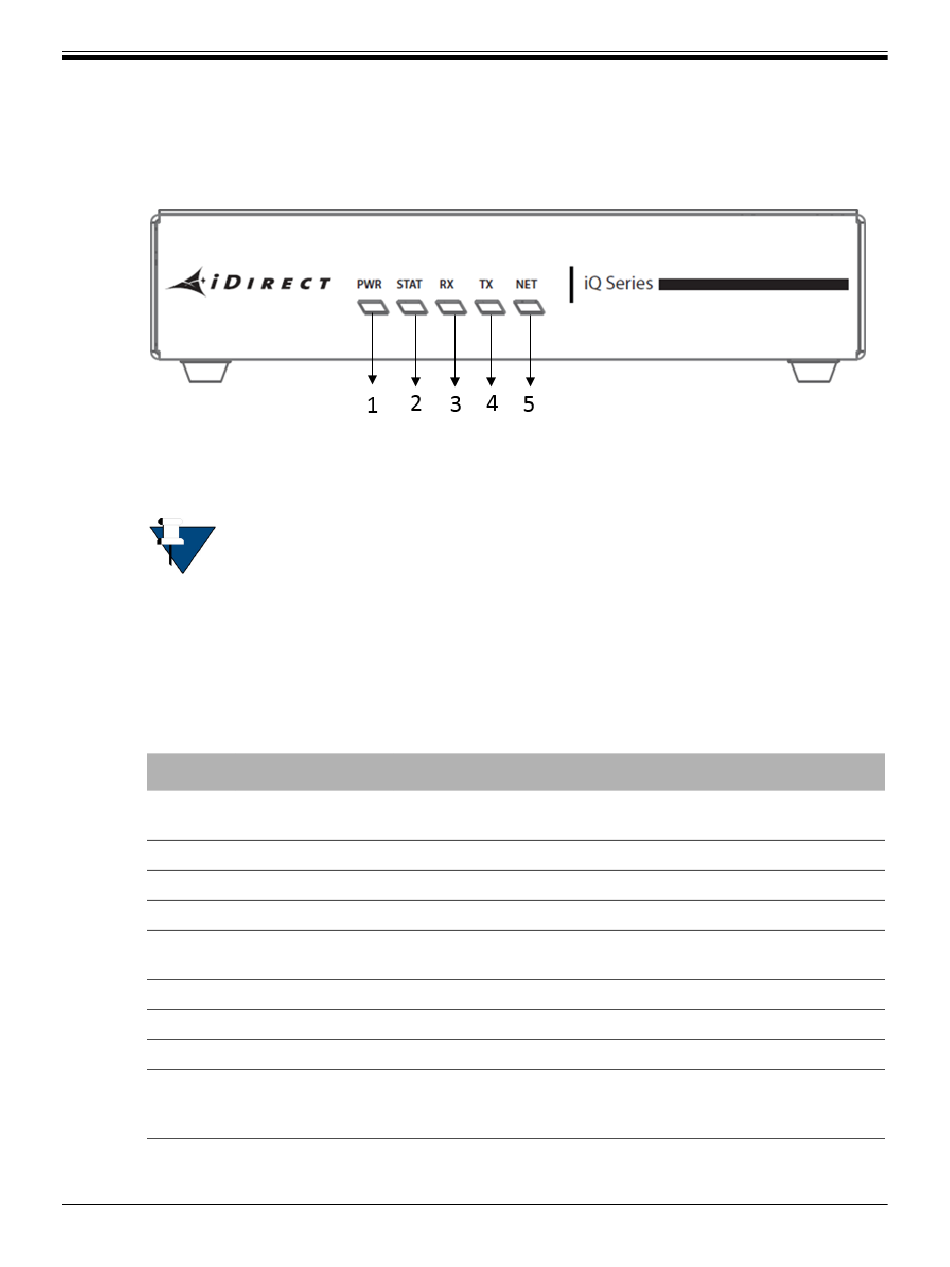

The iQ Desktop+ Satellite Router front panel is shown in
NOTE: The descriptions of the LEDs may vary between iDX Software Releases.
Check the release specific Terminal WUI User Guide, and Release Notes for
details.
3.2

iQ Desktop+ Front Panel LED Status Descriptions

Descriptions for states of LEDs may vary between iDX Software Releases. Check the release
specific Terminal WUI User Guide, and Release Notes for details.
the front panel and

Table 3-1. iQ Desktop+ Satellite Router Front Panel LED Descriptions

Label Signal Color/Type Definition
POWER
STATUS
RX
8

Figure 3-1. iQ Desktop+ Satellite Router Front Panel LED Display

Table 3-1 describes the front panel LED color and status information:
Indicates iQ Desktop+ power status and any power-related
problems
Off No or low power input to the modem
Solid Green The modem is powered on
Boot Sequence and Overall Hardware Status
1/2 second flashing Remote initializing
Green
Solid Green Initialization complete
Provides downstream receive status
Solid Amber Downstream carrier configured, demodulator not yet locked
1 second flashing Downstream carrier configured, demodulator locked to
Amber downstream carrier, Network Clock Reference (NCR) not yet
locked
