Output Side Connections

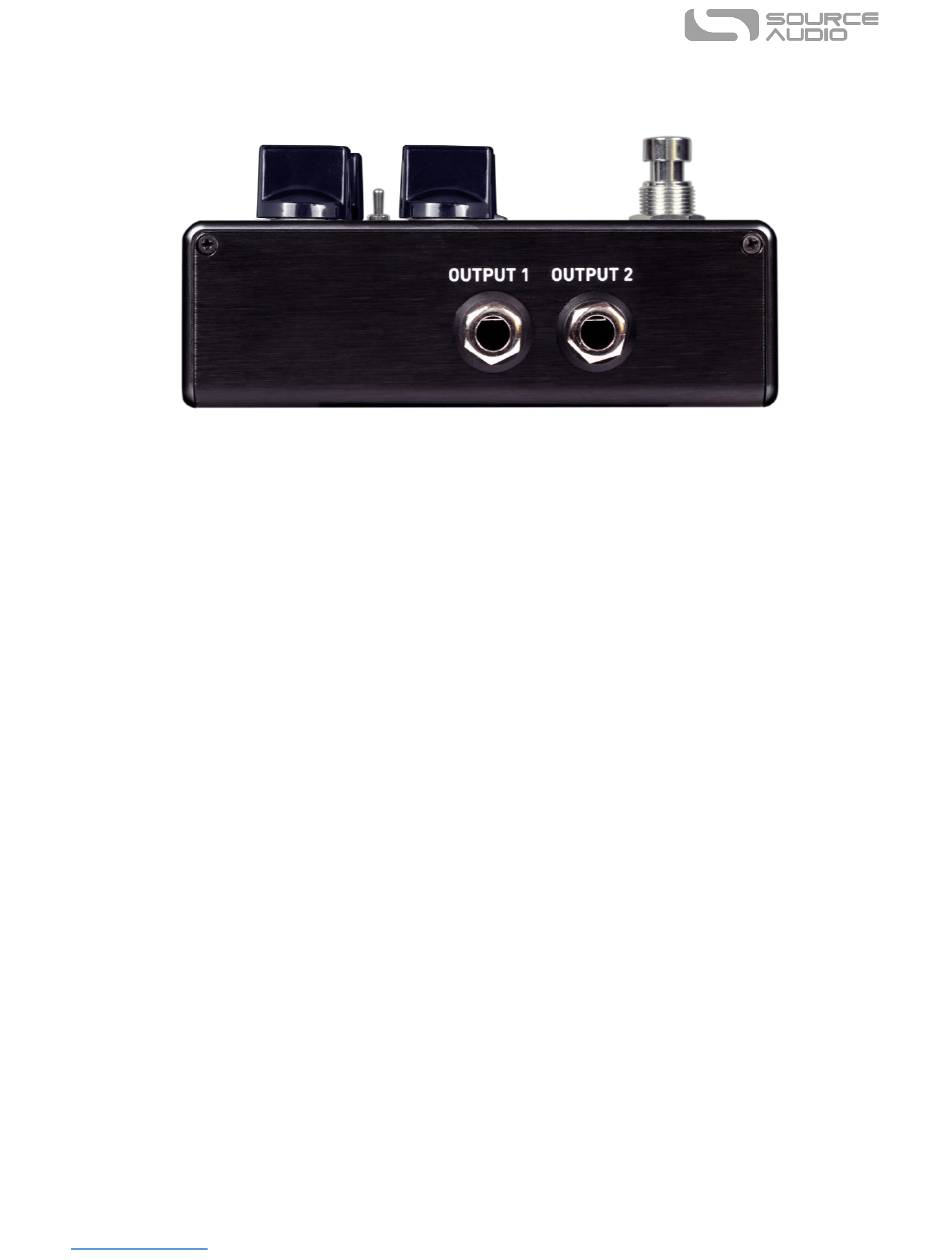

OUTPUT 1
This is the primary audio output. Connect it to your amplifier, recording interface, or the next device
in your effects signal chain using a mono (TS) ¼" cable.
OUTPUT 2
O 2 can act either as an audio output or a daisy-chain data connection for the Neuro App.
UTPUT
•
OUTPUT 2 as an Audio
It carries an audio signal when the Ultrawave is configured with a signal routing that uses stereo
outputs. Connect it to your amplifier, recording interface, or the next device in your effects
signal chain using a mono (TS) ¼" cable.
•
OUTPUT 2 as a Neuro App Data Daisy-Chain Output:
connection for the Neuro App, passing data from the Ultrawave to the next Source Audio effect
in your signal chain. You can daisy-chain the Neuro App data regardless of whether O
configured to output audio or not. Connect O
(usually I 2) using a stereo (TRS) 1/4" cable. The audio signal (if applicable) will be on the tip
NPUT
contact of the plug, and the Neuro App data will be on the ring contact. This allows audio and
Neuro data to flow on the same cable.
