Ø 70
Ø 81
IT
istruzioni di montaggio
GB
installing instructions
DE
Gebrauchsanweisung
FR
instructions de montage
ES
instrucciones de montaje
clv 1
clv1
12V
A6.517.02
cassaforma
wallbox
Gehäuse
coffrage
encofrado
A6.517.01
HMG
incasso
build-in
Einbauleuchten
encastré
empotrado
A9.517.91
cristallo
clippo
A9.517.81
A9.517.82
notes
F
Ba15d
50W
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the clv 1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Viabizzuno clv 1

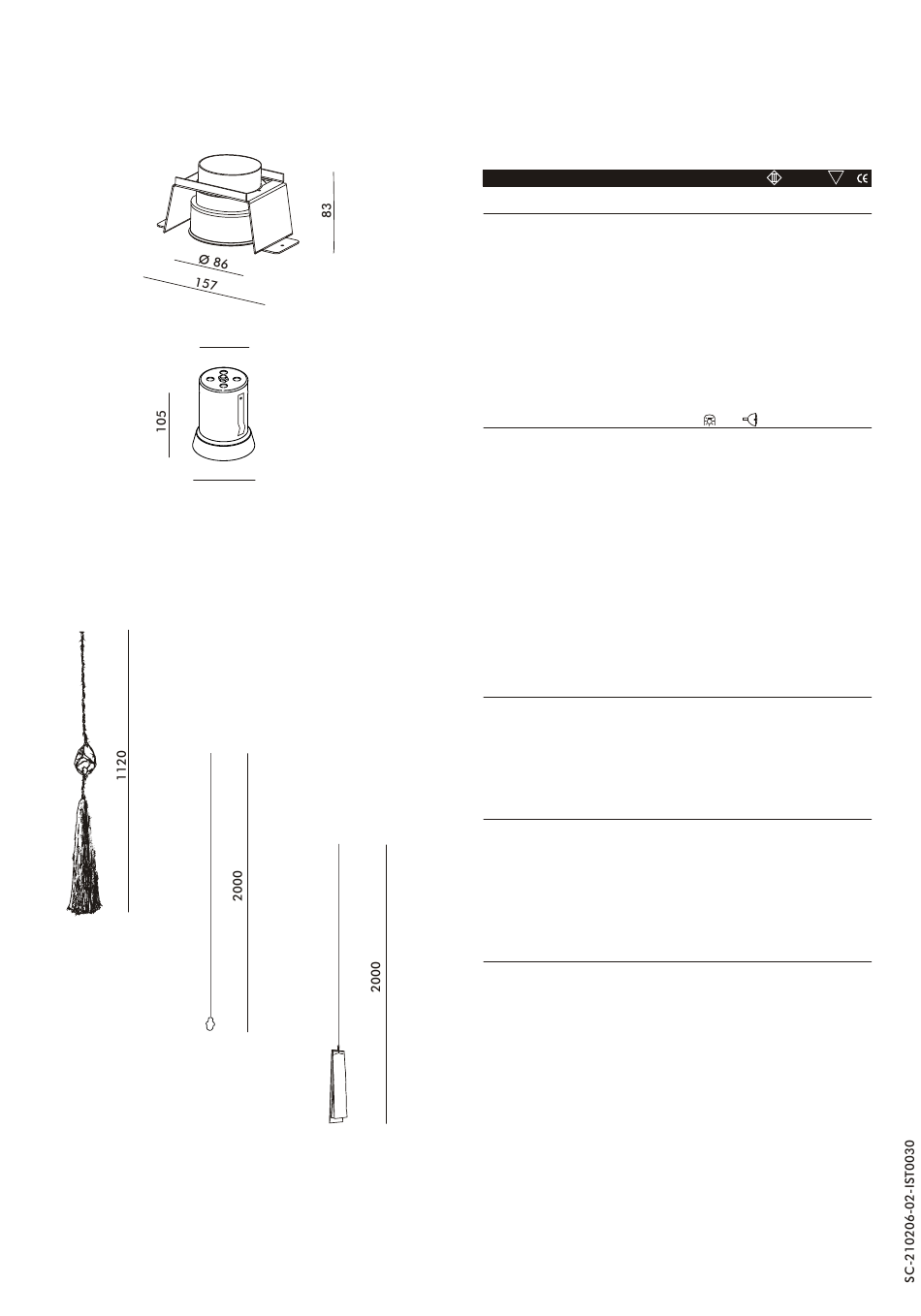

  • Page 1 Gebrauchsanweisung instructions de montage instrucciones de montaje clv 1 clv1 A6.517.02 cassaforma wallbox Gehäuse coffrage encofrado Ø 70 A6.517.01 incasso Ba15d build-in Einbauleuchten encastré Ø 81 empotrado A9.517.91 cristallo clippo A9.517.81 A9.517.82 notes...
  • Page 2 The warranty covers 24 months if stamped and dated by the authorised Viabizzuno dealer. The 24 months warranty ATTENZIONE: shall no apply in case of wrong use, altered or deleted La sicurezza dell'apparecchio è...
  • Page 3 1. IT Realizzare un foro nel cartongesso di Ø86 mm e due fori diametrali [Ø3 mm] a 140 mm di interasse tra loro. NOTA: per l'installazione a gesso: realizzare una Ø86 nicchia piana nella superficie superiore, in modo da ottenere uno spessore di 30 mm massimo in corrispondenza del punto di istallazione della cassaforma.
  • Page 4 Inserire la cassaforma (B) sulla staffa (A) e fissarla ad essa,da sotto, con le due viti in dotazione. 230/12V insert the wallbox (B) onto the bracket (A) and fasten to it from below with the two screws supplied. Die Schalung (B) auf den Bügel (A) setzen und mit den mitgelieferten Schrauben von unten daran befestigen.
  • Page 5 Inserire la lampadina (E) sul portalampada, ruotandola verso destra [freccia “IN” sulla lampadina]. insert the bulb (E) on the lamp holder, by rotating it clockwise [“IN” arrow indicated on the bulb]. Die Lampe (E) durch eine Drehbewegung [Pfeil „IN” auf 230/12V der Lampe] in die Lampenfassung einsetzen.
  • Page 6 istruzioni di montaggio acessori installing instructions accessories Gebrauchsanweisung Zubehörteile instructions de montage accessoires instrucciones de montaje accesorios inserire la molla (G) sulla cassaforma (B) inserendo le estremità nei due fori laterali. insert the spring (G) on the wallbox (B), by introducing the ends into the two side holes. Die Feder (G) durch Einsetzen der Enden in die beiden seitlichen Öffnungen auf die Schalung (B) setzen.
  • Page 7 smaltimento dell'apparecchio equipment disposal entsorgung des geräts elimination de l'appareil eliminación del aparato A fine vita l'apparecchio di illuminazione è un rifiuto che rientra nella categoria Raee (Rifiuto di Apparecchiatura Elettrica ed Elettronica), pertanto non deve essere smaltito come un rifiuto municipale misto ma deve essere smaltito correttamente per evitare danni all'ambiente, alle persone e agli animali, ed evitare lo spreco di...

This manual is also suitable for:

CassaformaIncassoCristalloClippoNotesA6.517.02 ... Show all
