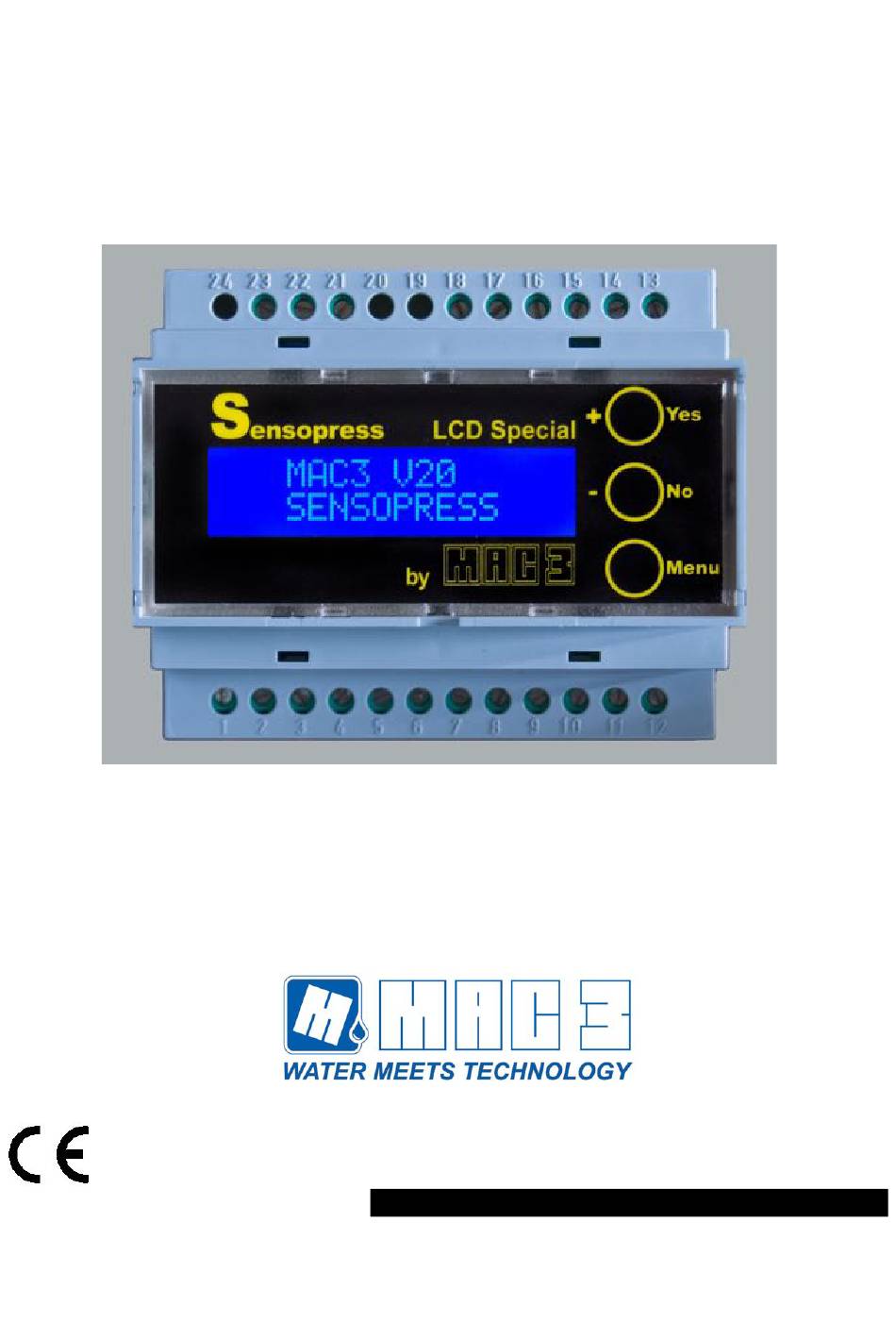

- Page 1 Sensopress LCD User Guide Made in Italy Cod. /620020102 Dis.7208 Rev.00 06-2015 Eng...
-
Page 2: Table Of Contents
Operating Conditions ........................ 4 Technical features ........................5 INSTALLATION ..........................6 Electrical Connection ........................ 6 OPERATION AND USE ......................... 9 Front Panel Sensopress LCD ....................9 Visualization Menu ........................10 4.2.1 Auto Mode ........................10 Setting menu ........................... 11 4.3.1 CHANNEL Mode ...................... -
Page 3: Warnings
Sensopress LCD is an electric device, possible water seepage in contact with the electrical components can be damaging. DANGER Sensopress LCD is CE labelled but in the case of wrong installation can cause electromagnetic interference. Verify the correct operation of other electronic devices with Sensopress LCD on and running. -
Page 4: General Remarks
Sensopress LCD can be produced in two versions: with a single output or with 4 outputs in the multichannel version. Sensopress LCD is a device which allows to start a relay ( 4 relays in the multichannel version) in function of differential threshold levels set-up in the data storage by the user. -
Page 5: Technical Features
4 n° 1 (10A 250V~) + n° 3 (2A 250V~) Housing NORYL UL94V0 Dimensions 105x90x73 mm Weight 450 g Protection degree IP20 Approval Sensors for Sensopress LCD Code PRS00B1A1M20000 Housing BRASS Ceramic Capsule piezoresistive, calibratedand temperature Principle operation compensated Dimension 32x76 mm... -
Page 6: Installation
• Avoid places where the temperature can decrease under (0°C). Electrical Connection The device is provided with a terminal to which is possible to connect the Sensopress LCD supply wires and also the connecting sensor’s wires and those of the relay’s output. - Page 7 Sensopress_LCD_Rev_00_Eng.doc Eng Function Terminal Description Neutral Supply Ground GND Fase Sensor Mass Riturn Sensore RETURN Sensor Supply +15V Sensor Contact Normally Relay Closed NC Output Contact Common C 10A 250Vac Contact 10A 30Vdc Normally Open NO Figure 1. Connections for the version with a single output (TSL00Y0100 e TSL00X0100) * For the sensor with the PVC cable, the sensor’s ground is the brown wire, for the sensor with the polyurethane cable PU + screen is the braided shield one.
- Page 8 Sensopress_LCD_Rev_00_Eng.doc Eng Function Terminal Description Neutral Power Supply Ground GND Fase Normally Relay OpenNO Output 2 Common C 2A 250Vac Normally 2A 30Vdc Closed NC Normally Relay Open NO Output 3 Common C 2A 250Vac Normally 2A 30Vdc Closed NC Normally Relay Open NO...
-
Page 9: Operation And Use
Sensopress_LCD_Rev_00_Eng.doc Eng OPERATION AND USE With Sensopress LCD, is possible the managing of a differential threshold for the liquid control (4 differential threshold with the multi-channel version). After having accomplished accurately the electric installation is possible to proceed with the starting of the device. -
Page 10: Visualization Menu
Sensopress_LCD_Rev_00_Eng.doc Eng Visualization Menu 4.2.1 Auto Mode Just after the initial frame the device shows the frame corresponding to the AUTO Mode. The auto mode shows, how it is indicated in Figure 4, the following parameters: The chosen channel (in the single output version is only CH:1) •... -
Page 11: Setting Menu
Sensopress_LCD_Rev_00_Eng.doc Eng Current mode Changing mode request Figure 5 The auto mode is the default one, and if the device is in a different mode, after some minutes of inactivity it goes on the AUTO mode. After the choise of the wanted mode with the Menu button, push button Yes/+ to enter it. Setting menu By pushing the Menu button it is possible to choose between the different modes of visualising and to set-up the device. -
Page 12: Channel Mode
Sensopress_LCD_Rev_00_Eng.doc Eng 4.3.1 CHANNEL Mode This mode is possible only with the multi-channel version and it is used for : To enable or not the wanted channel. • !Attention: if the channel is disabled, the corresponding relay, even if the liquid’s level oversteps the set-up thresholds for that channel, does not get active. -
Page 13: Low Mode
Sensopress_LCD_Rev_00_Eng.doc Eng 4.3.2 LOW Mode This mode is necessay for choosing the low threshold of intervention for the chosen channel. It is possible to enter the LOW mode from whatever other mode by choosing the sign GO to LOW with the button Menu and by pushing yes/+. The LOW mode allows to set-up the minimum point of intervention. -
Page 14: Manual Mode
Sensopress_LCD_Rev_00_Eng.doc Eng LEVEL: 301 cm in Figure 8). By pushing the Yes/+, No/- buttons it is possible to increase or to decrease the wanted maximum threshold; the maximum threshold cannot be lower than the minimum one; if this gets reached the device will start again from the point 899 cm; with the Menu button it is possible to memorize the set-up value and it is possible to go to the changing state request;... -
Page 15: Display Mode
Sensopress_LCD_Rev_00_Eng.doc Eng The relay’s state correspondent to the chosen channel. To change state push button Yes/+ Current mode Figura 9 Chosen channel. To change channel push button No/- 4.3.5 DISPLAY Mode This mode is necessary for managing the backlight of the display. It is possible to enter the DISPLAY mode from any other mode by selecting the sign GO to DISPLAY with the Menu button and by pushing Yes/+. -
Page 16: Calibration Of Water's Level Scale
In this respect no intervention is required by the user. For various reasons, such as the aging of components, sensor replacement, a change in the sensor’s setup, etc., it might be necessary a new calibration. If requested, this can be realized by the MAC3 specialists... -
Page 17: Calib Mode
Sensopress_LCD_Rev_00_Eng.doc Eng CALIB Mode It is possible to enter the CALIB mode from any other mode by selecting the sign GO to CALIB with the Menu button and by pushing Yes/+. In the CALIB mode it is possible to save the reading realized by the sensor that has been put through level zero and through the maximum level that can be fit by the user. -
Page 18: High Level Calibration
Sensopress_LCD_Rev_00_Eng.doc Eng Figure 16 By pushing the Yes/+ button it is possible to make the zero setting and on the display it is shown the writing SAVING…….for a few seconds, after which the device turns in the AUTO Mode. By pushing the Menu button there is the possibility to go out from the calibration procedure without saving the zero. -
Page 19: Electrical Noise
Sensopress_LCD_Rev_00_Eng.doc Eng By pushing the Menu button there is the possibility to leave the calibrating procedure without saving the high level. It turns back to the AUTO mode. Electrical Noise If the device is arranged in a place with electromagnetic noise, or if the relay’s contacts supply some specific loads, the device may show anomalous behaviors. - Page 20 Sensopress_LCD_Rev_00_Eng.doc Eng Via Maestri del Lavoro 25/27 50013 - Campi Bisenzio (FI) ITALY Tel. +39.055.88.77.672 - +39.055.88.77.372 +39.055.88.79.276 Fax. +39.055.88.77.068...
