Short Manual Compact-Change-System CWS
About this Short Manual
This Short Manual describes the use of the manual
Compact-Change-System CWS with a gripper.
If any data listed within this manual vary from the ones
listed in the grippers manual, these data listed here are
valid.
Detailed information about assembly, connection,
installation, use and maintenance of the gripper can be
found on the manual of the gripper.
Safety notes
WARNING
Risk of injury from gripper unit falling!
If the spindle will be lubricated with grease or oil, or the
unit is used in lubricated environment, there is a risk of
the spindle getting loose due to the reduced friction
torque while vibrations. The change adapter CWA with
the gripper can be seperated from the change head CWK
and can fall down!
• Do not lubricate the spindle with oil or grease!
Scope of delivery
The scope of delivery includes
• change head CWK
– Accessory pack: Centering sleeve (2x)
• change adapter CWA
Accessories
• Adapter plate A-CWA
Accessory pack: 2x O-ring / 2x Centering sleeve / 2x screws
Assembly
Mechanical connection
Mounting

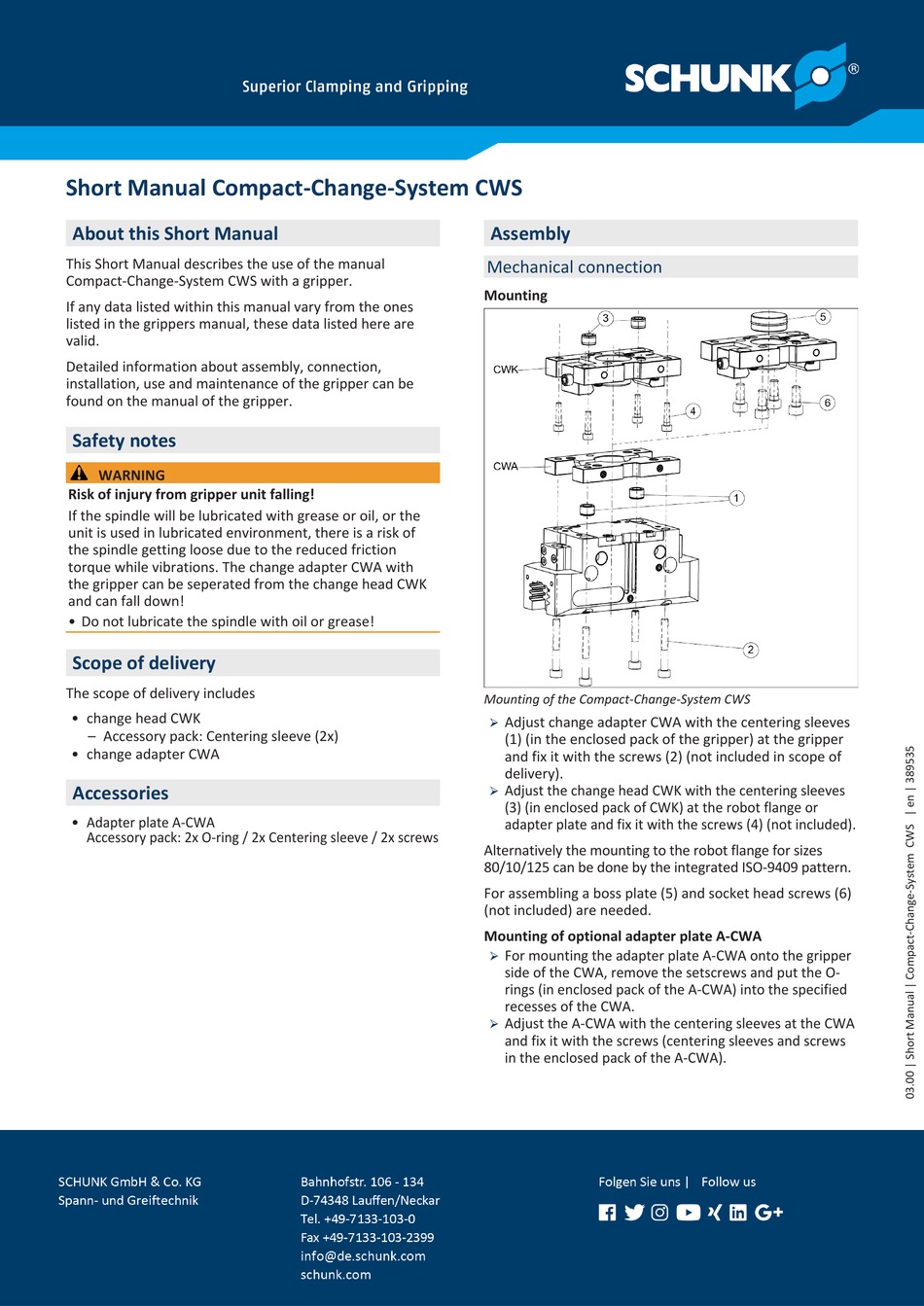

Mounting of the Compact-Change-System CWS
Adjust change adapter CWA with the centering sleeves
Ø
(1) (in the enclosed pack of the gripper) at the gripper
and fix it with the screws (2) (not included in scope of
delivery).
Adjust the change head CWK with the centering sleeves
Ø
(3) (in enclosed pack of CWK) at the robot flange or
adapter plate and fix it with the screws (4) (not included).
Alternatively the mounting to the robot flange for sizes
80/10/125 can be done by the integrated ISO-9409 pattern.
For assembling a boss plate (5) and socket head screws (6)
(not included) are needed.
Mounting of optional adapter plate A-CWA
For mounting the adapter plate A-CWA onto the gripper
Ø
side of the CWA, remove the setscrews and put the O-
rings (in enclosed pack of the A-CWA) into the specified
recesses of the CWA.
Adjust the A-CWA with the centering sleeves at the CWA
Ø
and fix it with the screws (centering sleeves and screws
in the enclosed pack of the A-CWA).
