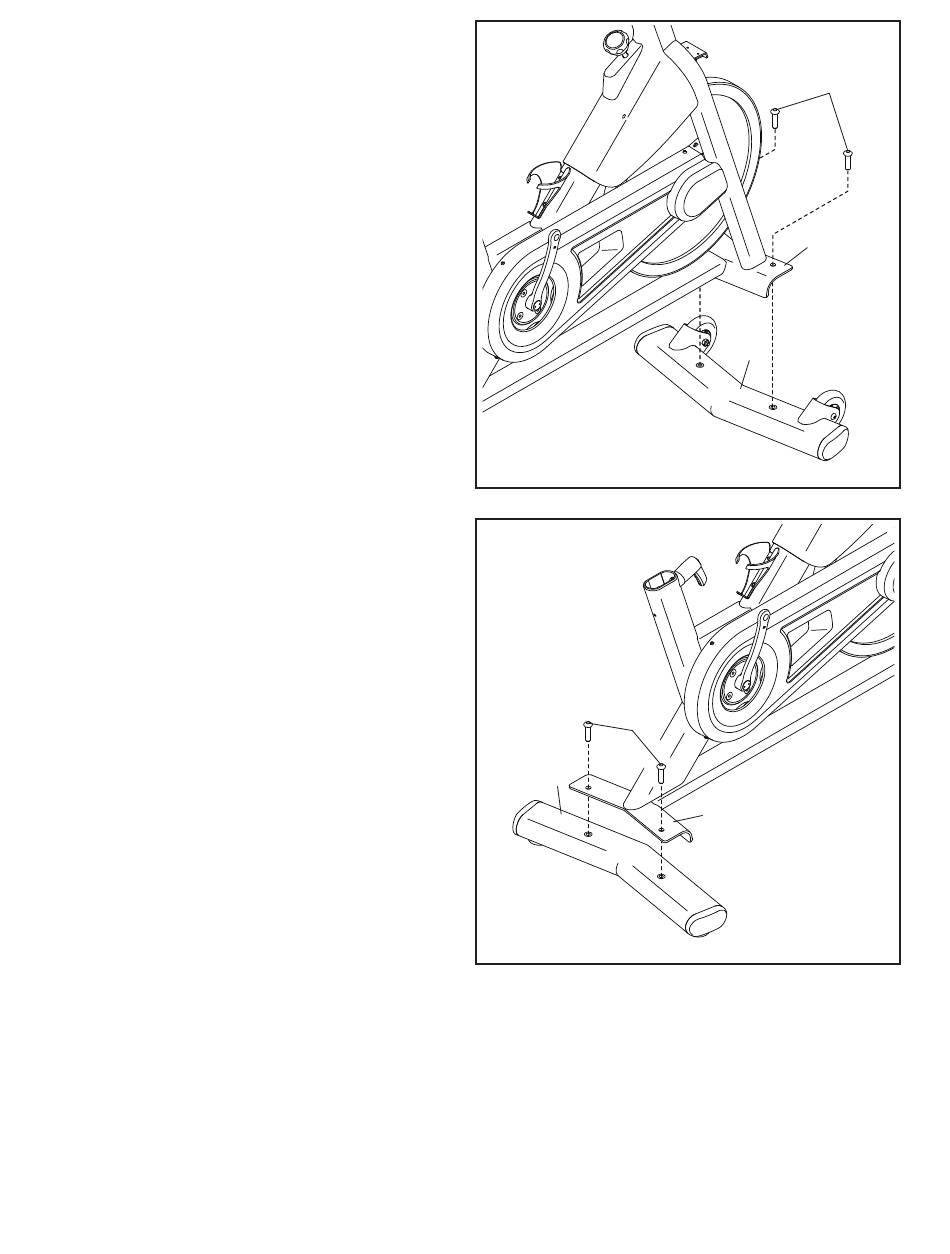

2. If there are shipping tubes (not shown) attached
to the front and rear of the Frame (1), remove
and discard the shipping tubes and the hardware
attaching them.
Orient the Front Stabilizer (2) as shown, and
attach it to the Frame (1) with two M10 x 25mm
Screws (69).
3. Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 25mm Screws (69).
2
3
69
3
7
69
1
2
1
