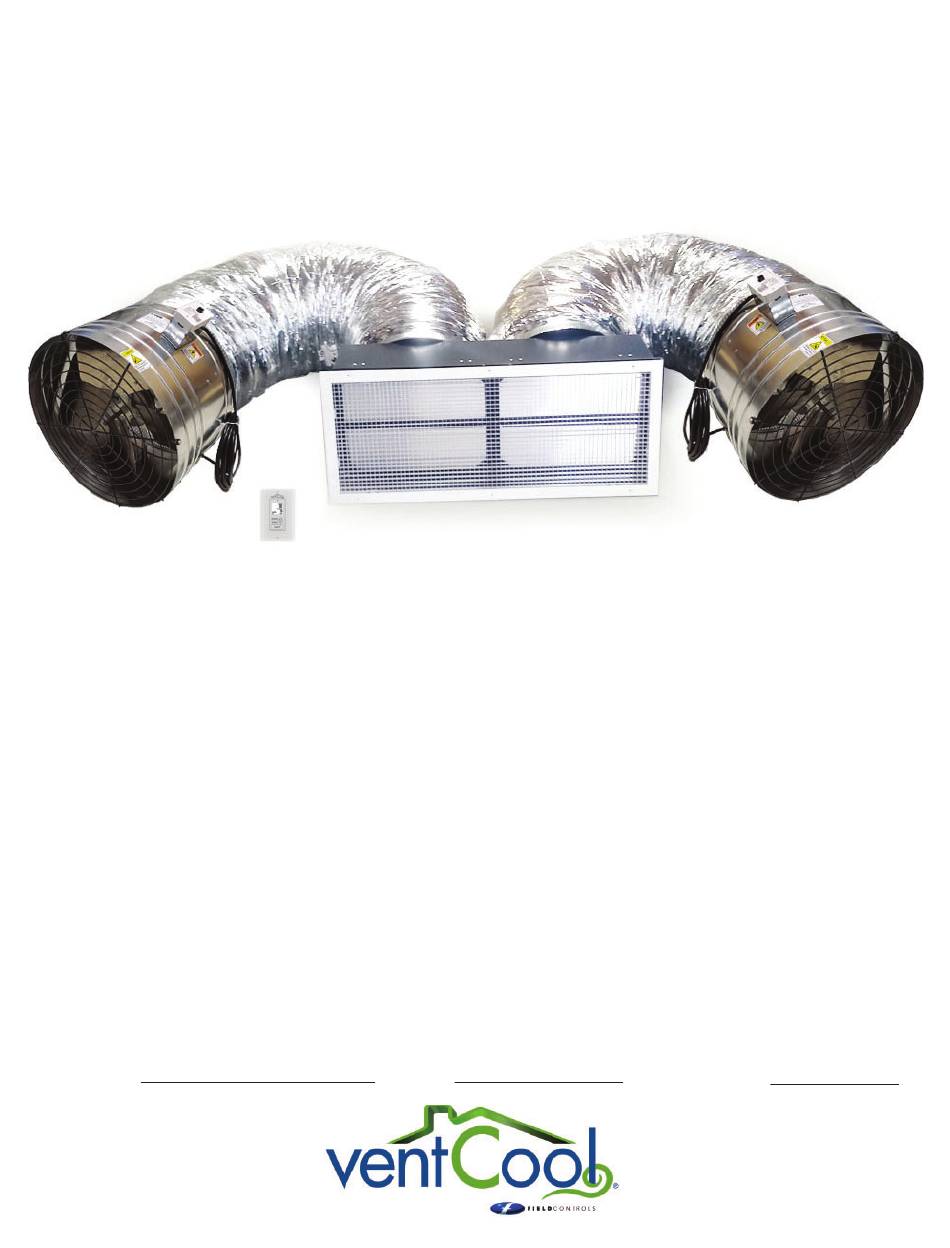

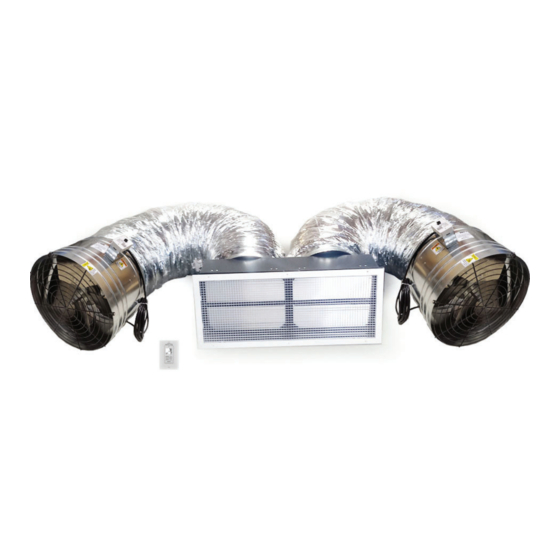

ITEMS INCLUDED:
•
(2) Fan Assembly with steel support straps, hardware and 20 foot power cord
•
(2) Duct Support Straps & hardware
•
(2) Acoustic Flex Duct, 7 foot length with collars
•
Gravity Damper Assembly
•
"Eggcrate" style Inlet Grille (white) with mounting screws
•
Wall Mount Controls with 4-Speed On/Off Switch, 8-hour Electronic Timer
and white Decora duplex wall plate
•
Wall Mount WTT Controls (ON/OFF, 2 Speed and 12-hour Timer), White Decora wall
plate and 50 foot cable
This device MUST be installed by a qualifi ed agency in accordance with the manufacturer's installation instructions. The defi nition of
a qualifi ed agency is: any individual, fi rm, corporation or company which either in person or through a representative is engaged
in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the
precautions required, and has complied with all the requirements of the authority having jurisdiction.
Installed By:
INSTALLATION MANUAL
VentCool
WHOLE HOUSE FAN SYSTEMS
Please retain these instructions after installation.
Phone:
www.fi eldcontrols.com
®
Tahoe Series
T6.5 MODEL
Installation Date:
P/N 780104100 07/20 Rev B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Field Controls VentCool Tahoe Series
Summary of Contents for Field Controls VentCool Tahoe Series
- Page 1 INSTALLATION MANUAL ® VentCool Tahoe Series WHOLE HOUSE FAN SYSTEMS T6.5 MODEL ITEMS INCLUDED: • (2) Fan Assembly with steel support straps, hardware and 20 foot power cord • (2) Duct Support Straps & hardware • (2) Acoustic Flex Duct, 7 foot length with collars •...
- Page 2 (THIS PAGE LEFT INTENTIONALLY BLANK) P/N 780104100 07/20 Rev B page 2 of 20...
-
Page 3: Safety Considerations
DO NOT INSTALL DAMAGED EQUIPMENT. If you suspect this fan has been damaged during shipping, contact If you suspect this fan has been damaged during shipping, contact Field Controls technical support by phone at 1.800.742.8368, or email at fi eldtec@fi eldcontrols.com. Field Controls technical support by phone at 1.800.742.8368, or email at fi eldtec@fi eldcontrols.com. -
Page 4: Electrical Requirements
All electrical components, whether included with the VentCool system or supplied by others, must be rated for the fan system’s electrical load requirements; please refer to the VentCool Tahoe Series specifi cations table for the electrical load requirements of the specifi c model to be installed. -
Page 5: Ventilation Requirements
VENTILATION REQUIREMENTS It is very important that the attic be suffi ciently ventilated for the fan system to operate properly. Without adequate ventilation, hot air exhausted from the home cannot easily escape from the attic, which creates back-pressure that will substantially reduce the fan’s performance. Operating this fan in an attic with less net free ventilation area than recommended will decrease its airfl ow and energy effi ciency. - Page 6 WHERE TO LOCATE THIS FAN The best location for this fan is determined by an understanding of its theory of operation: As a home heats up during the day, a large amount of heat is retained in its structure and contents.
- Page 7 INSTALLATION: GRAVITY DAMPER GRAVITY DAMPER ORIENTATION NOTE The ideal orientation of unit’s gravity damper is in a level position. If necessary, however, the damper can be in- stalled at a slight angle. TIP: before beginning the installation, make sure that the fan assembly is undamaged, and that the fan blade rotates freely.
- Page 8 Make sure that the exact location chosen for the rough opening will allow installation of the eggcrate inlet grille, and will not interfere with any lighting fi xtures, smoke alarms, or other objects installed in the ceiling. 5. Remove any insulation from the area of the exact chosen location, and make sure that no wiring, plumbing, bracing or other building elements will interfere with the damper...
- Page 9 INSTALLATION: FAN & DUCT NOTES: • The fan assembly must be soundly supported by attachment to structurally sound framing. Provide additional framing with minimum 2-by-4 lumber as needed for fan support. • Each fan assembly should be positioned with at least 24” of free space in front of the fan, for air to be freely blown into the attic by the fan.
- Page 10 All electrical components, whether included with the VentCool system or supplied by others, must be rated for the fan system’s electrical load requirements; please refer to the VentCool Tahoe Series specifi cations for the fan system’s electrical load requirements; please refer to the VentCool Tahoe Series specifi cations table for the electrical load requirements of the specifi c model to be installed.
- Page 11 4. Connect the cable to the wall control (WTT). Plug the cable into the “RED” RJ12 Connector on the back side of WTT. Refer to FIGURE 7 and DIAGRAM 1 for cable connections. 5. Attach the wall control (WTT) and cover plate to the plastic retrofi t box (refer to FIGURE 8). FIGURE 8 - ATTACH WALL FIGURE 7 - PLUG CABLE TO WALL CONTROL CONTROL AND COVER PLATE...
- Page 12 DIAGRAM 1: T6.5 2 SPEED WALL CONTROL (WTT) AND FAN MOTOR CONTROL (FC3JF) DIAGRAM 2: T6.5 MODEL FAN MOTOR WIRING (TYPICAL FOR BOTH FAN ASSEMBLIES) P/N 780104100 07/20 Rev B page 12 of 20...
-
Page 13: Operation
FIGURE 10 : STANDARD WALL CONTROL SYSTEM (SPEED TEMPERATURE OR TIME) OPERATION Before starting this fan for the fi rst time, verify that: Before starting this fan for the fi rst time, verify that: • • All wiring and connection have been made according to this manual and all applicable wiring codes and All wiring and connection have been made according to this manual and all applicable wiring codes and standards. -
Page 14: Temperature Control Mode
Switching wall control between Temperature and Timer Control Modes: Switching wall control between Temperature and Timer Control Modes: 1. Switch wall control to Temperature Control from Timer Control mode: DOWN ARROW button to select TEMPERATURE CONTROL. TEMPERATURE CONTROL. a. Press MODE MODE button on WTT then press DOWN ARROW 2. -
Page 15: Important Operating Tips
Adjusting the Timer Setting: Adjusting the Timer Setting: Press ARROW UP ARROW UP or ARROW DOWN ARROW DOWN buttons individually to adjust current Timer Interval Timer Interval set- and hold the ting. Note: If fan is operating, the new Timer Interval imer Interval setting adjustment is temporary. -
Page 16: Maintenance And Troubleshooting
(WTT) device. If the suggestions above do not work, contact Field Controls technical support at 800.742.8368 or by email at fi eldtec@fi eldcontrols.com for further assistance. Technical manuals are available on our website at www.fi eldcontrols.com. -
Page 17: Specifications
SPECIFICATIONS* 3 (OFF/LOW/HIGH) - 2 Speed Motors Speed Settings: Gravity Damper Rough Opening Dimensions: 14.25 inches W x 36.25 inches L Grille Construction: Aluminum Cube Core, Steel frame with White Powder Coat Fan Diameter: 2 - 18.75 inch sections 2 - 7 ft sections Duct Length: 2 x 16 inches Duct Diameter:... - Page 18 Optional Upgrade Components for Controlling your Ventcool Summit Series Whole House Fan (Generation 4): Optional Upgrade Components for Controlling your Ventcool Summit Series Whole House Fan (Generation 4): Contact Field Controls Sales team for purchasing any of the following optional Upgrade components. These new products will be available in 2021.
- Page 19 P/N 780800201, Rev C P/N 780104100 07/20 Rev B page 19 of 20...
-
Page 20: Warranty
This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) WARRANTY WARRANTY For warranty information about this or any Field Controls product, visit: For warranty information about this or any Field Controls product, visit: www.fi eldcontrols.com/ventCool...
