DETAIL "A"
Sieve Bed Tubing
Sieve Bed
Regulator
Adjustable
Clamp
Reinforced Tubing attaches
HERE (not shown)
Tie-Wraps
(not shown)
NOTE: The adjustable clamp hanger is not shown. It is located behind the product tank and is
attached to the sound box.
DETAIL "B"
NOTE: Depending on the date of manufacture, the unit will be equipped with one of three
configurations:
•Rectangular PE valve assembly and new regulator (Detail "A").
•Circular PE valve assembly and old regulator (Detail "B).
•Circular PE valve assembly and new regulator (Detail "C").

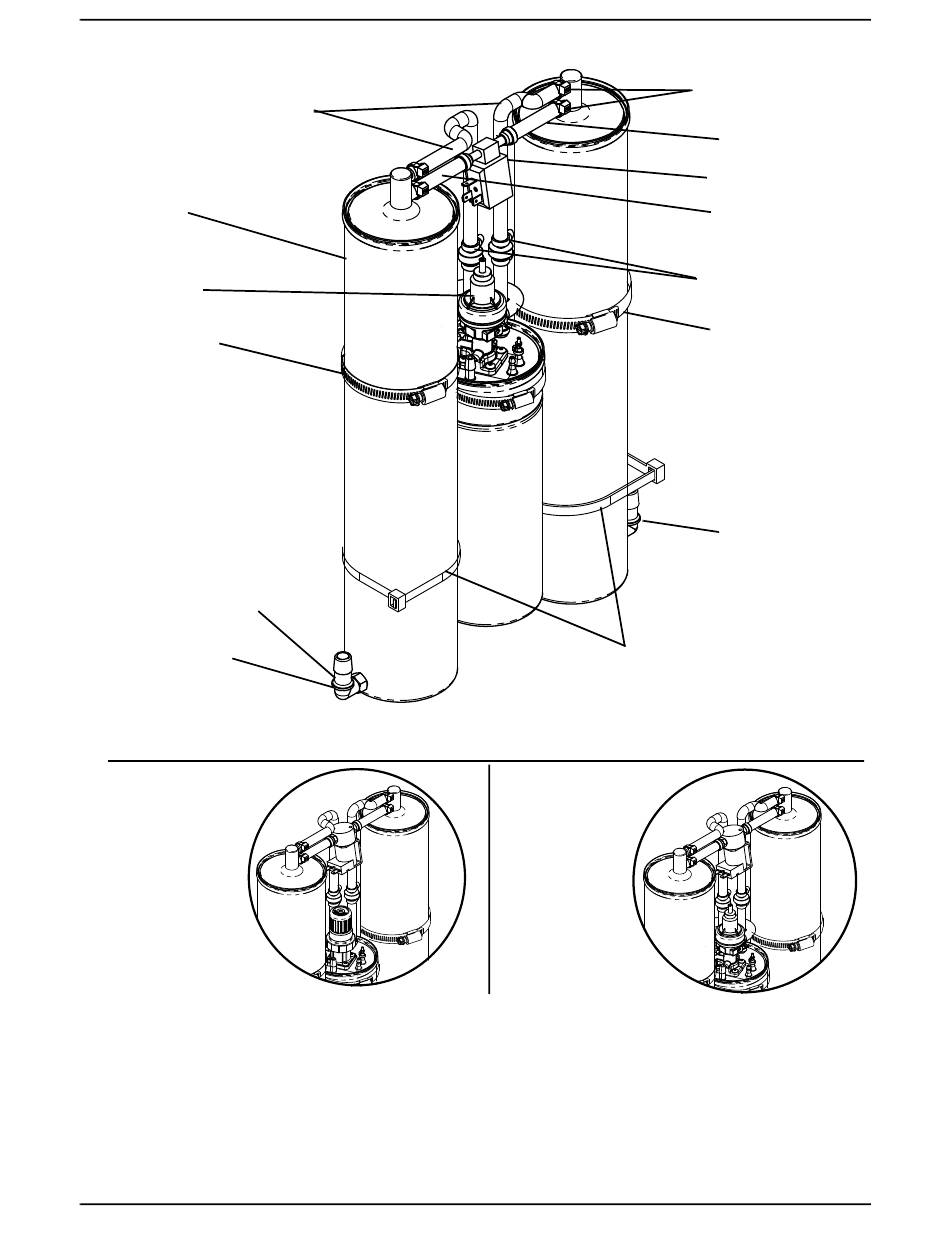

FIGURE 9.1 Replacing Sieve Beds - 5 and 9 Liter models
Part No 1118396
Large
Tie-Wraps
DETAIL "C"
41
SECTION 9—SIEVE BEDS
Tie-Wraps
PE Valve Tubing
PE Valve Assembly
PE Valve Tubing
Tie-Wraps
Adjustable
Clamp
Tie-Wraps
(not shown)
®
Platinum
Oxygen
