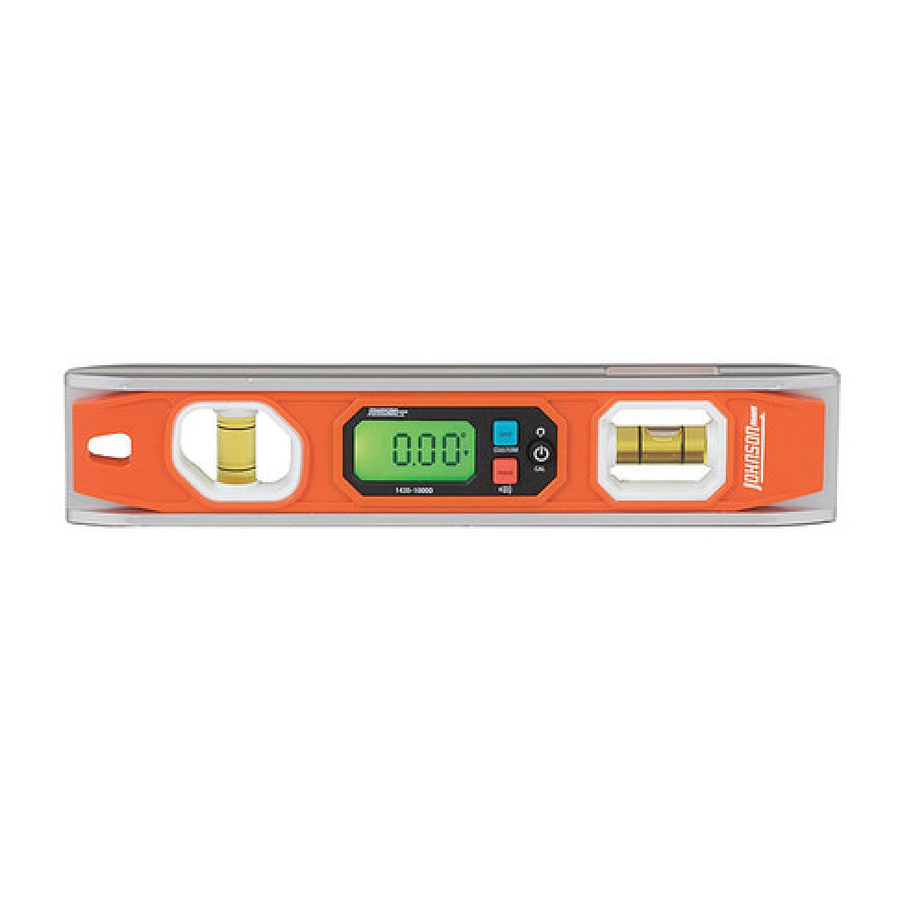

Johnson Level & Tool 1435-1000D Operator's Manual

Thank you for purchasing this Johnson digital torpedo
level. This robust level is designed to provide years of
simple, reliable operation around your jobsite.
Key Features:
• Backlit LCD
• IP65 construction - dustproof and waterproof
• Sub-display for showing reference angles
• Strong rare earth magnets and V-groove top edge
MODULE OVERVIEW
UNITS (2)
LEVEL INDICATORS (2)
DEGREES / PERCENT (2)
HOLD INDICATOR (2)
SUB DISPLAY
INSERTING BATTERIES
1. Remove the battery door by
using a #2 Phillips screwdriver to
rotate the battery door retaining
screw counterclockwise.
2. Insert 1 x CR2032 battery
positive side up, as indicated on
the tool and shown to the right.
3. Replace the battery door and
gently tighten the battery door
retaining screw.
OPERATING THE LEVEL
1. Power on the level by pressing
2. Press to toggle between degrees, percent, in/ft, mm/m, 22.5°
and 45° modes.
3. Set the volume level by pressing and holding
cycle through high/low/off.
4. Enable the backlight by pressing
Press again to switch from low to high backlight.
5. To set a custom angle mode to replace the 22.5°/45° modes,
enable either the 22.5° or 45° mode, then press and hold
6. The sub-display digits will flash, indicating they can be changed.
1435-1000D Operator's Manual
BATTERY INDICATOR
.
. The level will
while the level is powered on.
BUTTON OVERVIEW
MAIN DISPLAY
POWER: While off, press to power on or hold to
enter calibration mode. While on, press to enable
the backlight or hold to power off.
UNIT: Press while on to cycle through the
different operating units. Hold in 22.5°/45° mode
to enter custom setpoints.
HOLD: Press to enable hold mode. Press again
to transfer the hold measurement to the sub-
display. Hold to toggle volume high/low/off.
TWO-POINT CALIBRATION
1. With power off, hold
2. Position level upright with the LCD facing you and press
store the first calibration point. The level will show "CAL2".
3. Rotate the level 180° so that it's still upright but with the
LCD now facing away from you. Press
calibration point.
4. Calibration is complete, and the level will operate normally.
CAL POSITION 1
7. Press to change the active digit. Press
next digit. The new value will be stored automatically.
8. An alternate single point calibration can be completed by
leveling the torpedo using the vial, and holding
the power is off. This mode is helpful when a flat, stable surface
is not available.
9. If needed, factory reset by holding
.
until the screen shows "CAL1".
to store the second
CAL POSITION 2
to advance to the
and
, and for 10 seconds.
Download this manual at
www.johnsonlevel.com/manuals
