General
The SYSTIMAX 360™ Evolve modular foiled twisted pair (FTP) patch panel is a highly flexible 24- or 48-port,
front or rear accessible patch panel assembly. The panel is available in a straight or angled version. When
properly grounded and installed with HGS620 outlets, modular patch cords, and cables, it is an integral part of an
FTP connectivity system. The panel mounts in a standard 19-inch (483 mm) equipment rack with universal hole
spacing and incorporates lugs for panel grounding.
Ordering information is listed below:
Material ID
760150144
FTP Evolve 24-port flat panel
760151498
FTP Evolve 48-port flat panel
760151290
FTP Evolve 24-port angled panel
760151746
FTP Evolve 48-port angled panel
The FTP Evolve panel is available iPatch
®
see 860513491 iPatch
SYSTIMAX 360
How to Contact Us
•
To find out more about CommScope
•
For technical assistance:
-
Within the United States, contact your local account representative or technical support at
1-800-344-0223. Outside the United States, contact your local account representative or
Authorized Business Partner.
-
Within the United States, report any missing/damaged parts or any other issues to
CommScope Customer Claims at 1-866-539-2795. Outside the United States, contact your
local account representative or Authorized Business Partner.
www.commscope.com
™
FTP Evolve Panel Instructions
Description
®
ready. For instructions on using the panel in an iPatch application,
Ready Upgrade Module for SYSTIMAX 360 Panels.
™

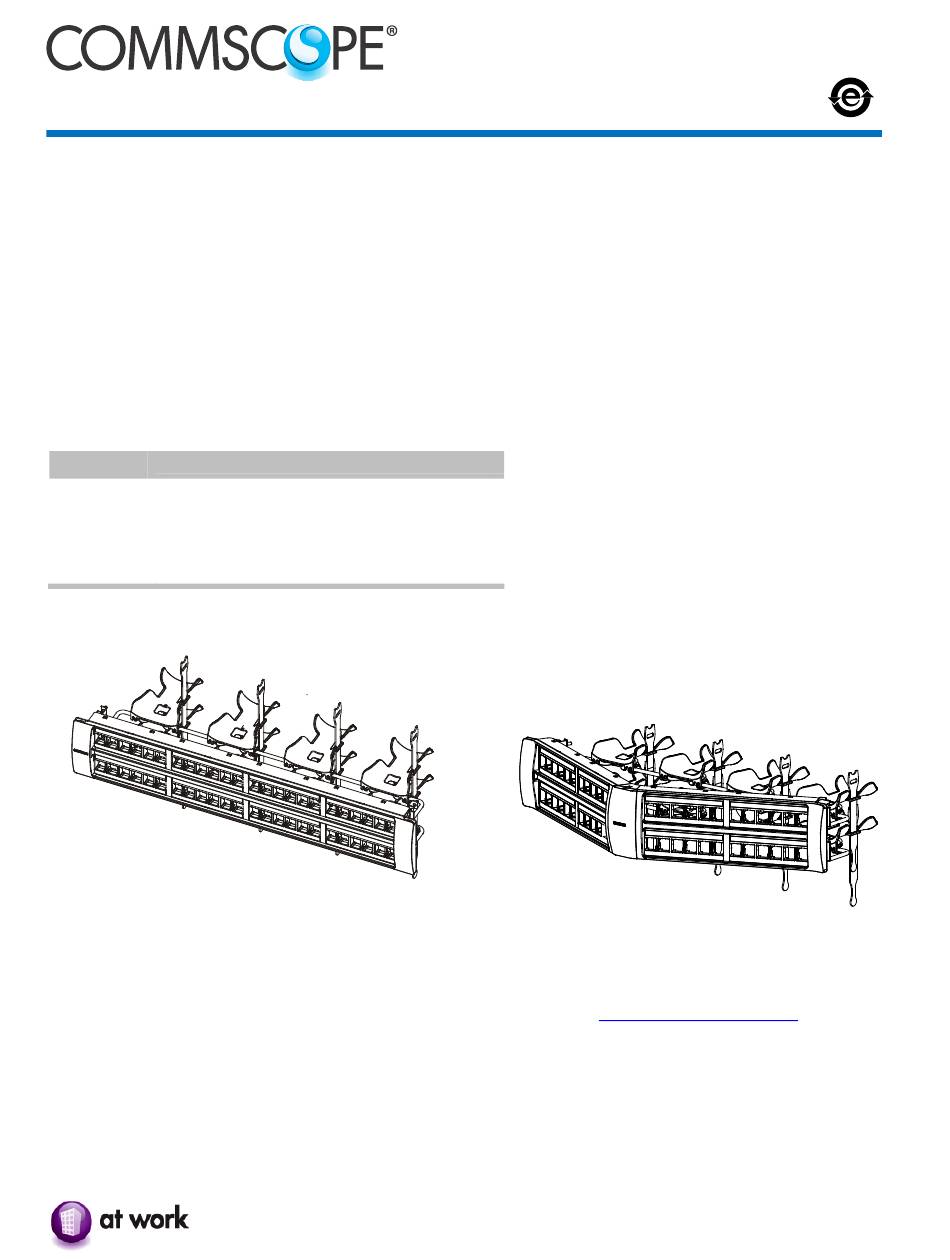

FTP Evolve 48-Port Flat Panel and 48-Port Angled Panel
®
products, visit us on the web at
© 2012 CommScope, Inc. All rights reserved
Instruction Sheet 860509975
Issue 2, December 2012
http://www.commscope.com/
Page 1 of 5
