Limitations - Guardian Fall Protection EcoAnchor Instruction Manual

Restraint: EcoAnchor may be used in Restraint applications. Restraint systems prevent workers
from reaching the leading edge of a fall hazard. Always account for fully deployed length of
lanyard/SRL. Structure must withstand loads applied in the directions permitted by the system of
at least 1,000 lbs. No free fall is permitted. Restraint systems may only be used on surfaces with
slopes up to 4/12 (vertical/horizontal). Applicable D-rings: Dorsal, Chest, Side, Shoulder.
Work Positioning: EcoAnchor may be used in Work Positioning applications. Work Positioning
systems allow a worker to be supported while in suspension and work freely with both hands.
Structure must withstand loads applied in the directions permitted by the system of at least
3,000 lbs. Maximum allowable free fall is 2'. Applicable D-rings: Side, Shoulder.
(including all clothing, tools, and equipment) is 130-220 lbs.

Limitations

Fall Clearance: There must be sufficient
clearance below the anchorage connector
to arrest a fall before the user strikes the
ground or an obstruction. When calculating
fall clearance, account for a MINIMUM 3'
safety factor, deceleration distance, user
height, length of lanyard/SRL, and all other
applicable factors.

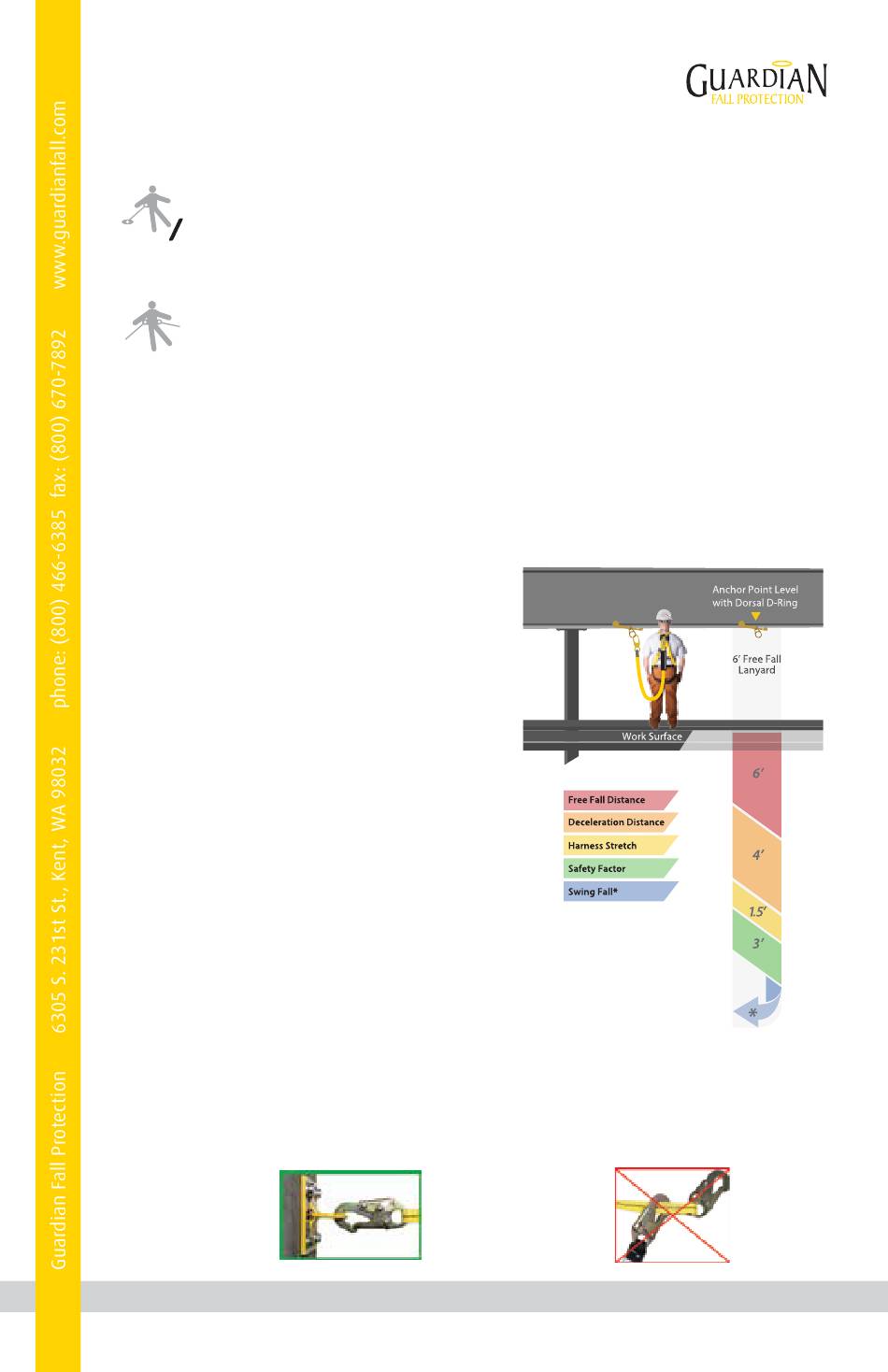

Diagram shown is an example fall
clearance calculation ONLY.
Swing Falls: Prior to installation or use, make
considerations for eliminating or minimizing
all swing fall hazards. Swing falls occur when
the anchor is not directly above the location
where a fall occurs. Always work as close to in
line with the anchor point as possible. Swing
falls significantly increase the likelihood of
serious injury or death in the event of a fall.
Compatibility: When making connections with EcoAnchor, eliminate all possibility of roll-out. Roll-out occurs
when interference between a hook and the attachment point causes the hook gate to unintentionally open
and release. All connections must be selected and deemed compatible with EcoAnchor by a Competent
Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs.
See the following for examples of compatible/incompatible connections:
Connector
closed and
locked to
D-ring. OK.
For all applications: worker weight capacity range
Fall clearance calculation shown based on standing
worker falling directly in-line with anchor point.
Always consider potential swing fall and other
hazards when calculating fall clearance.
*Eliminate Swing Fall whenever
possible! If Swing Fall exists,
always account for additional
fall clearance.
Connector
to integral
lanyard.
NO.
2
