KINO-KX SBC
KINO-KX CPU Card
MODEL:
MODEL:
KINO-KX
KINO-KX Series
Mini-ITX SBC Supports 16nm Zhaoxin KX-U6580/KXU6780A (70W)
On-board Processor with PCIe Mini, VGA, DVI-I, USB 3.2 Gen 1,
SATA 6Gb/s, COM, Audio and RoHS
User Manual
Page I
Rev. 1.00 - February 18, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KINO-KX Series and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology KINO-KX Series

Summary of Contents for IEI Technology KINO-KX Series

  • Page 1 KINO-KX SBC KINO-KX CPU Card MODEL: MODEL: KINO-KX KINO-KX Series Mini-ITX SBC Supports 16nm Zhaoxin KX-U6580/KXU6780A (70W) On-board Processor with PCIe Mini, VGA, DVI-I, USB 3.2 Gen 1, SATA 6Gb/s, COM, Audio and RoHS User Manual Page I Rev. 1.00 - February 18, 2021...
  • Page 2 KINO-KX SBC Revision Date Version Changes February 18, 2021 1.00 Initial release Page II...
  • Page 3 KINO-KX SBC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 KINO-KX SBC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 5: Table Of Contents

    KINO-KX SBC Table of Contents 1 INTRODUCTION ......................1 1.1 I ......................2 NTRODUCTION 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 C ......................4 ONNECTORS 1.5 D ....................... 5 IMENSIONS 1.6 D ........................ 6 1.7 T ..................
  • Page 6 KINO-KX SBC 3.2.11 SATA 6Gb/s Drive Connectors ............... 29 3.2.12 SPI Flash Connector ..................30 3.2.13 TPM Connector ....................31 3.3 E ......... 32 XTERNAL ERIPHERAL NTERFACE ONNECTOR ANEL 3.3.1 Audio Jacks ...................... 33 3.3.2 Keyboard/Mouse and USB 2.0 Combo Connector .......... 34 3.3.3 LAN and USB 3.2 Gen 1 Combo Connector ............
  • Page 7 KINO-KX SBC 5.3.2 ACPI Settings ....................57 5.3.3 RTC Wake Settings ................... 58 5.3.4 F81866 Super IO Configuration ..............59 5.3.4.1 Serial Port n Configuration ............... 59 5.3.5 Hardware Monitor ................... 60 5.3.5.1 Smart Fan Function ................... 61 5.3.5.1.1 CPU_FAN1/SYS_FAN1 ..............62 5.3.6 F81216 Sec.
  • Page 8 KINO-KX SBC F.1 R HS II D (2015/863/EU) ................ 97 IRECTIVE F.2 C HS ......................98 HINA Page VIII...
  • Page 9 KINO-KX SBC List of Figures Figure 1-1: KINO-KX ........................2 Figure 1-2: Connectors ........................4 Figure 1-3: Dimensions (mm) ......................5 Figure 1-4: Data Flow Diagram ...................... 6 Figure 3-1: Connector and Jumper Locations ................14 Figure 3-2: DC-IN Power Connector Location ................17 Figure 3-3: ATX Power Connector Pinout Locations ..............
  • Page 10 KINO-KX SBC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: Technical Specifications ....................8 Table 3-1: Peripheral Interface Connectors ................15 Table 3-2: Rear Panel Connectors ....................16 Table 3-3: DC-IN Power Connector Pinouts ................17 Table 3-4: ATX Power Connector Pinouts ................. 18 Table 3-5: Battery Connector Pinouts ..................
  • Page 11 KINO-KX SBC List of BIOS Menus BIOS Menu 1: Main ........................54 BIOS Menu 2: Advanced ......................55 BIOS Menu 3: Trusted Computing ....................56 BIOS Menu 4: ACPI Settings ....................... 57 BIOS Menu 5: RTC Wake Settings ....................58 BIOS Menu 6: F81866 Super IO Configuration ................

  • Page 13: Introduction

    KINO-KX SBC Chapter Introduction Page 1...

  • Page 14: Introduction

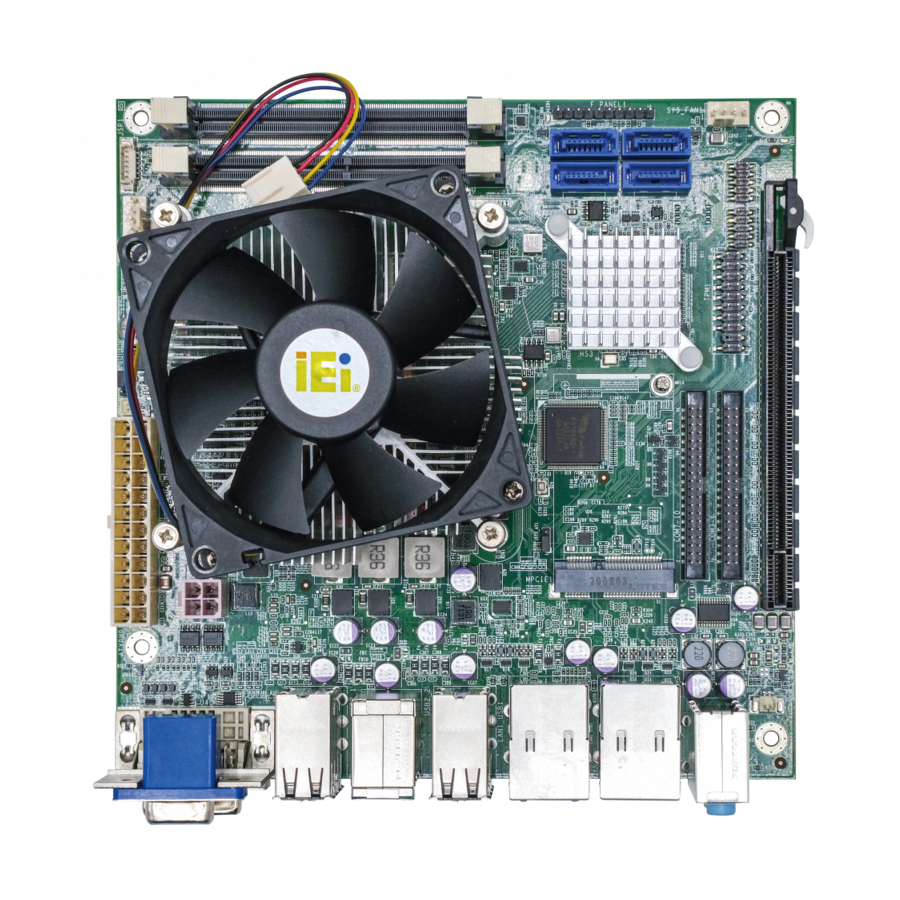

    1.1 Introduction Figure 1-1: KINO-KX The KINO-KX series is a Mini-ITX form factor single bard computer. It has an on-board Zhaoxin KX-U6780A/KX-U6580 processor, and supports two 260-pin 2666 MHz dual-channel DDR4 SO-DIMM slots with up to 64.0 GB of memory.

  • Page 15: Model Variations

    KINO-KX SBC 1.2 Model Variations The model variations of the KINO-KX series are listed below. Model No. Processor Zhaoxin KX-U6580 KINO-KX-U6580 (8-core, 8 MB cache, 2.5 GHz, 70W) Zhaoxin KX-U6780A KINO-KX-U6780A* (8-core, 8 MB cache, 2.7 GHz, 70W) *By order production, MOQ: 100 Table 1-1: Model Variations 1.3 Features...

  • Page 16: Connectors

    KINO-KX SBC 1.4 Connectors The connectors on the KINO-KX are shown in the figures below. Figure 1-2: Connectors Page 4...

  • Page 17: Dimensions

    KINO-KX SBC 1.5 Dimensions The dimensions of the two models are listed below: Figure 1-3: Dimensions (mm) Page 5...

  • Page 18: Data Flow

    KINO-KX SBC 1.6 Data Flow Figure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 6...

  • Page 19: Technical Specifications

    KINO-KX SBC 1.7 Technical Specifications KINO-KX technical specifications are listed below. Specification KINO-KX Form Factor Mini-ITX Zhaoxin KX-U6580 (8-core, 8 MB cache, 2.5 GHz, 70W) Processor Zhaoxin KX-U6780A (8-core, 8 MB cache, 2.7 GHz, 70W) Zhaoxin ZX-200 Chipset AMI UEFI BIOS BIOS Two 260-pin 2666 MHz DDR4 SDRAM SO-DIMM slots Memory...

  • Page 20: Table 1-2: Technical Specifications

    KINO-KX SBC Specification KINO-KX 1 x PS/2 keyboard/mouse connector on rear IO Keyboard/Mouse 1 x TPM connector by 20-pin (2x10) header 4 x SATA 6Gb/s connectors Storage Expansion 1 x Full-size PCIe Mini slot (USB 2.0 + PCIe 2.0 x1 signal) 1 x PCIe x16 slot (with PCIe 3.0 x8 signal) Environmental and Power Specifications Power Supply...

  • Page 21: Unpacking

    KINO-KX SBC Chapter Unpacking Page 9...

  • Page 22: Anti-Static Precautions

    KINO-KX SBC 2.1 Anti-static Precautions WARNING! Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user. Make sure to adhere to the following guidelines:  Wear an anti-static wristband: Wearing an anti-static wristband can prevent electrostatic discharge.

  • Page 23: Packing List

    KINO-KX SBC 2.3 Packing List NOTE: If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the KINO-KX was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.

  • Page 24: Optional Items

    KINO-KX SBC 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image Quad RS-232 cable (w/o bracket), 300mm, p=2.0 (P/N: 32200-025401-RS) Quad RS-232 cable (w/o bracket), 300mm, p=2.0 (P/N: 32205-002000-100-RS) RS-232 cable, 200mm, p=2.0 (P/N: 32205-002700-200-RS) Infineon TPM module, 20-pin, firmware v4.4 (P/N: TPM-IN01-R20)

  • Page 25: Connectors

    KINO-KX SBC Chapter Connectors Page 13...

  • Page 26: Peripheral Interface Connectors

    KINO-KX SBC 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 KINO-KX Layout The figures below show all the connectors and jumpers. Figure 3-1: Connector and Jumper Locations Page 14...

  • Page 27: Peripheral Interface Connectors

    KINO-KX SBC 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label 12 V DC-IN power connector 4-pin Molex CPU12V1 ATX power connector 24-pin connector ATXPWR1 Battery connector 2-pin wafer BAT1 Buzzer connector 2-pin wafer Fan connector, CPU 4-pin wafer...

  • Page 28: External Interface Panel Connectors

    KINO-KX SBC 3.1.3 External Interface Panel Connectors The table below lists the connectors on the external I/O panel. Connector Type Label Audio jacks Audio jack AUDIO1 KB/MS and USB 2.0 connector PS/2 KB/MS & USB 2.0 CON1 Type A combo LAN and USB 3.2 Gen 1 combo RJ-45 &...

  • Page 29: Internal Peripheral Connectors

    KINO-KX SBC 3.2 Internal Peripheral Connectors The section describes all of the connectors on the KINO-KX. 3.2.1 12 V DC-IN Power Connector CN Label: CPU12V1 4-pin Molex, p=4.2 mm CN Type: CN Location: See Figure 3-2 CN Pinouts: See Table 3-3 The connector supports the 12 V power supply.

  • Page 30: Atx Power Connector

    KINO-KX SBC 3.2.2 ATX Power Connector CN Label: ATXPWR1 24-pin connector, p=4.2 mm CN Type: CN Location: See Figure 3-3 CN Pinouts: See Table 3-4 The ATX power connector connects to an ATX power supply. Figure 3-3: ATX Power Connector Pinout Locations Description Description +3.3 V...

  • Page 31: Battery Connector

    KINO-KX SBC 3.2.3 Battery Connector CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. NOTE: It is recommended to attach the RTC battery onto the system chassis in which the KINO-KX is installed.

  • Page 32: Buzzer Connector

    KINO-KX SBC Description RTC Battery+ Table 3-5: Battery Connector Pinouts 3.2.4 Buzzer Connector CN Label: CN Type: 2-pin wafer, p=1.25 mm CN Location: See Figure 3-5 CN Pinouts: See Table 3-6 The buzzer connector can be connected with a buzzer. Figure 3-5: Buzzer Connector Location Description Buzzer...

  • Page 33: Fan Connectors

    KINO-KX SBC NOTE: If you cannot find a good place to put a buzzer on the KINO-KX, it is recommended to attach the buzzer onto the system chassis in which the KINO-KX is installed. 3.2.5 Fan Connectors CN Label: CPU_FAN1, SYS_FAN1 CN Type: 4-pin wafer, p=2.54 mm CN Location:...

  • Page 34: Front Panel Connector

    KINO-KX SBC 3.2.6 Front Panel Connector CN Label: F_PANEL1 10-pin header, p=2.54 mm CN Type: CN Location: See Figure 3-7 CN Pinouts: See Table 3-8 The front panel connector connects to the indicator LEDs and buttons on the system front panel.

  • Page 35: Pcie X16 Slot

    KINO-KX SBC 3.2.7 PCIe x16 Slot CN Label: PCIEX16 PCIe x16 slot CN Type: CN Location: See Figure 3-8 The PCIe x16 slot supports PCIe x8 expansion cards. Figure 3-8: PCIe x16 Slot Location Page 23...

  • Page 36: Pcie Mini Slot

    KINO-KX SBC 3.2.8 PCIe Mini Slot CN Label: MPCIE1 Full-size PCIe Mini slot CN Type: CN Location: See Figure 3-9 CN Pinouts: See Table 3-9 The PCIe Mini slot enables a PCIe Mini expansion module to be connected to the board. Figure 3-9: PCIe Mini Slot Location Description Description...

  • Page 37: Serial Port Connectors (Com1, Com2)

    KINO-KX SBC Description Description SMBCLK PCIE_TXN1 SMBDATA PCIE_TXN1 USBD7- USBD7+ +3.3V +3.3V 1.5 V +3.3V Table 3-9: PCIe Mini Slot Pinouts 3.2.9 RS-232 Serial Port Connectors (COM1, COM2) CN Label: CN1, CN2 CN Type: 10-pin header, p=2.00 mm CN Location: See Figure 3-10 CN Pinouts: See Table 3-10 and Table 3-11...

  • Page 38: Table 3-10: Rs-232 Serial Port Connector (Cn1) Pinouts

    KINO-KX SBC Description Description DCD_COM1 DSR_COM1 SIN_COM1 RTS_COM1 SOUT_COM1 CTS_COM1 DTR_COM1 RI_COM1 Table 3-10: RS-232 Serial Port Connector (CN1) Pinouts Description Description DCD_COM2 DSR_COM2 SIN_COM2 RTS_COM2 SOUT_COM2 CTS_COM2 DTR_COM2 RI_COM2 Table 3-11: RS-232 Serial Port Connector (CN2) Pinouts Page 26...

  • Page 39: Serial Port Connector (Com3 ~ Com10)

    KINO-KX SBC 3.2.10 RS-232 Serial Port Connector (COM3 ~ COM10) CN Label: COM3-6, COM7-10 40-pin box header, p=2.00 mm CN Type: CN Location: See Figure 3-11 CN Pinouts: See Table 3-12 and Table 3-13 Each connector provides RS-232 connections for four serial ports. Figure 3-11: Serial Port Connector Pinout Locations Description Description...

  • Page 40: Table 3-12: Rs-232 Serial Port Connector (Com3-6) Pinouts

    KINO-KX SBC Description Description DCD_COM6 DSR_COM6 SIN_COM6 RTS_COM6 SOUT_COM6 CTS_COM6 DTR_COM6 RI_COM6 Table 3-12: RS-232 Serial Port Connector (COM3-6) Pinouts Description Description DCD_COM7 DSR_COM7 SIN_COM7 RTS_COM7 SOUT_COM7 CTS_COM7 DTR_COM7 RI_COM7 DCD_COM8 DSR_COM8 SIN_COM8 RTS_COM8 SOUT_COM8 CTS_COM8 DTR_COM8 RI_COM8 DCD_COM9 DSR_COM9 SIN_COM9 RTS_COM9 SOUT_COM9...

  • Page 41: Sata 6Gb/S Drive Connectors

    KINO-KX SBC 3.2.11 SATA 6Gb/s Drive Connectors CN Label: SATA0, SATA1, SATA2, SATA3 CN Type: 7-pin SATA connector CN Location: See Figure 3-12 CN Pinouts: See Table 3-14 Each SATA 6Gb/s drive connector is connected to a SATA 6Gb/s drive. The SATA 6Gb/s drive transfers data at speeds as high as 6Gb/s.

  • Page 42: Spi Flash Connector

    KINO-KX SBC 3.2.12 SPI Flash Connector CN Label: JSP1 6-pin wafer, p=1.25 mm CN Type: CN Location: See Figure 3-13 CN Pinouts: See Table 3-15 The 6-pin SPI Flash connector is used to flash the BIOS. Figure 3-13: SPI Flash Connector Location Description SPIVCC SPI_CS#...

  • Page 43: Tpm Connector

    KINO-KX SBC 3.2.13 TPM Connector CN Label: TPM1 CN Type: 20-pin header, p=2.54 mm CN Location: See Figure 3-14 CN Pinouts: See Table 3-16 The Trusted Platform Module (TPM) connector secures the system on bootup. Figure 3-14: TPM Connector Location Description Description LCLK...

  • Page 44: External Peripheral Interface Connector Panel

    KINO-KX SBC 3.3 External Peripheral Interface Connector Panel Figure 3-15 shows the KINO-KX external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following:  3 x Audio jacks (AUDIO1)  1 x KB/MS and USB 2.0 connector (CON1) ...

  • Page 45: Audio Jacks

    KINO-KX SBC 3.3.1 Audio Jacks CN Label: AUDIO1 Audio jack CN Type: CN Location: See Figure 3-15 The audio jacks connect to external audio devices.  Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio devices. ...

  • Page 46: Keyboard/Mouse And Usb 2.0 Combo Connector

    KINO-KX SBC 3.3.2 Keyboard/Mouse and USB 2.0 Combo Connector CN Label: CON1 PS/2 and USB 2.0 Type A connector CN Type: CN Location: See Figure 3-15 CN Pinouts: See Table 3-17 and Table 3-18 The USB 2.0 connector can be connected to a USB device. Description Data- Data+...

  • Page 47: Lan And Usb 3.2 Gen 1 Combo Connector

    KINO-KX SBC 3.3.3 LAN and USB 3.2 Gen 1 Combo Connector CN Label: LAN1_USB1, LAN2_USB2 RJ-45 and USB 3.2 Type A combo CN Type: CN Location: See Figure 3-15 CN Pinouts: See Table 3-19 and Table 3-20 There are four external USB 3.2 Gen 1 connectors on the KINO-KX. Description Description USB_DATA-...

  • Page 48: Usb 2.0 Connectors

    KINO-KX SBC Figure 3-17: Ethernet Connector Description Description on: linked off: 10 Mb/s blinking: data is being sent/received green: 100 Mb/s orange: 1000 Mb/s Table 3-21: Connector LEDs 3.3.4 USB 2.0 Connectors CN Label: USB2_1, USB2_2 CN Type: USB 2.0 Type A CN Location: See Figure 3-15 CN Pinouts:...

  • Page 49: Vga And Dvi-I Connectors

    KINO-KX SBC 3.3.5 VGA and DVI-I Connectors CN Label: 15-pin VGA, 24-pin DVI-I CN Type: CN Location: See Figure 3-15 CN Pinouts: See Table 3-23 and Table 3-24 The 24-pin Digital Visual Interface (DVI) connector connects to a high-speed, high-resolution digital display. The DVI-I connector supports both digital and analog signals. Description Description DATA2-...

  • Page 50: Figure 3-19: Vga Connector

    KINO-KX SBC The 15-pin VGA connector connects to a monitor that accepts a standard VGA input. Description Description GREEN BLUE VCC5V DDCDATA HSYNC VSYNC DDCCLK Table 3-24: VGA Connector Pinouts Figure 3-19: VGA Connector Page 38...

  • Page 51: Installation

    KINO-KX SBC Chapter Installation Page 39...

  • Page 52: Anti-Static Precautions

    KINO-KX SBC 4.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the KINO-KX may result in permanent damage to the KINO-KX and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-KX.
  • Page 53 KINO-KX SBC WARNING: The installation instructions described in this manual should be carefully followed in order to prevent damage to the components and injury to the user. Before and during the installation please DO the following:  Read the user manual: The user manual provides a complete description of the KINO-KX installation instructions and configuration options.

  • Page 54: So-Dimm Installation

    KINO-KX SBC 4.3 SO-DIMM Installation To install an SO-DIMM, please follow the steps below and refer to Figure 4-1. Figure 4-1: SO-DIMM Installation Step 1: Open the SO-DIMM socket handles. Open the two handles outwards as far as they can. See Figure 4-1. Step 2: Align the SO-DIMM with the socket.

  • Page 55: Pcie Mini Card Installation

    KINO-KX SBC 4.4 PCIe Mini Card Installation To install a PCIe Mini card, please follow the steps below. Step 1: Locate the PCIe Mini card slot. The location of the PCIe Mini card slot is shown in Chapter 3. Step 2: Remove the retention screw.

  • Page 56: Figure 4-3: Insert The Pcie Mini Card Into The Socket At An Angle

    KINO-KX SBC Figure 4-3: Insert the PCIe Mini Card into the Socket at an Angle Step 4: Secure the PCIe Mini card. Secure the PCIe Mini card with the retention screw previously removed (Figure 4-4). Step 0: Figure 4-4: Secure the PCIe Mini Card Page 44...

  • Page 57: System Configuration

    KINO-KX SBC 4.5 System Configuration The system configuration is controlled by buttons, jumpers and switches. The system configuration should be performed before installation. 4.5.1 AT/ATX Mode Select The AT/ATX mode select switch (JATX_AT1) specifies the systems power mode as AT or ATX.

  • Page 58: Clear Cmos

    KINO-KX SBC 4.5.2 Clear CMOS To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more, then move back to the default position. Setting Description Short 1-2 Keep current BIOS setup Short 2-3 Clear BIOS Table 4-2: Clear BIOS Jumper Settings The location of the clear CMOS button (J_CMOS1) is shown in Figure 4-6 Figure 4-6: Clear CMOS Jumper Location...

  • Page 59: Chassis Installation

    KINO-KX SBC 4.6 Chassis Installation 4.6.1 Airflow WARNING: Airflow is critical for keeping components within recommended operating temperatures. The chassis should have fans and vents as necessary to keep things cool. The KINO-KX must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface.

  • Page 60: Figure 4-7: Sata Drive Cable Connection

    KINO-KX SBC Figure 4-7: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive. See Figure 4-7. Step 4: To remove the SATA cable from the SATA connector, press the clip on the connector at the end of the cable.

  • Page 61: Available Drivers

    KINO-KX SBC 4.8 Available Drivers All the drivers for the KINO-KX are available on IEI Resource Download Center (https://download.ieiworld.com). Type KINO-KX and press Enter to find all the relevant software, utilities, and documentation. Figure 4-8: IEI Resource Download Center 4.8.1 Driver Download To download drivers from IEI Resource Download Center, follow the steps below.
  • Page 62 KINO-KX SBC Step 3: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or double click an  individual item to find its driver file and click the file name to download ( NOTE: To install software from the downloaded ISO image file in Windows 10, double-click the ISO file to mount it as a virtual drive to view its content.

  • Page 63: Bios

    KINO-KX SBC Chapter BIOS Page 51...

  • Page 64: Introduction

    KINO-KX SBC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 65: Getting Help

    KINO-KX SBC Function Decrease the numeric value or make changes F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 key Load previous values. F3 key Load optimized defaults F4 key Save changes and Exit BIOS Esc key Main Menu –...

  • Page 66: Main

    KINO-KX SBC The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above. 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.

  • Page 67: Advanced

    KINO-KX SBC 5.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus: WARNING! Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.

  • Page 68: Trusted Computing

    KINO-KX SBC 5.3.1 Trusted Computing Use the Trusted Computing menu (BIOS Menu 3) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced Configuration Enables or Disables BIOS Security Device Support [Disable] support for security...

  • Page 69: Acpi Settings

    KINO-KX SBC 5.3.2 ACPI Settings The ACPI Settings menu (BIOS Menu 4) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI sleep state the system ACPI Sleep State [S3 (Suspend to RAM] will enter when the...

  • Page 70: Rtc Wake Settings

    KINO-KX SBC 5.3.3 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 5) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced RTC Wake Settings Enable or disable System wake on alarm event. When Wake system with Fixed Time [Disabled] enabled, System will...

  • Page 71: F81866 Super Io Configuration

    KINO-KX SBC 5.3.4 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 6) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced F81866 Super IO Configuration Set Parameters of Serial Port 1 (COMA) Super IO Chip...

  • Page 72: Hardware Monitor

    KINO-KX SBC  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disable the serial port Disabled  Enable the serial port Enabled EFAULT 5.3.5 Hardware Monitor The Hardware Monitor menu (BIOS Menu 8) contains the fan configuration submenus and displays operating temperature, fan speeds and system voltages.

  • Page 73: Smart Fan Function

    KINO-KX SBC  Voltages VDDCPU +3.3V VSUSIOMEM 5.3.5.1 Smart Fan Function Use the Smart Fan Function submenu (BIOS Menu 10) to configure fan temperature and speed settings. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced > CPU_FAN1 Setting Smart Fan function >...

  • Page 74: Cpu_Fan1/Sys_Fan1

    KINO-KX SBC 5.3.5.1.1 CPU_FAN1/SYS_FAN1 Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced CPU_FAN1 Setting Smart Fan Mode Select Smart CPU_FAN1 Mode [Automatic Mode] Boundary 1 Boundary 2 Boundary 3 --------------------- : Select Screen Boundary 4 ↑ ↓: Select Item Segment 1 Speed Segment 2 Speed Enter Select...

  • Page 75: F81216 Sec. Super Io Configuration

    KINO-KX SBC 5.3.6 F81216 Sec. Super IO Configuration Use the F81216 Sec. Super IO Configuration menu (BIOS Menu 11) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced F81216SEC Super IO Configuration Select SEC SIO IRQ share mode...

  • Page 76: Serial Port N Configuration

    KINO-KX SBC 5.3.6.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 12) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced Serial Port 7 Configuration Enable or Disable Serial Port (COM) Serial Port [Enabled]...

  • Page 77: Serial Port Console Redirection

    KINO-KX SBC 5.3.7 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 13) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port. Aptio Setup Utility –...
  • Page 78 KINO-KX SBC  Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function.  Disabled the console redirection function Disabled EFAULT  Enabled the console redirection function Enabled The following options are available in the Console Redirection Settings submenu when the Console Redirection option is enabled.
  • Page 79 KINO-KX SBC  Data Bits [8] Use the Data Bits option to specify the number of data bits.  Sets the data bits at 7.  Sets the data bits at 8. EFAULT  Parity [None] Use the Parity option to specify the parity bit that can be sent with the data bits for detecting the transmission errors.

  • Page 80: Cpu Configuration

    KINO-KX SBC 5.3.8 CPU Configuration Use the CPU Configuration menu (BIOS Menu 14) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced CPU Configuration ZHAOXIN KaiXian KX-U6580@2.5GHz Speed (CPU Bus 100MHz * 25): ---------------------- : Select Screen 2500MHz...

  • Page 81: Usb Configuration

    KINO-KX SBC 5.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 15) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support. AUTO option USB Devices: disables legacy support 1 Keyboard...

  • Page 82: Chipset

    KINO-KX SBC 5.4 Chipset Use the Chipset menu (BIOS Menu 16) to access the north bridge and south bridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. Aptio Setup Utility –...

  • Page 83: North Bridge

    KINO-KX SBC 5.4.1 North Bridge Use the North Bridge menu (BIOS Menu 17) to configure the memory settings. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Chipset > DRAM Configuration DRAM Configuration > Video Configuration > PCIE Configuration --------------------- : Select Screen ↑...

  • Page 84: Video Configuration

    KINO-KX SBC 5.4.1.2 Video Configuration The Video Configuration menu (BIOS Menu 19) configures the graphics settings. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Chipset Video Configuration VGA Share Memory [Auto] Dual VGA Enable [Disabled] ---------------------- : Select Screen Primary Graphics Adapter [PCIE &...

  • Page 85: Pcie Configuration

    KINO-KX SBC  Primary Graphics Adapter [PCIE & PCI -> UMA] Use the Primary Graphics Adapter option to select the graphics controller used as the primary boot device. Configuration options are listed below:  PCIE & PCI --> UMA EFAULT ...
  • Page 86 KINO-KX SBC  Reset PCIE When Link Fail [Disabled] Use the Reset PCIE When Link Fail option to configure whether to reset PCI Express device when link fail.  Disabled Do not reset PCI Express device when link fail. EFAULT ...

  • Page 87: South Bridge

    KINO-KX SBC 5.4.2 South Bridge Use the South Bridge menu (BIOS Menu 21) to configure the south bridge chipset. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Chipset South Bridge Select AC power state when power is re-applied Auto Power Button Status [Disabled (ATX)] after a power failure.

  • Page 88: Ioe Setup

    KINO-KX SBC  Power Saving Function(ERP) [Disabled] Use the Power Saving Function BIOS option to enable or disable the power saving function.  Disabled Power saving function is disabled. EFAULT  Power saving function is enabled. It will reduce power Enabled consumption when the system is off.

  • Page 89: Ioe Pcie Ptn Setup

    KINO-KX SBC 5.4.3.1 IOE PCIE PTN Setup Use the IOE PCIE PTN Setup menu (BIOS Menu 23) to configure the FCH configuration. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Chipset IOE PCIE PTN Setup PEEP Cap [Gen3] --------------------- : Select Screen MPCIE1 Cap...

  • Page 90: Ioe Sata Drive Setup

    KINO-KX SBC 5.4.3.2 IOE SATA Drive Setup Use the IOE SATA Drive Setup menu (BIOS Menu 24) to configure Serial ATA. Aptio Setup Utility – Copyright (C) 2020 American Megatrends, Inc. Chipset CND003 SATA Controller [Enabled] Select whether to enable Configure SATA as [AHCI] or disable SATA...

  • Page 91: Security

    KINO-KX SBC  Force SATA Speed setting [Gen3] Use the Force SATA Speed setting option to select the maximum link speed of the SATA ports. The following options are available:  Gen1  Gen2  Gen3 Default  AHCI Port HotPlug Cap [Disabled] Use the AHCI Port HotPlug Cap option to enable or disable the hot plug function when the SATA devices are configured as AHCI devices.

  • Page 92: Boot

    KINO-KX SBC  Administrator Password Use the Administrator Password to set or change a administrator password.  User Password Use the User Password to set or change a user password. 5.6 Boot Use the Boot menu (BIOS Menu 26) to configure system boot options. Aptio Setup Utility –...
  • Page 93 KINO-KX SBC  Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.

  • Page 94: Save & Exit

    KINO-KX SBC  Disabled Boot from UEFI devices is disabled. EFAULT  Boot Option Priority Use the Boot Option Priority function to set the system boot sequence from the available devices. The drive sequence also depends on the boot sequence in the individual device section.
  • Page 95 KINO-KX SBC  Restore Defaults Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus. F3 key can be used for this operation.  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. ...

  • Page 96: A Regulatory Compliance

    KINO-KX SBC Appendix Regulatory Compliance Page 84...
  • Page 97 KINO-KX SBC DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply. FCC WARNING This equipment complies with Part 15 of the FCC Rules.

  • Page 98: B Product Disposal

    KINO-KX SBC Appendix Product Disposal Page 86...
  • Page 99 KINO-KX SBC CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 100: Cbios Menu Options

    KINO-KX SBC Appendix BIOS Menu Options Page 88...
  • Page 101 KINO-KX SBC System Date [xx/xx/xx] ......................54 System Time [xx:xx:xx] ....................... 54 Security Device Support [Disable] ..................56 ACPI Sleep State [S3 (Suspend to RAM)] ................57 Wake system with Fixed Time [Disabled] ................58 Serial Port [Enabled] ......................60 PC Health Status ........................
  • Page 102 KINO-KX SBC Bootup NumLock State [On] ....................80 Quiet Boot [Enabled] ......................81 Launch PXE OpROM [Disabled] ..................81 Option ROM Messages [Force BIOS] ................. 81 UEFI Boot [Disabled] ......................81 Boot Option Priority ......................82 Save Changes and Reset ....................82 Discard Changes and Reset ....................

  • Page 103: D Watchdog Timer

    KINO-KX SBC Appendix Watchdog Timer Page 91...
  • Page 104 KINO-KX SBC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs. The Watchdog Timer ensures that standalone systems like ATMs will automatically attempt to restart in the case of system problems.
  • Page 105 KINO-KX SBC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown. EXAMPLE PROGRAM: ;...

  • Page 106: E Error Beep Code

    KINO-KX SBC Appendix Error Beep Code Page 94...

  • Page 107: Pei Beep Codes

    KINO-KX SBC E.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available E.2 DXE Beep Codes Number of Beeps...

  • Page 108: F Hazardous Materials Disclosure

    KINO-KX SBC Appendix Hazardous Materials Disclosure Page 96...
  • Page 109 KINO-KX SBC F.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).
  • Page 110 KINO-KX SBC F.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 98...
