Installation

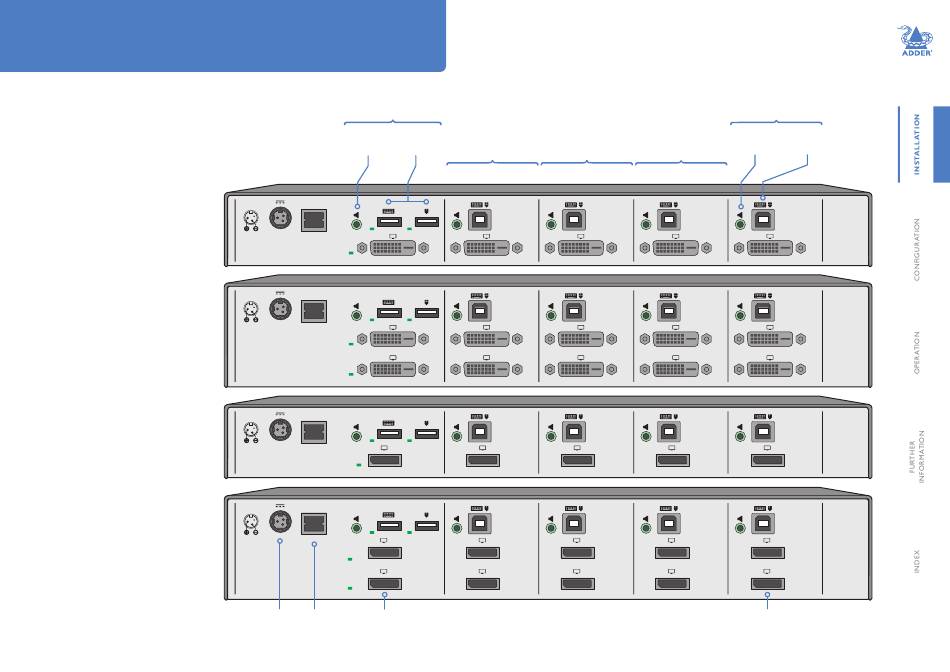

CONNECTIONS
All connections are made at the rear panel.
Use only approved shielded cables, particularly
for the video connections. Ensure that all
connections are made before applying power.
AVS 2114
Single DVI video connections
AVS 2214
Dual DVI video connections
AVS 4114
Single DisplayPort/HDMI
video connections
AVS 4214
Dual DisplayPort/HDMI
video connections
Console peripherals
Keyboard
Speakers
and mouse
12V
2.5A
RCU
CONSOLE
12V
2.5A
RCU
CONSOLE
12V
2.5A
RCU
CONSOLE
12V
2.5A
RCU
CONSOLE
Power
Remote
Primary (top)
in
control
and secondary
link
console displays
Computer port 4
Computer port 3
as per port 1
as per port 1
4
3
4
3
4
3
4
3
Computer port 1
Computer
Computer
audio link
USB link
Computer port 2
as per port 1
2
1
2
1
2
1
2
1
Primary (top) and
secondary computer
video connections
7
