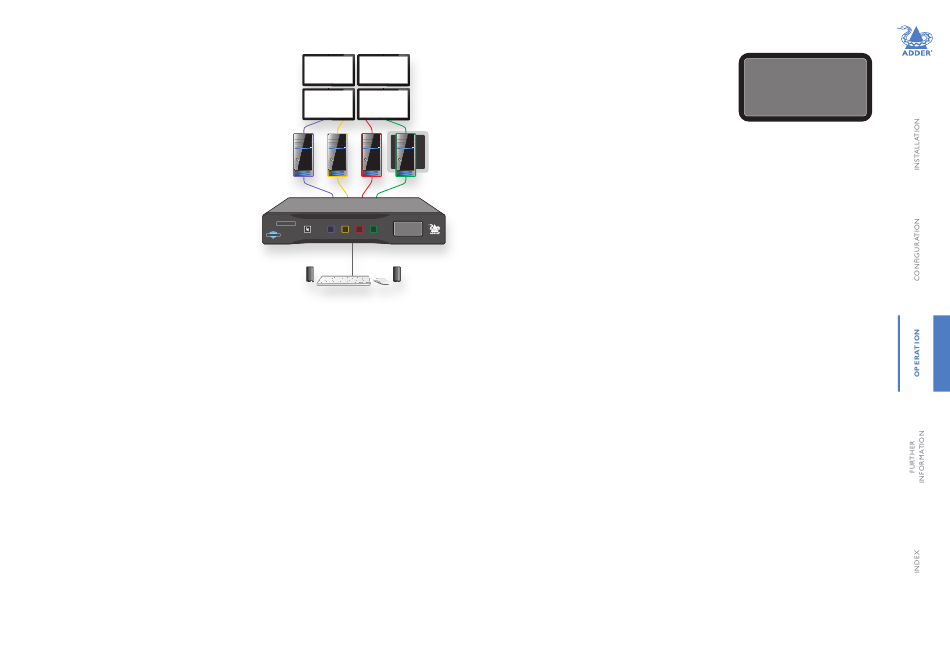

KM CONFIGURATION

When Free-Flow is enabled (see page
14), it is possible to use the switch in KM
Configuration, where the video displays
are arranged in a default 2x2 grid and are
all connected directly to their respective
computers. This allows the operator to
view all channel outputs simultaneously. No
further configuration is required.

AUDIO HOLD

This front panel button (also replicated on the optional remote control unit) allows you
to take the audio output from one computer while operating on another.
To use audio hold
1 Use any of the switching methods to choose the computer whose audio you wish to
hear.
2 Press the Audio Hold button, either on the secure switch front panel or on the
optional remote control unit.
3 Switch to the computer that you wish to use.

The audio feed to the speakers (attached to the secure switch)
will continue to feed from the initially connected computer.
1 2
3 4
1 2 3 4
ADDERView
2 2 1 4
A V S
CH: 1 ATUM
1
AUDIO:
1 2 3 4
TSECRET
S E C U R E

STATUS DISPLAY

The status display shows the current channel number,
channel name (if configured), audio channel and hold
status, plus security classification (if configured). It also
indicates whether the switch is under remote control.

REMOTE CONTROL UNIT

When a remote control unit is connected, the front panel buttons will have no effect,
however, the button indicators will continue to reflect the current channel selection, as
determined by button presses on the remote control unit.
Adding and removing an RCU
An RCU may be added or removed at any time:
• Once connected, associate the RCU by pressing any key.
• Once disconnected, power cycle the switch unit.

ERROR INDICATIONS

The secure switch continually runs integrity checks throughout its circuitry. If any
unexpected behavior is detected the secure switch will immediately cease operation, lock
all ports and provide operator feedback by flashing all of the channel button indicators.
Following an error indication: Remove power from the unit, check all connections and
peripheral devices before re-applying power to the secure switch.
CH: 1 ATUM
1
AUDIO:
TSECRET
