Installation

CONNECTIONS

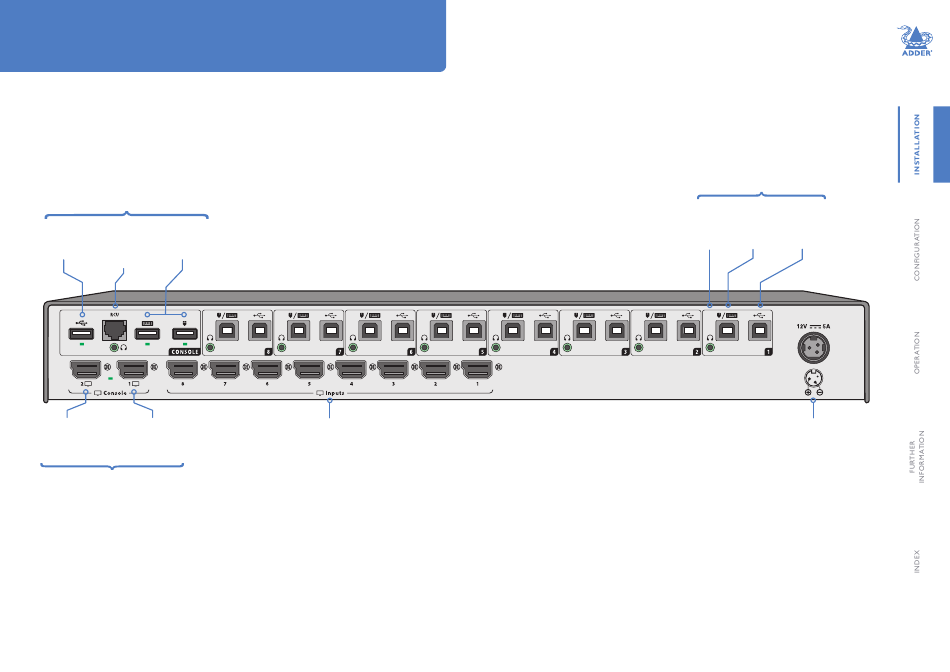

All connections are made at the rear panel.
Use only approved shielded cables, particularly
for the video connections. Ensure that all
connections are made before applying power.
Console peripherals
USB 2.0 Remote
Keyboard
Hi-Speed control
and mouse
port link +
ports
speaker port
Comp. port 8
as per port 1
Secondary Primary
console DP/ console DP/
HDMI display HDMI display
Console peripherals
Comp. port 7 Comp. port 6 Comp. port 5
as per port 1 as per port 1 as per port 1
DP/HDMI video
inputs for all
Note: Units are shipped with a blanking plug inserted into each combined video port, leaving only the HDMI
eight computer
connections open. If you need to use DisplayPort connections, simply remove the blanking plugs from the
ports
required ports.
Comp. port 4 Comp. port 3 Comp. port 2
as per port 1 as per port 1 as per port 1
Computer port 1
USB
USB 2.0
keyboard
Audio Hi-Speed
& mouse
link link link
Power in
