Remote control unit connection

The optional remote control unit allows the operator to
change channels when the secure switch unit is not within
reach.

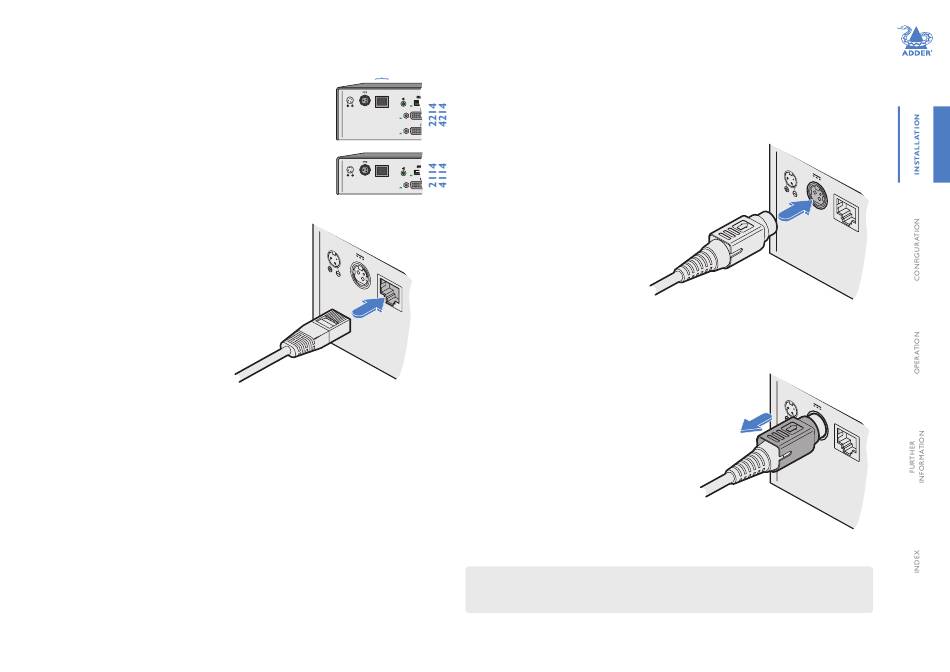

To connect the remote control unit
1 Insert the plug from the remote control unit cable
into the RCU socket on left side of the rear panel.
From the
remote control unit

Power connection

IMPORTANT: Ensure that the video displays connected to the secure switch are
Remote
control
powered on before applying power to the secure switch itself.
socket
The supplied power adapter uses a locking-type plug to help prevent accidental
12V 2.5A RCU
disconnection from the secure switch; please follow the instructions below when
disconnecting the power adapter.
To connect the power adapter
CONSOLE
1 Attach the output plug of the supplied power adapter to
the power input socket on the left side of the rear panel.
12V 2.5A RCU
As you insert the plug, pull back slightly on the outer
body to assist the locking mechanism until the plug is fully
CONSOLE
inserted.
1 2 V
2 . 5
A
R C
U
2 Attach the appropriate country-specific plug to the power adapter body and insert it
C O
N S
into a nearby mains outlet.
O L
E
To disconnect the power adapter
1 Isolate the power adapter from the mains
supply.
2 Grasp the outer body of the power adapter
plug where it connects with the node.
3 Gently pull the body of the outer plug away
from the node. As the body of the plug slides
back, it will release from the socket and you
can fully withdraw the whole plug.
IMPORTANT: Please read and adhere to the electrical safety information
given within the supplied safety guide. In particular, do not use an unearthed
power socket or extension cable.
From the
power adapter
Gently pull back the
plug outer body to
release the lock
1 2 V
2 . 5
A
R C
U
C O
N S
O L
E
1 2 V
2 . 5
A
R C
U
C O
N S
O L
E
