Computer Connections - ADDER ADDERView Secure AVS 2114 User Manual

Computer connections

The secure switch has four computer
ports, each of which consists of:
one (AVS 2114/4114) or two (AVS
2214/4214) video links, a USB link and
an audio connection. Note: The secure
switch can be used either with video
display(s) connected to the console ports
(KVM configuration) or alternatively with
displays connected to each computer
(KM configuration - see page 15)
to allow the operator to view them all
simultaneously.
AVS 2114 and 2214 units support single Link DVI video resolutions up to 1920 x 1200 @ 60Hz.
AVS 4114 and 4214 units support DisplayPort or HDMI video resolutions up to
3840 x 2160 @ 60 Hz.

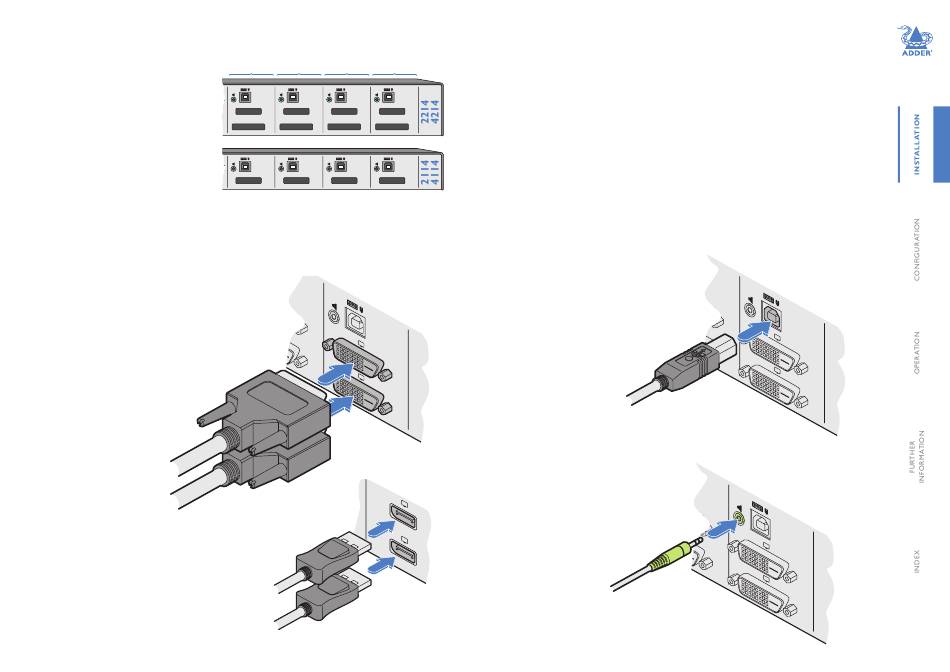

To make connections (to each computer port)
1 Attach a cable between the primary
(upper) video connector and the primary
video output connector on the computer.
2 Where a secondary video display is also to
be used, repeat step 1 for the lower video
connector and the secondary video output
on the computer.
Primary DVI video
connection to computer
Secondary DVI video
connection to computer
Primary DisplayPort or HDMI
video connection to computer
Secondary DisplayPort or HDMI
video connection to computer
Computer Computer Computer Computer
Port 4 Port 3 Port 2 Port 1
PRIMARY PRIMARY PRIMARY PRIMARY
SECONDARY SECONDARY SECONDARY SECONDARY
4 3 2 1
PRIMARY PRIMARY PRIMARY PRIMARY
4 3 2 1
1
DVI version
DisplayPort/HDMI
version
The green indicator associated with each console port should be ON to signify correct
communications with the peripheral device. The video indicator will flash on power up
whilst the switch is reading the EDID from the display. As a security measure, once the
video indicator is ON the switch will not read the EDID again unless the switch is power
cycled.
Note: If dual link cables are connected together with a monitor capable of a higher resolution
than 1920x1200, then the computer graphics card may auto-select a higher resolution, which
may result in video artifacts.
3 Insert one of the supplied USB (type
A to type B) cables between the USB
socket and a vacant USB port on the
computer.
USB connection
to computer
4 Insert one of the supplied 3.5mm
audio cables between the audio input
socket and the speaker output on the
computer.
Audio connection
to computer
