- Page 1 Installation and Operating instructions for C9900-P223 and C9900-P224 Power Supply Units Version: 1.2 Date: 2012-02-22 Arrow.com. Downloaded from...
- Page 2 Arrow.com. Arrow.com. Downloaded from Downloaded from...
-
Page 3: Table Of Contents
UPS Software Components (only C9900-P224) Installation on the PC Help files Servicing Shutting down Disposal Troubleshooting Beckhoff Support & Service Beckhoff branches and partner companies Beckhoff Headquarters Beckhoff Support Beckhoff Service Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference... -
Page 4: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH apply. -
Page 5: Description Of Safety Symbols
If you do not adhere the notice adjoining this symbol, there is obvious Attention hazard to materials and environment. Note or pointer This symbol indicates information that contributes to better understanding. Note C9900-P223 / C9900-P224 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
Page 6: Basic Safety Measures
Foreword Basic safety measures Use only with Beckhoff Industrial PCs The power supply unit must only be used in conjunction with Beckhoff Note Industrial PCs! Switch off the power supply of the system during installation! During assembly, removal and electrical wiring of the power supply unit,... -
Page 7: Product Description

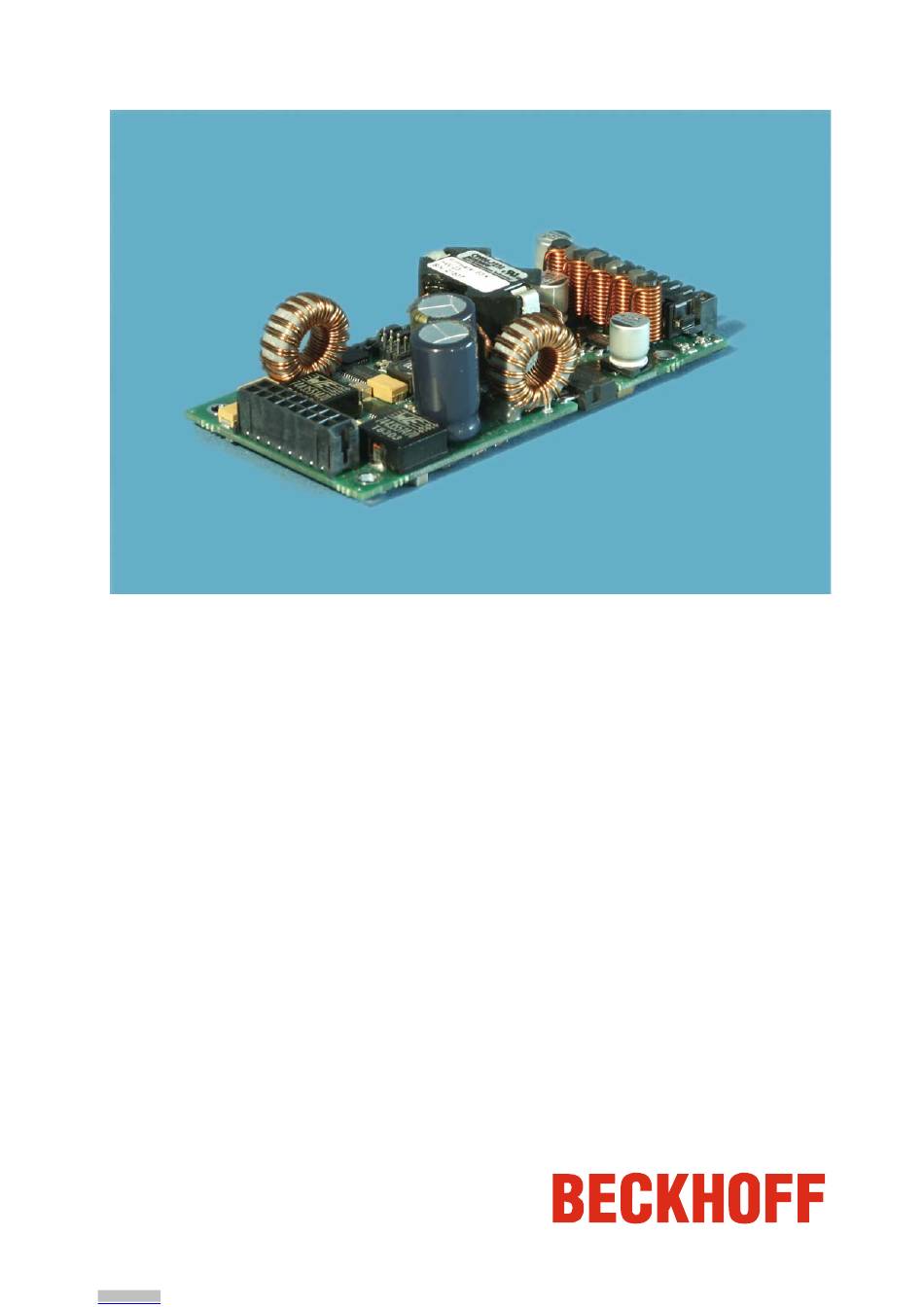

Product Description Product Description Appropriate Use The C9900-P223 and C9900-P224 power supply unit provide the power supply for Beckhoff Industrial PCs. The C9900-P224 power supply in conjunction with a C9900-U330 battery pack allows the construction of an uninterruptible power supply (UPS). -
Page 8: Electrical Data
External wiring. Electrical data Input voltage: 22–30V DC/ 15A Power output: max. 150W, depending on cooling Output voltages: + 5V + 12V + 5VSB C9900-P223 / C9900-P224 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from... -
Page 9: Installation Instructions
The power supply unit is installed at the prescribed position in the Industrial The figure shows the supply connections for the power supply unit (1) and the electrical connections for the motherboard (2). C9900-P223 / C9900-P224 Arrow.com. Arrow.com. Arrow.com. -
Page 10: Connection With The Motherboard
Low -> motherboard logic shall open the ATX-switch HIGH -> motherboard logic shall close the ATX-switch ground +5V 20A +12V +12V 5A 5V-Standby +5V 1A standby voltage C9900-P223 / C9900-P224 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
Page 11: Connection With The Industrial Pc
Battery Pack (only C9900-P224) power supply and the 1 2 3 4 5 6 7 8 battery pack (optional) UPS+ (only C9900-P224) 24 V DC Power Supply PC_ON Power-Status C9900-P223 / C9900-P224 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
Page 12: External Wiring
24 V to 0 V. Via this output a signal lamp can be connected or a contactor for de-energizing the whole system. The maximum load for the Power Status output is 0.5 A and a suitable fuse should be provided. C9900-P223 / C9900-P224 Arrow.com. Arrow.com. Arrow.com. -
Page 13: Ups Output, C9900-P224 Only
Wiring diagram external switch and power supply Connection of the Battery Pack and UPS Output Connection of the Battery Pack and UPS Output only in combination with Note C9900-P224 power supply. C9900-P223 / C9900-P224 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
Page 14: Fitting The Cable
Tighten the lacing cord and pinch off the plastic strap. Fixing the upper part of the strain relief housing Fix the upper part of the strain relief housing by snapping it onto the lower part. C9900-P223 / C9900-P224 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
Page 15: Operating Instructions
The driver software comes with a detailed help function. System The help files can be called up either directly from the configuration register by clicking the Help button, or under via Start > Programs > Beckhoff > UPS software components. Servicing The power supply unit is maintenance-free. -
Page 16: Troubleshooting
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com You will also find further documentation for Beckhoff components there. -
Page 17: Appendix
FCC: Canadian Notice FCC Approval for Canada This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. C9900-P223 / C9900-P224 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
