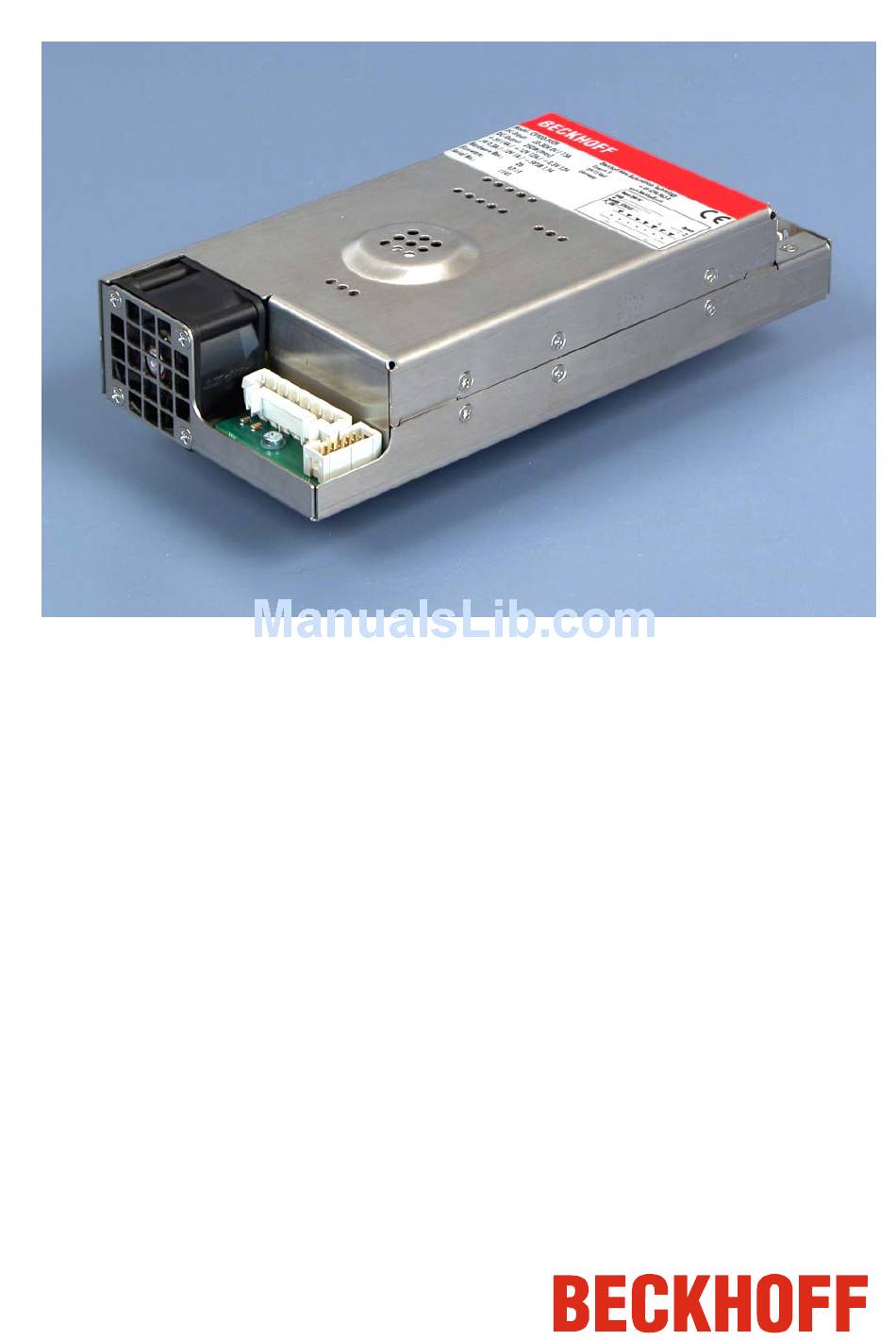

- Page 1 Operating instructions for C9900-P209 power supply unit Version: 1.1 Date: 2006-01-26...
-
Page 3: Table Of Contents
UPS software components Installation on the PC Software configuration Help files Servicing Shutting down Disposal Troubleshooting Service and Support Beckhoff Service Beckhoff Support Company headquarters Assembly dimensions Wiring diagram Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference Statement... -
Page 4: General Notes
© This documentation is protected by copyright. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. -
Page 5: Basic Safety Measures
Basic safety measures The power supply unit must only be used in conjunction with Beckhoff Industrial PCs! Note Switch off the power supply of the system during installation! During assembly, removal and electrical wiring of the power supply unit, Warning the power supply of the system must be switched off in order to prevent damage on the power supply unit and the Industrial PC. -
Page 6: Product Description

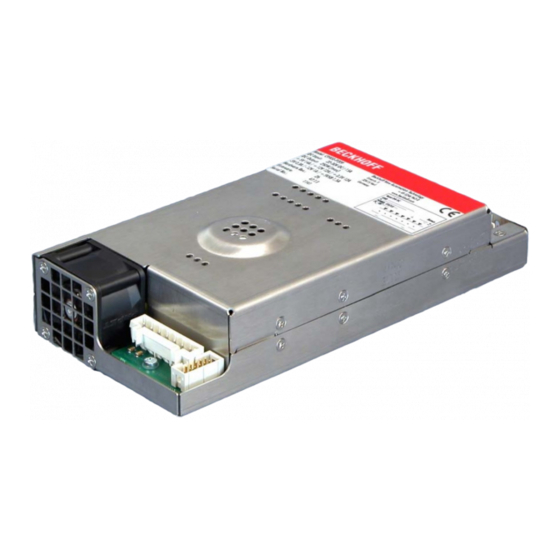

Product Description Product Description Appropriate Use The C9900-P209 power supply unit provides the power supply for Beckhoff Industrial PCs. An uninterruptible power supply (UPS) can be arranged in conjunction with a C9900-U330 battery pack. Risk of explosion if other battery packs are used! -
Page 7: Connecting The Power Supply Unit
5VSTB + 5V + 5V 5V/ 12V supply for drives Function Function + 12V + 12V + 5V + 5V POWER ON Function POWER-ON POWER-ON COM interface Function (RS 232) ATX 12V DC-Output Function Function + 12V + 12V C9900-P209... -
Page 8: Connection With The Industrial Pc
To this end, a "flying" fuse (6.3A/ medium time-lag) is inserted in the line. Note cable cross sections The cable cross sections are 0.75 mm / AWG18 for connecting the illuminated toggle switch and 2.5 mm / AWG14 (screened) for connecting the power supply. C9900-P209... -
Page 9: External Wiring
To this end, a 3-pin pin strip with CAGE CLAMP connection and mounting flanges is installed at the PC case. Pin assignment for Function connecting the on/off switch Power-Status PC_ON + 24 V Wiring Wiring according to the wiring diagram: Wiring diagram for external components C9900-P209... -
Page 10: Installation Of The Supply Cables
Use cables with a cross-section of 2.5 mm (AWG 14) for the supply lines to the Industrial PC. The distance between power supply and PC should not exceed 10 m in order to avoid excessive voltage drop in the cable. C9900-P209... -
Page 11: Ups Software Components
Beckhoff information The help files can be called up either directly from the configuration register system by clicking the Help button, or under via Start > Programs > Beckhoff > UPS software components. Servicing The power supply unit is maintenance-free. -
Page 12: Troubleshooting
Beckhoff and their partners around the world offer comprehensive service and support, making available fast and competent assistance with all questions related to Beckhoff products and system solutions. Beckhoff Service The Beckhoff Service Center supports you in all matters of after-sales service: • on-site service •... -
Page 13: Assembly Dimensions
Assembly dimensions Assembly dimensions Device dimensions and mounting points. Dimensional notation in mm. C9900-P209... -
Page 14: Wiring Diagram
Wiring diagram Wiring diagram C9900-P209 power supply unit in conjunction with C9900-U330 battery pack C9900-P209... -
Page 15: Appendix
FCC: Canadian Notice FCC Approval for Canada This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. C9900-P209...
