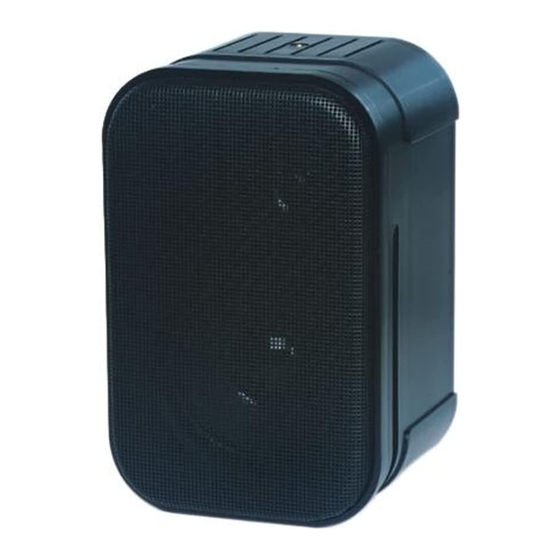

Foreground Speaker
Model FG15 (B/W)

Installation

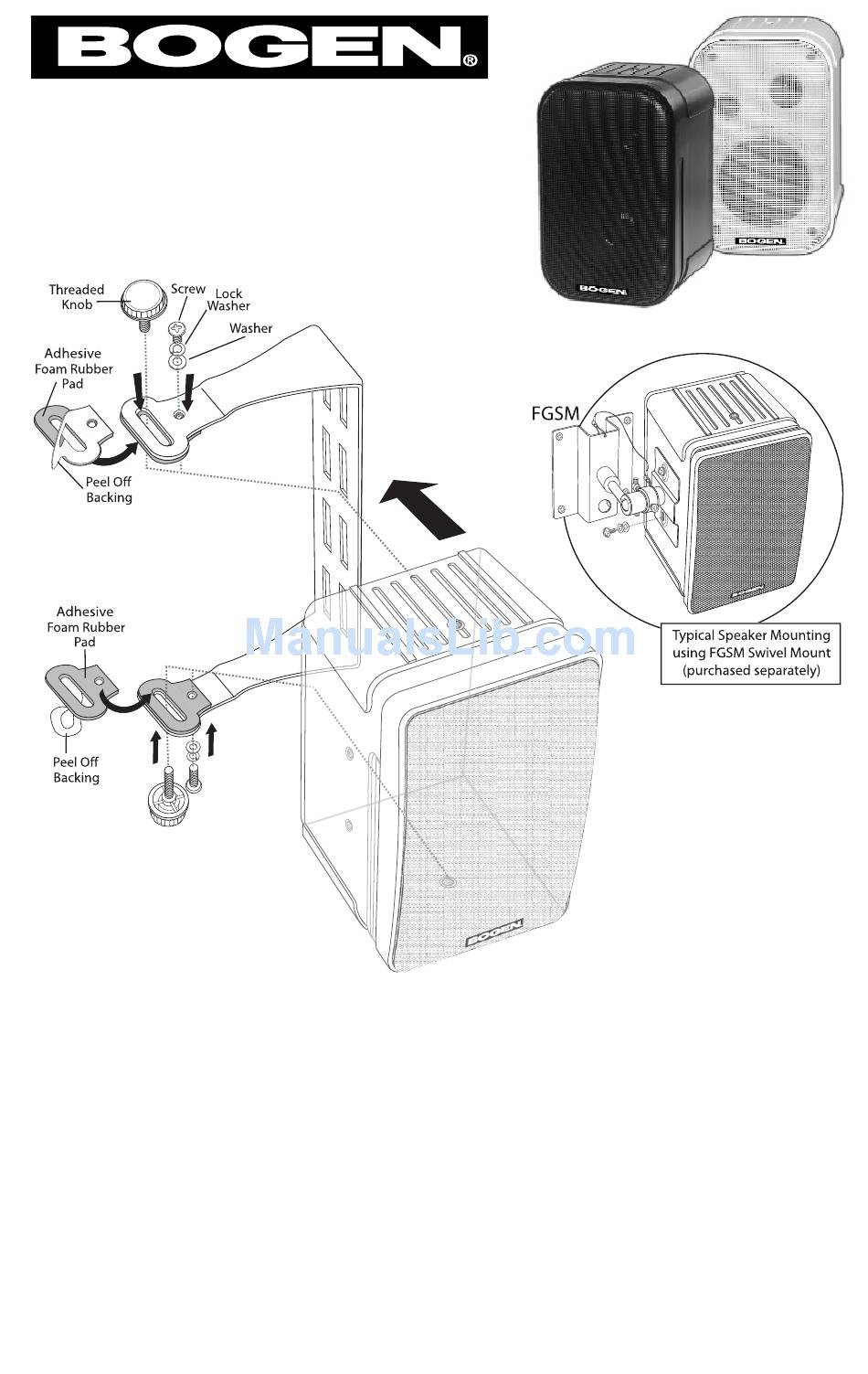

1. Peel backing off of the Adhesive Foam Rubber Pads and affix them to the
inside of the mounting bracket ears.
2. Attach bracket to mounting surface using appropriate hardware (user-supplied).
3. Make electrical connections and power settings and then slip the speaker
between the mounting bracket ears and line up the holes.
4. Attach the speaker to the mounting bracket using either the threaded knobs
or the screws and washers for a more tamper-resistant mount. Do not use
the washers with the threaded knobs.
Note: Physical appearance of speaker and bracket may differ from this drawing.
Specifications are subject
to change without notice.
© 2004 Bogen Communications, Inc.
54-2111-01C 1208
