Bogen FMH15T Installation Instructions

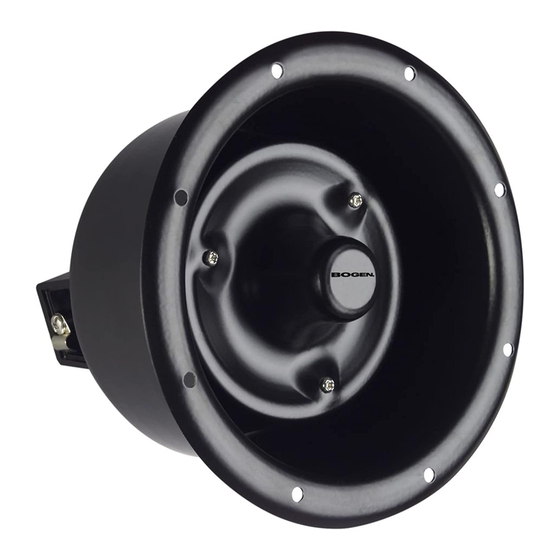

FMH15T
Flange-Mounted, 15W,
Horn Loudspeaker
Installation Instructions

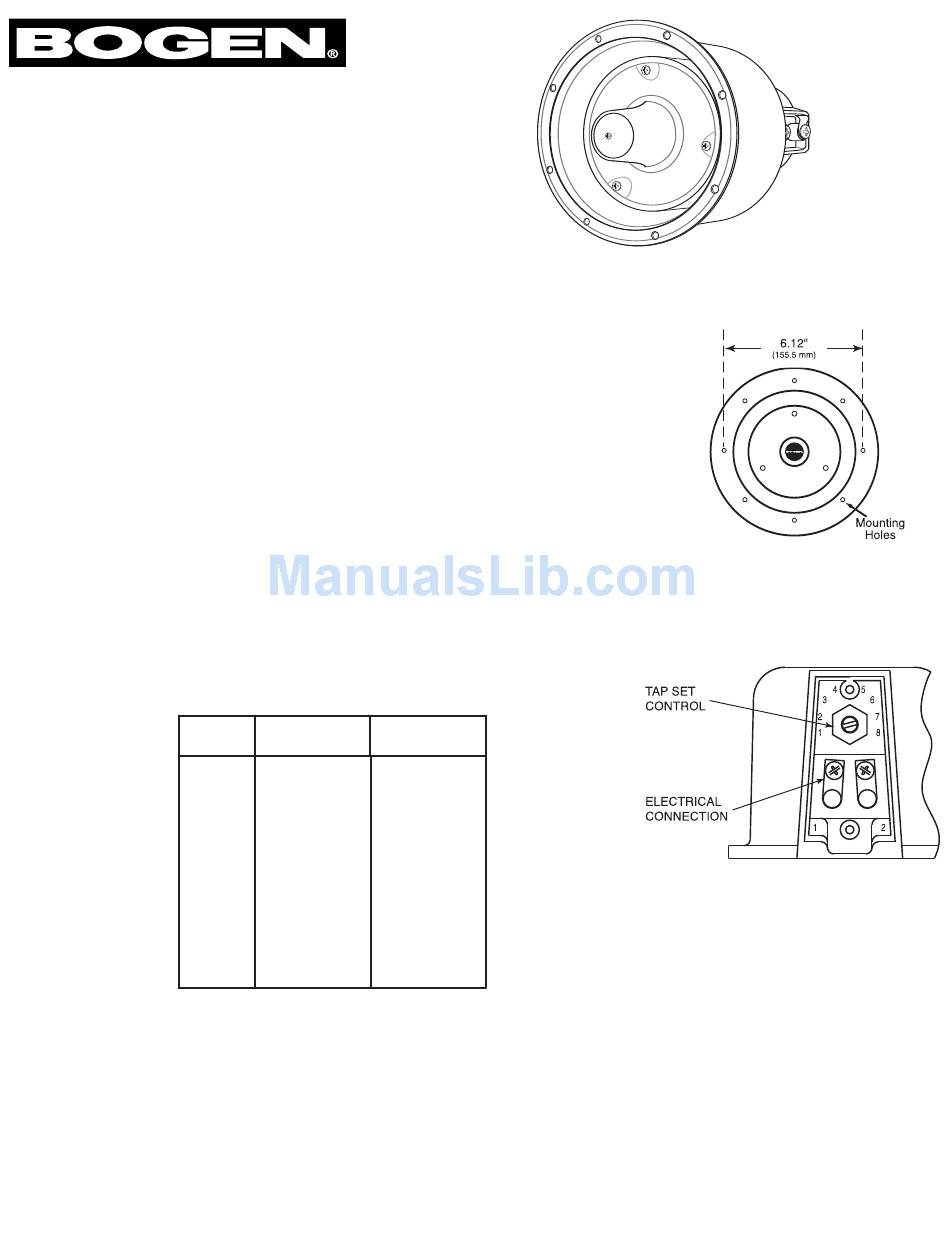

The FMH15T is designed to be mounted by its flange. Figure 1 shows the mounting hole
locations.

Components

Bogen recommends using the SGHD8 Grille with the FMHAR8 Adapter Ring for proper
mounting of the horn. The SGHD8 Grille will mount to the BBFM6 Flush-Mount Enclosure
or BBSM6 Surface-Mount Enclosure. See Figure 3 on other side for mounting details.
1. Make the electrical connections (see Figure 2). Connect the 70V or 25V "hot" lead to the
#1 terminal and the system common lead to the #2 terminal. Follow this pattern on all
similar speakers to ensure proper phasing; however, the speakers will work perfectly well
if the connections are reversed.
2. Adjust the tap selector switch to the desired wattage using the chart below.
TAP SET 70V WATTS 25V WATTS
1 0.9
2 1.8
3 3.6
4 7.5
5 15
6
*
7
*
8
*
IMPORTANT
Do not use these positions
*
0.125
0.25
0.5
0.9
1.8
7.0
15
*
Figure 1
Figure 2
© 2005 Bogen Communications, Inc.
Specifications subject to change without notice.
54-2137-01B 0802
