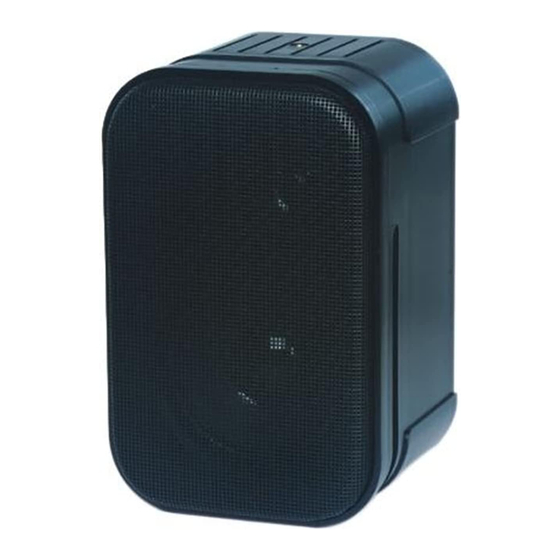

Foreground Speakers
Models FG15 (B/W), FG20S, & FG30
Specifications subject to change without notice.
© 2004 Bogen Communications, Inc.
Part No. 54-2111-01A
0404
Installation
1. Peel backing off of the foam rubber pads and
affix them to the inside of the mounting
bracket ears.
2. Attach bracket to mounting surface using
appropriate hardware (user-supplied).
3. Make electrical connections and power
settings and then slip the speaker between the
mounting bracket ears and line up the holes.
4. Attach the speaker to the mounting bracket
using either the threaded knobs or the screws
and washers for a more tamper-resistant
mount. Do not use the washers with the
threaded knobs.
Note: Physical appearance of speaker and
bracket may differ from this drawing.
Advertisement
Table of Contents
Related Manuals for Bogen FG15
Summary of Contents for Bogen FG15
- Page 1 Foreground Speakers Models FG15 (B/W), FG20S, & FG30 Specifications subject to change without notice. © 2004 Bogen Communications, Inc. Part No. 54-2111-01A 0404 Installation 1. Peel backing off of the foam rubber pads and affix them to the inside of the mounting bracket ears.
-
Page 2: Limited Warranty
In no event shall Bogen be liable for special, incidental or consequential damages (including, but not limited to, loss of profits, loss of data or loss of use damages) arising out of the man- ufacture, sale or supplying of products, even if Bogen has been advised of the possibility of such damages or losses.
