Local Configuration
3.4.2 Status – Modem

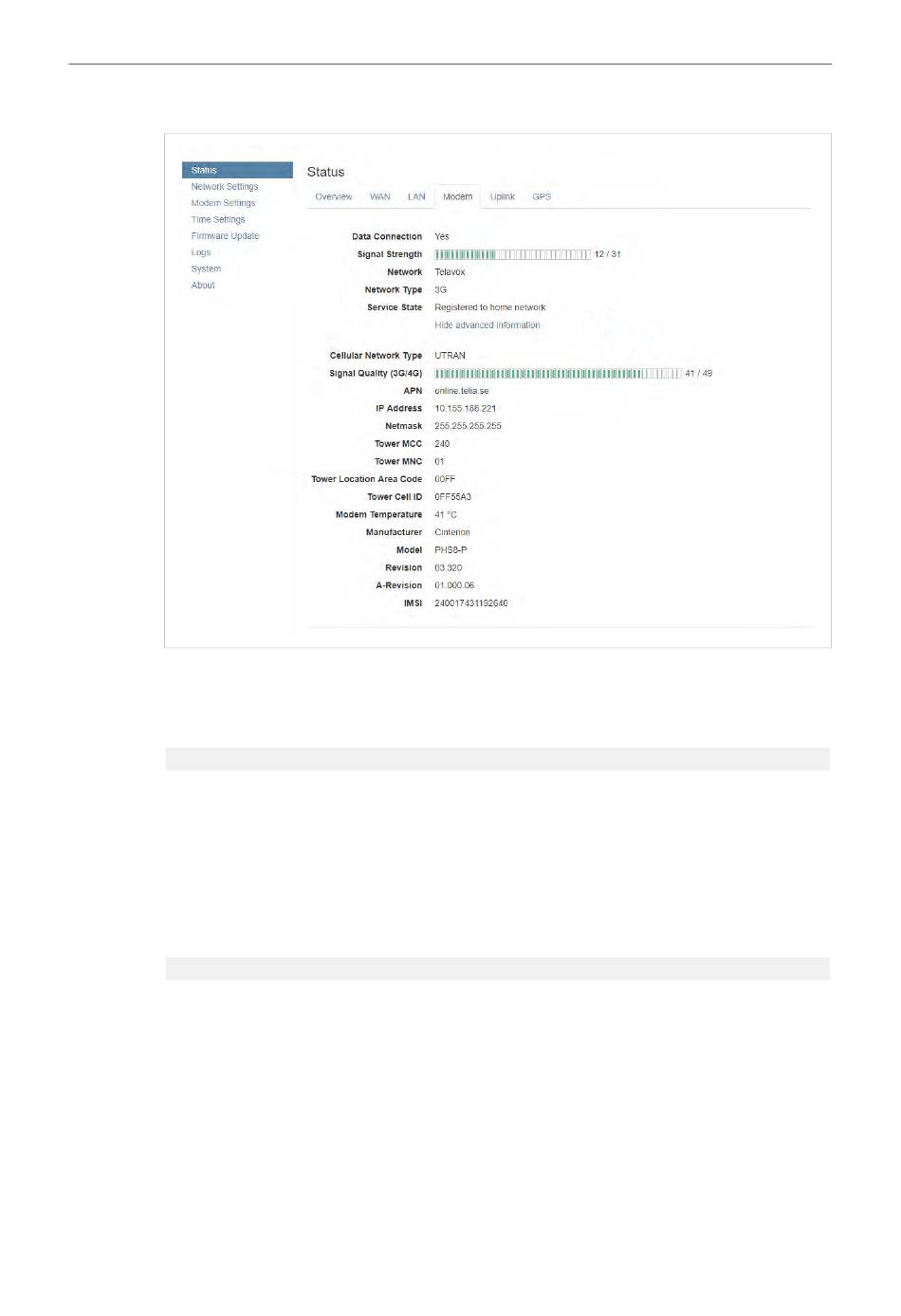

Fig. 26 Modem Status
The Modem status tab presents basic and advanced information about the current mobile
network connection.
Basic information
Data Connection
Signal strength
Network
Network type
Service state
Advanced information
Cellular network type
Signal quality (3G only)
APN
IP, Netmask
Tower MCC
Tower MNC
Tower Location Area Code
Tower Cell ID
Netbiter EC300 Series User Manual
Indicates if data connection is established
The strength of the mobile signal
Mobile network operator
Mobile network type (4G, 3G or GSM)
Network registration status
Network type details
Signal-to-noise ratio of the 3G signal. 0 = -24 dB, 49 = 0 dB
Access Point Name
IP settings for the modem connection
Country code of the connected base station
Network code of the connected base station
Area code of the connected base station
Cell ID of the connected base station
