Installation
2.3.8 Ethernet Ports (RJ45)

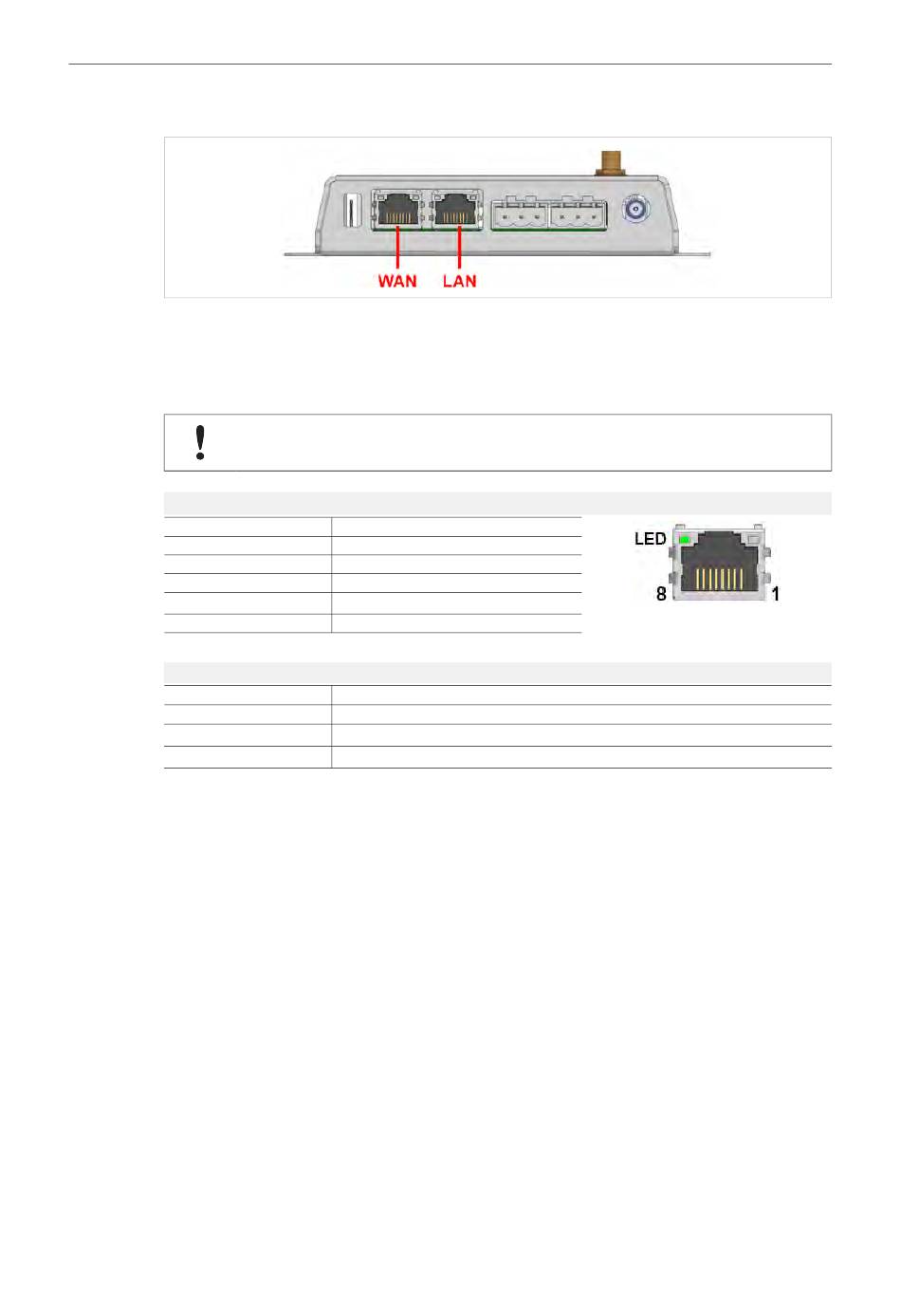

Fig. 10 Ethernet Ports
WAN
LAN
RJ45 pin layout
Pin
1
2
3
4, 5, 7, 8
6
Ethernet Port LED
Indication
Off
Orange, flashing
Green, flashing
Netbiter EC300 Series User Manual
Use for Internet and Argos
Use for EtherNet/IP, Modbus TCP and Remote Access
Never connect the LAN and WAN ports to the same logical network.
Function
TD+
TD-
RD+
(reserved)
RD-
Function
No traffic
Traffic (10 Mbit/s)
Traffic (100 Mbit/s)
