1.2.

Pin-assignments

Pin-assignment harness TV-UNI
Cable colour
● Yellow
● Blue
●● Yellow/Black Pin 8
●● Blue/Black
● Red
● Black
● Green
● White
1.3.

Dip switch functions of the TV-501

Dip 1 – activation TV-free
Dip 2 – no function
Dip 3 – no function
Dip 4 – no function
Dip 5 – CAN-bus termination resistor on the vehicle side
Dip 6 – CAN-bus termination resistor on the head-unit side
Version 28.01.2013

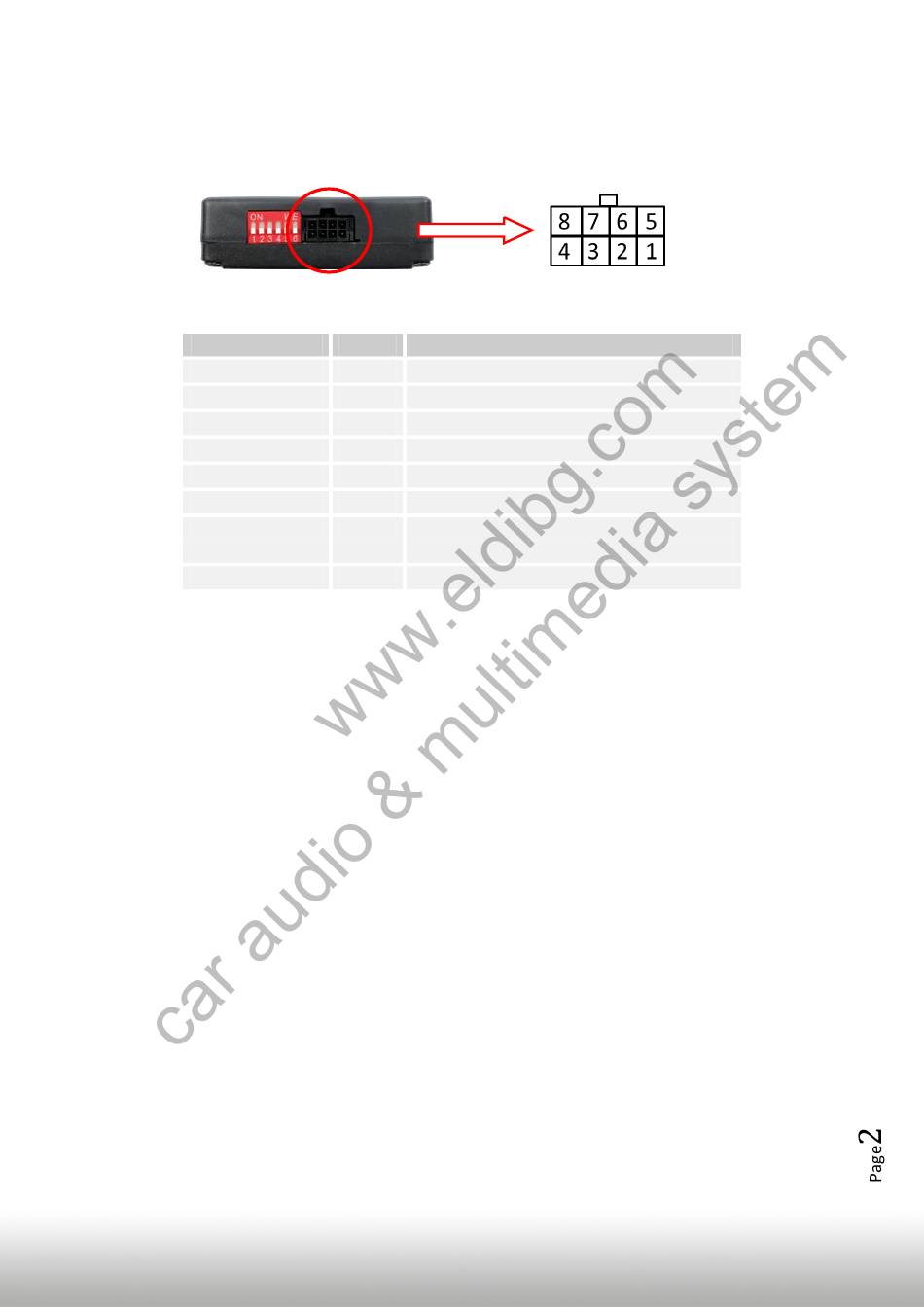

Pin-assignment male 8pin connector of TV-500
Pin-No. Assignment
Pin 4 CAN-HIGH – connection to the head-unit
Pin 3 CAN-LOW – connection to the head-unit
CAN-HIGH – connection to the vehicle
Pin 7 CAN-LOW – connection to the vehicle
Pin 1 +12V permanent
Pin 5 Ground
Pin 6 Activation of the video-in-motion function
(+12V = TV-free activated)
Pin 2 Trigger output (+12V DC 500mA)
