TV-Free
Video-in-motion Interface
TF-LR17
For Land Rover
touch-screen navigation system version 4
since 2017
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 05.06.2018
TF-LR17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TF-LR17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caraudio-Systems TF-LR17

Summary of Contents for Caraudio-Systems TF-LR17

  • Page 1 TV-Free Video-in-motion Interface TF-LR17 For Land Rover touch-screen navigation system version 4 since 2017 Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.

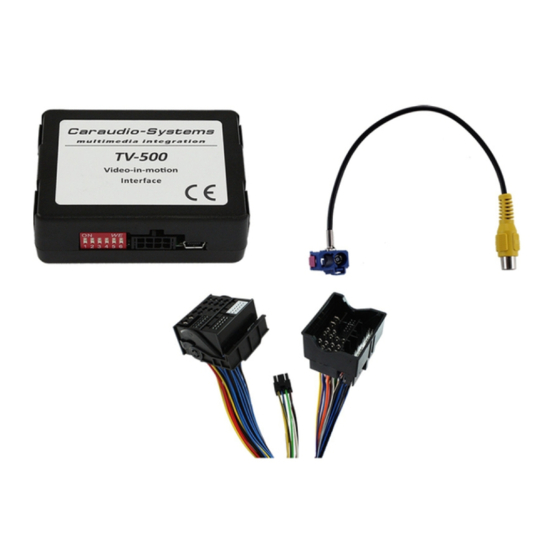

  • Page 2 1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. CAN-box TV-500 HW_____ SW_____ Harness TV-LR05 Version 05.06.2018 TF-LR17...
  • Page 3 Dip 1 – activation TV-free Dip 2 – rear-view camera existing Dip 3 – no function Dip 4 – no function Dip 5 – CAN-bus termination resistor on the vehicle side Dip 6 – CAN-bus termination resistor on the head-unit side Version 05.06.2018 TF-LR17...
  • Page 4 In case the sleep-mode does not show success, disconnect the battery with a resistor lead. Place of installation is at the back of the navigation unit. Version 05.06.2018 TF-LR17...
  • Page 5 Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm 5. Technical Support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
