Vehicles with BMW Professional CCC/CIC:
Compatible vehicles
Navigation
Vehicle/ navigation Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6
Vehicles with CIC
Vehicles with CCC
Cable colour
No liability for vehicle wire colors and pin definition!
Possible changes by the vehicle manufacturer. The given
information must be verified by the installer.
On vehicles with CIC the video-in-motion function is activated permanently without
disturbing the navigation performance.
On vehicles with CCC press the menu-button or the iDrive wheel for about 3 seconds while in
main menu to activate/deactivate the video-in-motion function. When the ignition is off, the
video-in-motion interface will be automatically disabled.
Alternatively for CCC it is possible to set dip-switch 1 of the CAN box TV-401 to ON. But then
the navigation performance is disturbed on the first few kilometres of driving.
Version 28.01.2013

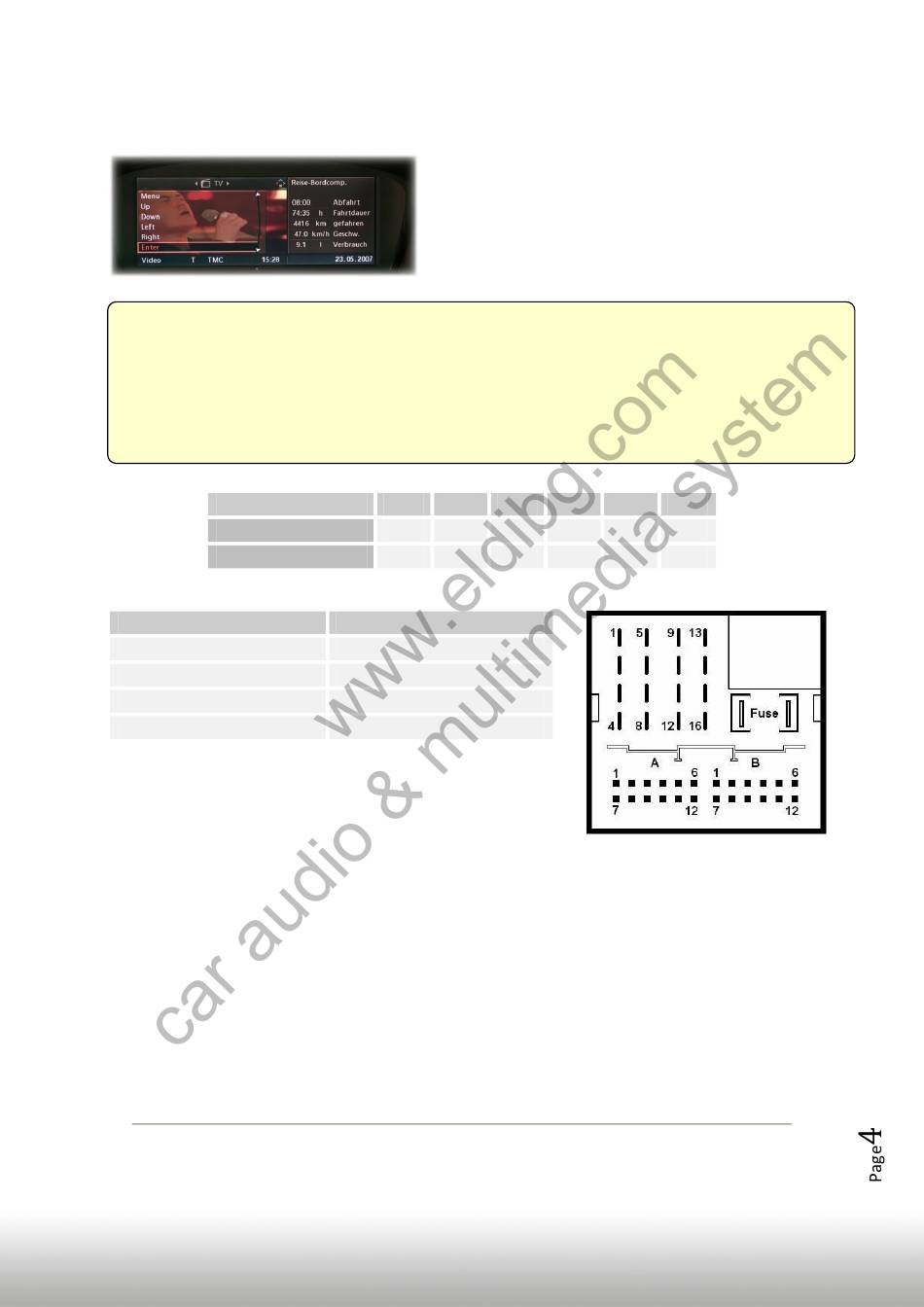

Place of installation is at the back side of the
navigation unit.
BMW 1series (E81/82/87/88), 3series (E90/91/92/93), 5series (E60/61),
6series (E63/64), X5 (E70), X6 (E71), Z4 (E89) Mini R56 from about
10/2006
Navigation system Professional CCC (older 1/2-button iDrive
or CIC (newer 8-button iDrive) with 6.5" or 8.8" monitor
ON
OFF
OFF
OFF
OFF
OFF
Assignment
OFF
OFF
OFF
OFF
OFF
OFF
TF-U501
