QUICK START PROCEDURE

4. Close lid. It will snap into place. See Figure 5.
NOTE: Removal and insertion of the IC should be done
with either tweezers or a vacuum suction device, and
with the power switch S1 set to OFF .

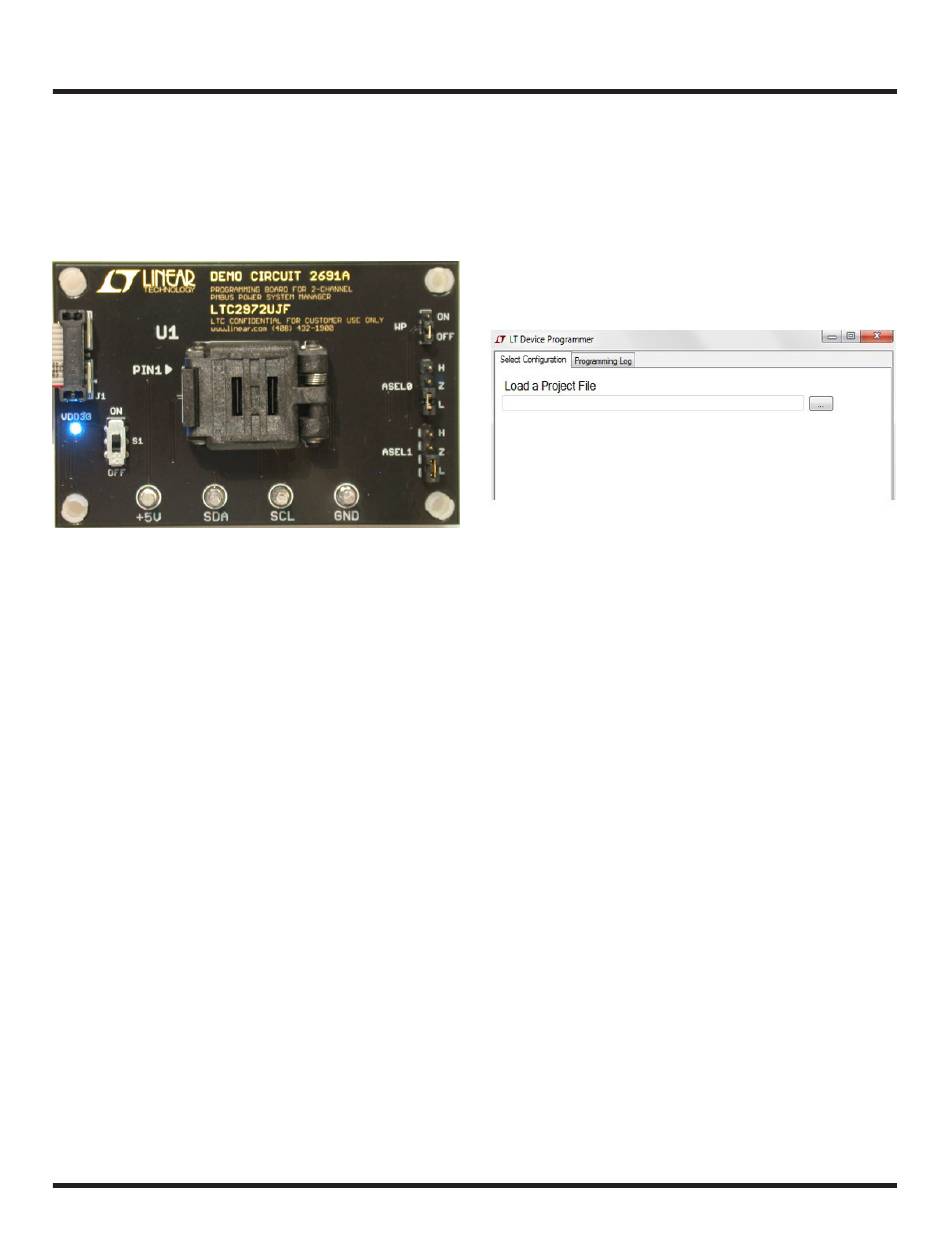

Figure 5. DC1613 Ribbon Cable Attached and Lid Closed
DEMO MANUAL DC2691A
5. Set the power switch S1 to the ON position. The VDD33
LED will illuminate, indicating the on-chip regulator is
providing internal power.
6. Launch the LTpowerPlay software from your PC. The
LT Device Programmer window will appear. Click "..."
next to the selection box and select your .proj file to
program the device.
Figure 6. LT Device Programmer
