Locking Screw (Stationary Unit Only)
Regardless of which mounting configuration is used, a locking screw is used to secure the unit into
the mounting bracket. Do not overtighten the locking screw.

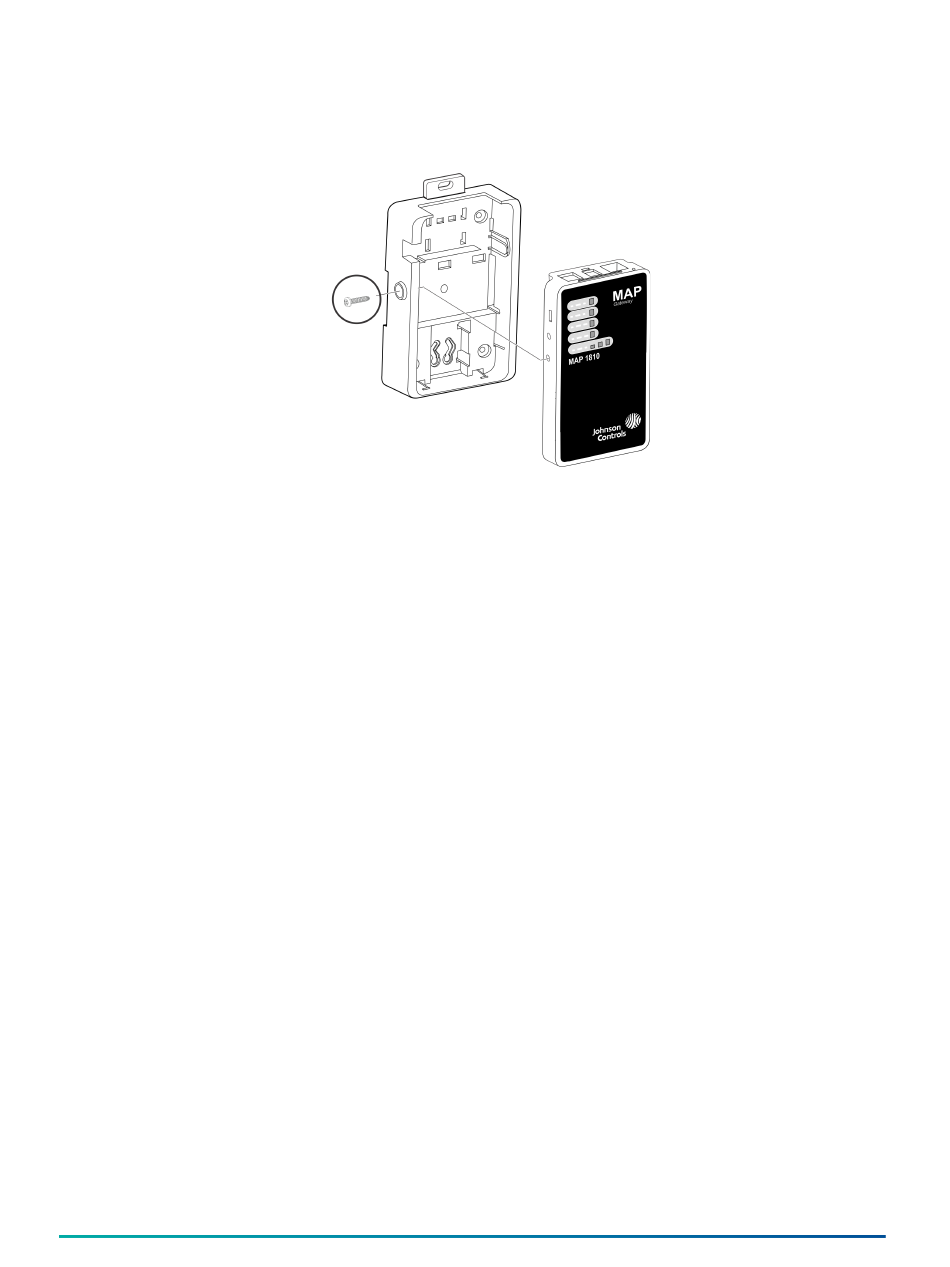

Figure 2: Stationary Mounting with Locking Screw
Permanent Mounting Locations
The mounting bracket can be attached to a 35 mm (1-1/8 in.) DIN rail or a flat, vertical surface.
Mounting the unit on a ceiling or in a way that positions the front of the unit facing down is not
recommended.
Although the bracket has two mounting clips, only the bottom clip snaps inward. The top clip is
permanently locked in the outward position, and it can be used as an additional hole for screwing
the bracket into place. If not utilized for DIN rail or surface mounting, the top and bottom clips may
be removed from the mounting bracket.
DIN Rail Mounting
To mount the bracket on a DIN rail:
1.
Securely mount a 7.5 cm (3 in.) or longer section of 35 mm (1-1/8 in.) DIN rail in the required
space.
2.
On the bracket, pull the bottom mounting clip outward to the extended position.
10
Mobile Access Portal Gateway Installation Guide
