Powerplus POWX075710S Manual

Sliding mitre saw 1600 w-210 mm
Hide thumbs Also See for POWX075710S:
Table of Contents

Advertisement

Quick Links

1
APPLICATION .................................................................................. 3
2
DESCRIPTION (FIG. A & B) ............................................................ 3
3
PACKAGE CONTENT LIST ............................................................. 3
4
SYMBOLS ........................................................................................ 4
5
GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1
Working area ........................................................................................................... 4
5.2
Electrical safety ....................................................................................................... 4
5.3
Personal safety ....................................................................................................... 5
5.4
Power tools use and care ....................................................................................... 5
5.5
Service ..................................................................................................................... 5
6
ADDITIONAL SAFETY INSTRUCTIONS ........................................ 5
7
8
ASSEMBLY ...................................................................................... 7
8.1
Assembling the side support bars ......................................................................... 7
8.2
Assembling the clamp ............................................................................................ 7
9
OPERATING INSTRUCTIONS ........................................................ 7
9.1
Transporting the mitre saw .................................................................................... 7
9.2
Dust and chip extraction ........................................................................................ 8
9.3
Clamping the work piece ........................................................................................ 8
9.4
Horizontal mitre angle............................................................................................. 8
9.5
Adjusting of the cutting angle ................................................................................ 8
9.6
Vertical bevel angle ................................................................................................. 8
9.7
Slide lock adjustment ............................................................................................. 8
9.8
Switching ON / OFF ................................................................................................. 9
9.9
Laser ........................................................................................................................ 9
9.10
Dust bag .................................................................................................................. 9
9.11
Sawing ..................................................................................................................... 9
9.12
Sawing special work pieces ................................................................................... 9
9.13
Replacing the saw blade (Fig. 1) ............................................................................ 9
10
CLEANING AND MAINTENANCE ................................................. 10
10.1
Cleaning................................................................................................................. 10
Copyright © 2021 VARO
POWX075710S
P a g e
| 1
EN
www.varo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWX075710S and is the answer not in the manual?

Questions and answers

Related Manuals for Powerplus POWX075710S

Summary of Contents for Powerplus POWX075710S

  • Page 1: Table Of Contents

    POWX075710S APPLICATION .................. 3 DESCRIPTION (FIG. A & B) ............3 PACKAGE CONTENT LIST ............. 3 SYMBOLS ..................4 GENERAL POWER TOOL SAFETY WARNINGS ......4 Working area ......................4 Electrical safety ....................... 4 Personal safety ....................... 5 Power tools use and care ..................5 Service ........................
  • Page 2 POWX075710S 10.2 Connecting cable ....................10 TECHNICAL DATA ................ 10 CUTTING CAPACITY..............10 NOISE ..................... 10 STORAGE ..................11 TROUBLE SHOOTING ..............11 WARRANTY ................... 11 ENVIRONMENT ................12 DECLARATION OF CONFORMITY ..........12 Copyright © 2021 VARO www.varo.com P a g e...

  • Page 3: Application

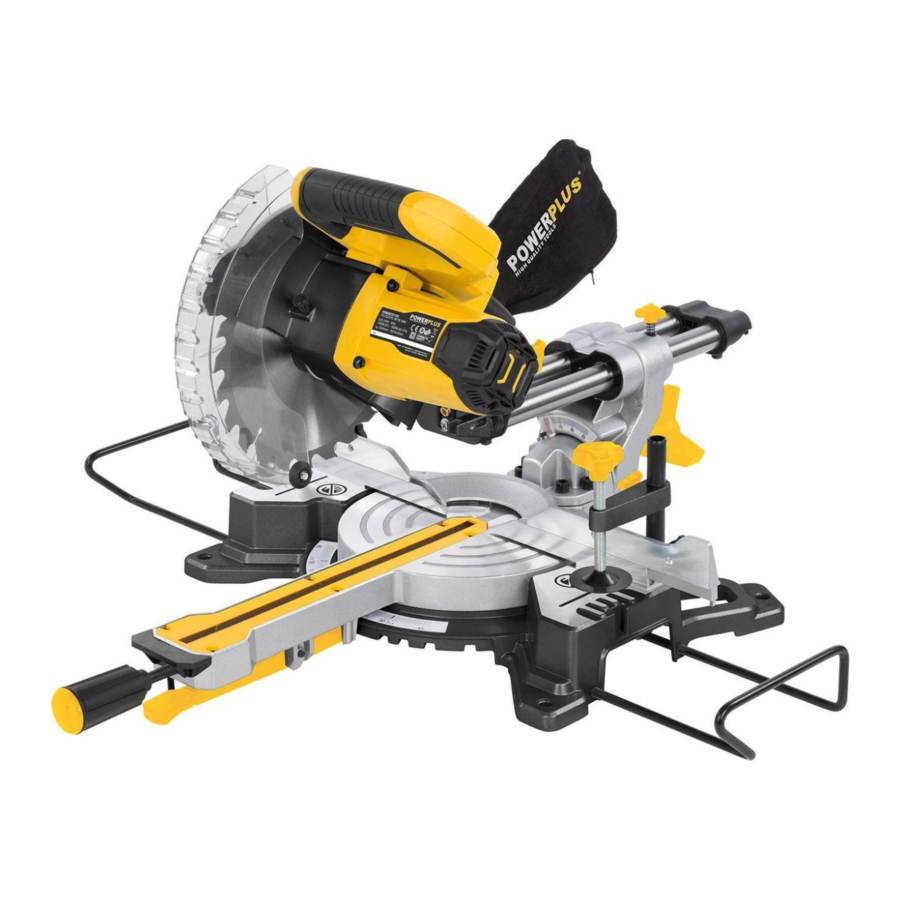

    POWX075710S SLIDING MITRE SAW 1600 W-210 MM POWX075710S 1 APPLICATION This power tool is intended as a stationary machine for making straight and cross cuts in wood. You can saw hard and soft wood as well as chip and fibre boards.

  • Page 4: Symbols

    POWX075710S 4 SYMBOLS The following symbols are used in this manual and/or on the machine: Denotes risk of personal Wear ear guards and goggles. injury or damage to the tool. In accordance with essential Read manual before use. requirements of the European directive(s).

  • Page 5: Personal Safety

    POWX075710S Personal safety ▪ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
  • Page 6 POWX075710S ▪ Only use saw blades that are recommended by the manufacturer and that fulfil the EN847- 1 standard. ▪ Always use the accessories that are recommended by this manual. ▪ Select the correct saw blade for the material must be sawn.

  • Page 7: Additional Safety Instructions For Lasers

    POWX075710S ▪ Do not maltreat the cable. Never pull on the cable, for removing the plug from the socket. Do not expose the cable to heat, oil, water or sharp edges. ▪ Some types of dust that is generated while working with the saw may contain chemicals, which can cause cancer, birth defects or other genetic damages.

  • Page 8: Dust And Chip Extraction

    POWX075710S Pull the mitre saw downwards and lock it in the lowered position by pushing in the retaining pin. That way, the saw is secured. Dust and chip extraction For integrated dust extraction, place the dust bag (18) on the sawdust outlet.

  • Page 9: Switching On / Off

    POWX075710S Switching ON / OFF For your safety use both hands to switch the power tool on and off. ▪ Connect the power tool to the power supply. ▪ Unlock the lock-off button and depress the on/off switch (15) in the direction of the handle.

  • Page 10: Cleaning And Maintenance

    POWX075710S ▪ Loosen the clamping screw in clockwise direction and remove it together with the outer flange and saw blade (2). Do not remove the inner flange from the spindle ▪ Place a new saw blade on the spindle and make sure that the bore of the saw blade properly fits the inner flange .

  • Page 11: Storage

    We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorized customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90.

  • Page 12: Environment

    POWX075710S ▪ We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.). ▪ Your purchase receipt must be kept as proof of date of purchase.
