2.2 WARNINGS REGARDING TRIMMER USE

The trimmer has been designed to create edges made
from melamine, PVC, ABS, wood and other similar mate-
rials on boards made from wood and wood products. The
machine trims only those boards with 90º edges.
The use of other materials unlike those mentioned above
is forbidden; the user shall be the only party liable for
any damage caused.
Always connect the dust collection equipment (see sec-
tion 4.5 General dust collection connection).

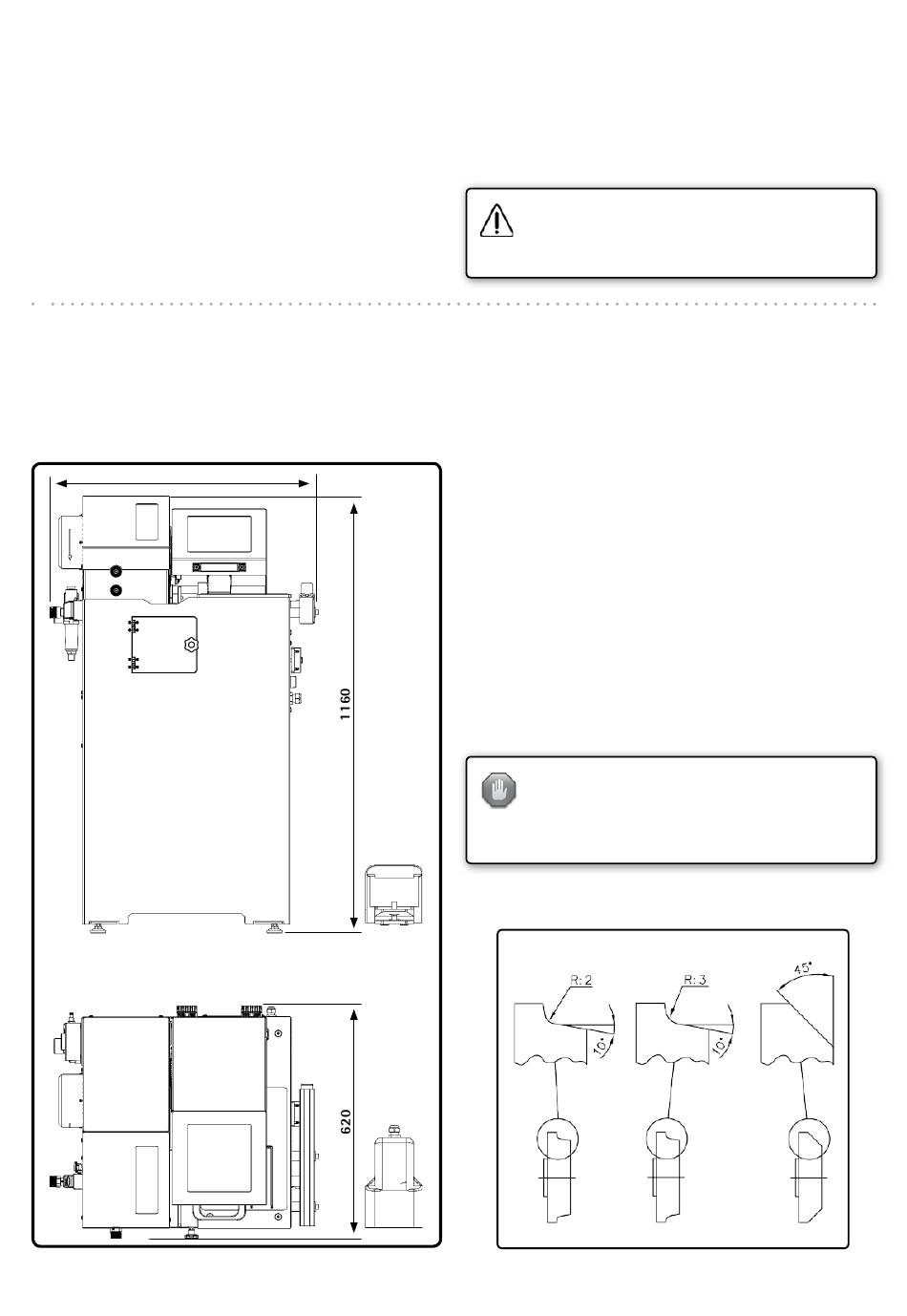

2.3 TECHNICAL SPECIFICATIONS

(Figures 2 and 3)
Working height: 900 mm
Minimum working width (board): 300 mm
720
(Figure 2)
28 - PAE85T / Operating instructions
Do not remove the safety protectors from the machine.
It is mandatory to read the safety warnings in section 3.
It is forbidden to make any modifications to the machine,
as doing so would violate its CE compliance statement.
The user is the only party liable for any da-
mage caused by inappropriate use of the
machine.
Minimum working length (board): 130 mm
With drive bar
Minimum working width: 100 mm
Minimum working length: 130 mm
Minimum board thickness: 9 mm
Maximum board thickness: 45mm
Trimmer speed: 10000/min-
Equipment bits: D. 60 mm Z4-R2-10º
Optional bits: D. 60 mm Z4-R3-10º
D. 60 mm Z4-45º
Bits with radius of between r: 4 and r: 10 upon request
Dust collector connection: Virutex AS382L dust collector
Industrial dust collection connection: D.100
Weight: 100 kg approx.
Pneumatic working pressure: 6 bar
Air consumption at 6 bar: 0.5 litres/min approx.
Voltage: 230V/50Hz
Total single-phase installed 50 Hz power: 0.4 Kw
Use "filtered," "dehumidified" and "non-lu-
bricated" air.
Air lubrication is harmful to the pneumatic
installation.
(Figure 3)
