6
14
11
12
13
(Figure 1)
7
10
8
1
4
15
9
3
2
5

2. TECHNICAL SPECIFICATIONS

2.1 GENERAL DESCRIPTION OF THE TRIMMER

This machine has been designed and manufactured for fully
automatic trimming of board ends, whether they are straight,
curved, bevelled, etc.

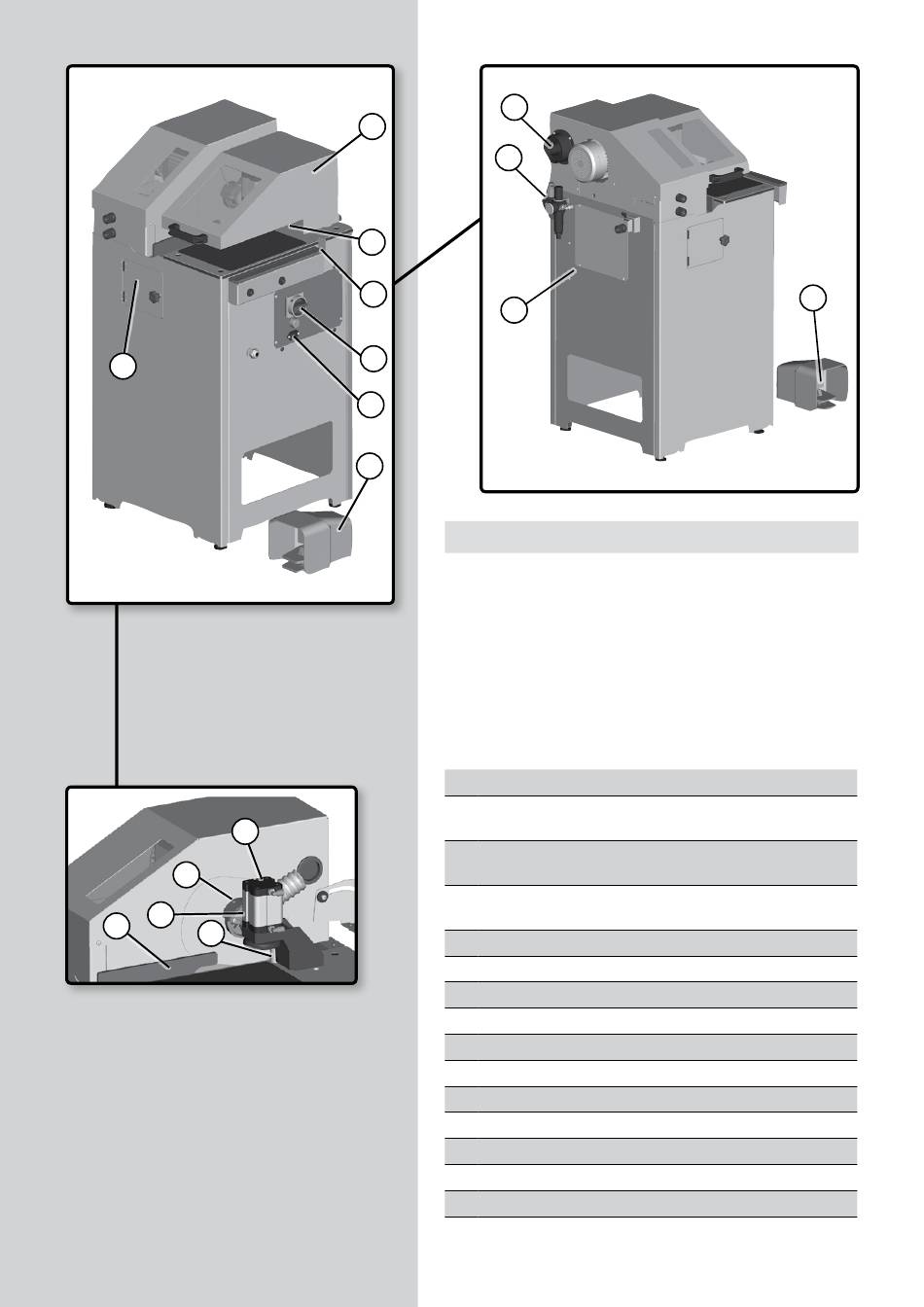

The most important parts of the trimmer are shown below:
(Figure 1)
1 Main switch.
2 Air connection for the pneumatic circuit and safety
valve.
3 Dust collection connection. D.100 and adapter for
Virutex AS382L
4 Socket for the Virutex AS382 dust collector synchro-
nism connection
5 Pneumatic component access cover
6 Access door to tool compartment
7 Access protector for changing copier and cutter bit
8 Travelling guide
9 Board clamp cylinder
10 Board support table
11 Copier
12 Board support bar
13 Board support stopper
14 Trimmer
15 Operating pedal
15
PAE85T / Operating instructions - 27
