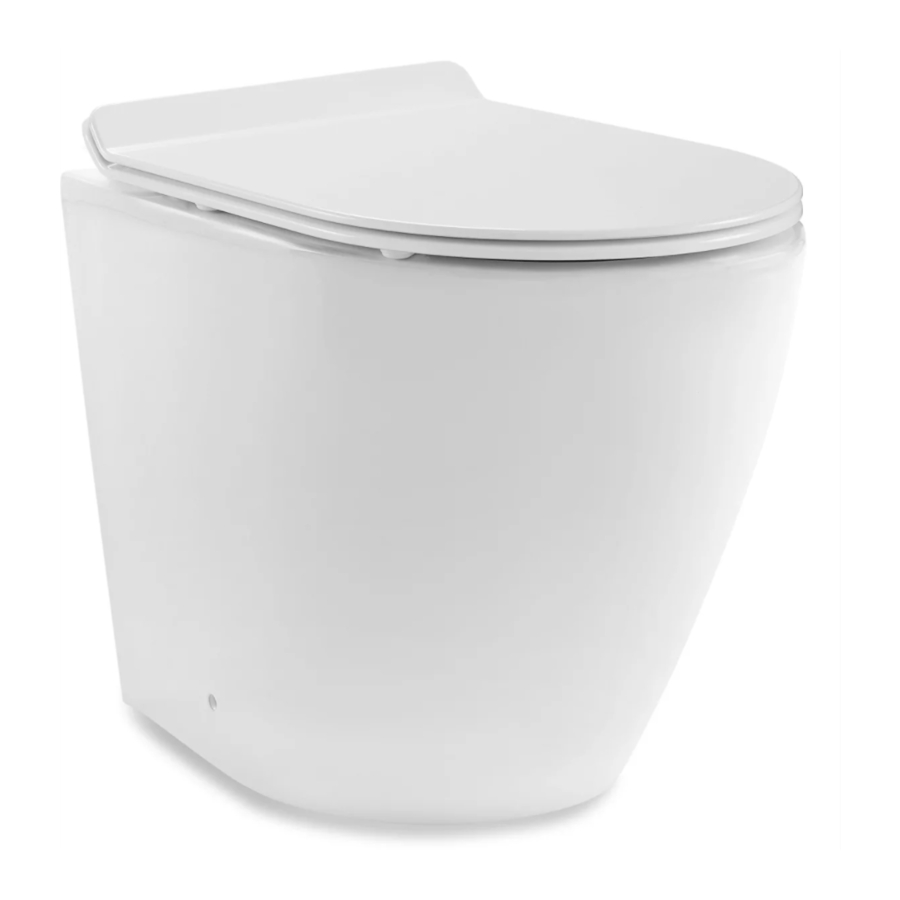

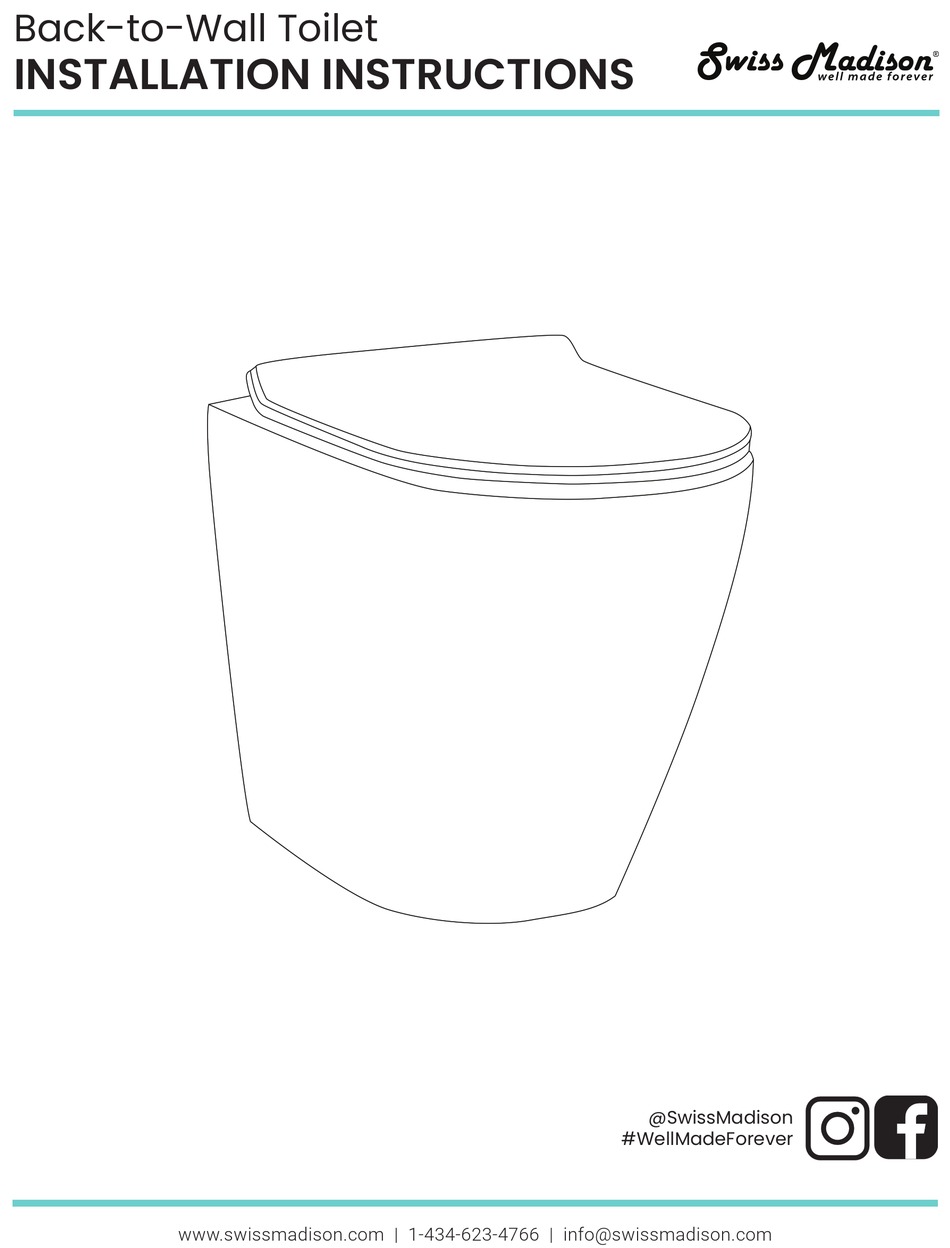

- Page 1 Back-to-Wall Toilet wiss adison INSTALLATION INSTRUCTIONS ® @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. - Page 3 BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS 1. Install Tank 2. Dry Fit Flange and Inlet Pipe · Before toilet bowl installation, a wood frame and · Fully insert straight tube into cistern flushing outlet commercial or residential tank system is required. then connect pipe into discharge outlet.
- Page 4 BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS 5. Fit and Level Bowl 6. Install Anchors and Brackets · Place the bowl facing the flush pipe and waste · Remove the toilet bowl and measure the thickness pipe, then push firmly until it touches the wall to of the bowl.
- Page 5 BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS TOILET SEAT INSTALLATION 2. Construct Hinges 1. Dissassemble · Insert screw and nut into the hole on the hinge. · Disassemble the cover cap and the hinge. · Attach blind hole screw fixing to the bottom of screw.
- Page 6 BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS 5. Adjust and Attach Seat · Align seat to the hinges then firmly tighten the hinges. · Attach seat to the secure hinges. · Adjust seat to align to the bowl. TOILET SEAT USAGE · To remove, push middle button until you hear a “click”, then pull straight up.
-
Page 7: One-Year Limited Warranty
If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
