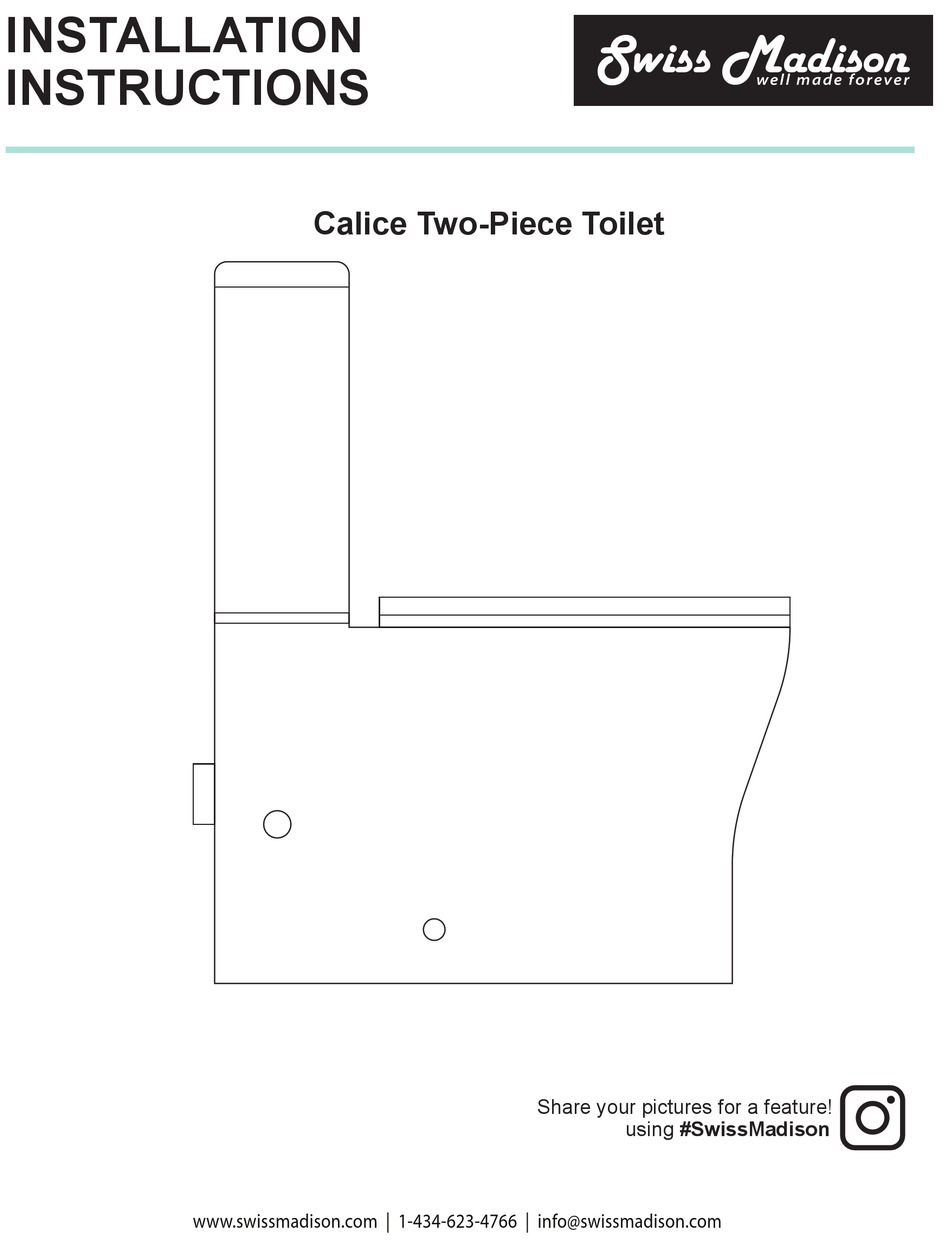

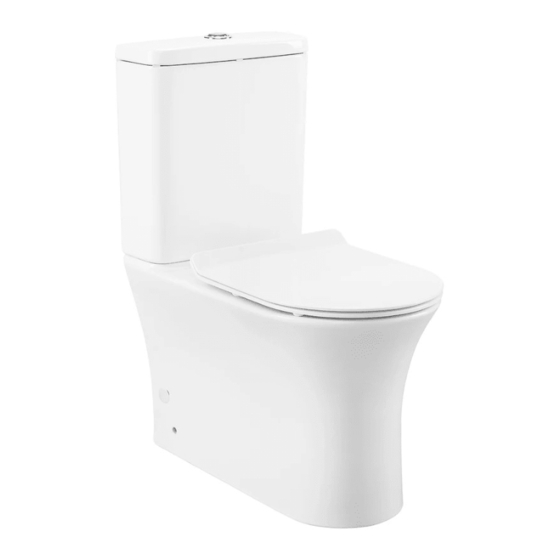

- Page 1 INSTALLATION wiss adison INSTRUCTIONS Calice Two-Piece Toilet Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Prior to Installation: Inspect toilet to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Remove old toilet. Make sure mounting surface is CLEAN and LEVEL General Recommendations: Read installation and maintenance instructions thoroughly before installing the toilet. Be sure to use proper tools and always wear proper personal safety accessories for your protection. - Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison Two-Piece Toilet. We appreciate your business and know you will enjoy your toilet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
-
Page 4: Roughing-In Dimensions
Safety Glasses Pipe Wrench Tubing Cutter Pencil Hacksaw Putty Knife Screwdriver Level Tape Measure Metal File PARTS LIST Swiss One-Piece Toilet Bolts NOTE: Specialized tools may be necessary to install Swiss Madison Two-Piece Toilet, plumbing not included. — 3 —... -
Page 5: Installation Instructions
TWO-PIECE TOILET INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Two-Piece Toilet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1. - Page 6 3. Connect Supply Hose 4. Attach Gasket Thread the supply hose onto the tank. Position the gasket on the bowl inlet. 5. Position Tank onto Bowl Holes should line up so threaded rod can t smoothly connecting the cistern body to the bow. NOTE: Drawings may not exactly de ne contour of china.
-
Page 7: Drill Holes
7. Secure Tank to Bowl Slide the metal washer and the rubber washer onto the bolt. Thread the bolts into the bottom of the tank tighten the bolts using a screwdriver. NOTE: Do not over tighten! Over tightening can lead to the ceramic cracking. Metal Washer Bolt... -
Page 8: Install Hardware
11. Secure Toilet 10. Install Hardware Return toilet to desired location. Install anchors into all pre-drilled locations. Carefully thread the bolts onto the nuts on the bracket. Install brackets onto oor. Tighten to secure into place, do not over tighten. ⁄... -
Page 9: Check For Leaks
14. Connect Push Button Unscrew the big white nut on the push button and insert the button into the hole on the tank. When the rods meet the push buttons, measure the height (H) with a ruler. Unscrew the rods and cut the part H on both rods. Insert the rods back and tighten the small nut. - Page 10 16. Install Toilet Seat ® Place seat hardware over where you inserted the Insert threaded rubber piece into threaded rubber pieces. holes on top of toilet. Place washer onto screw then thread screw through the seat hardware into the rubber piece. Before you fully screw in hardware, be sure to test position by placing the seat on top and making adjustments if needed.
- Page 11 The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
