Summary of Contents for Swiss Madison Avancer Smart Toilet

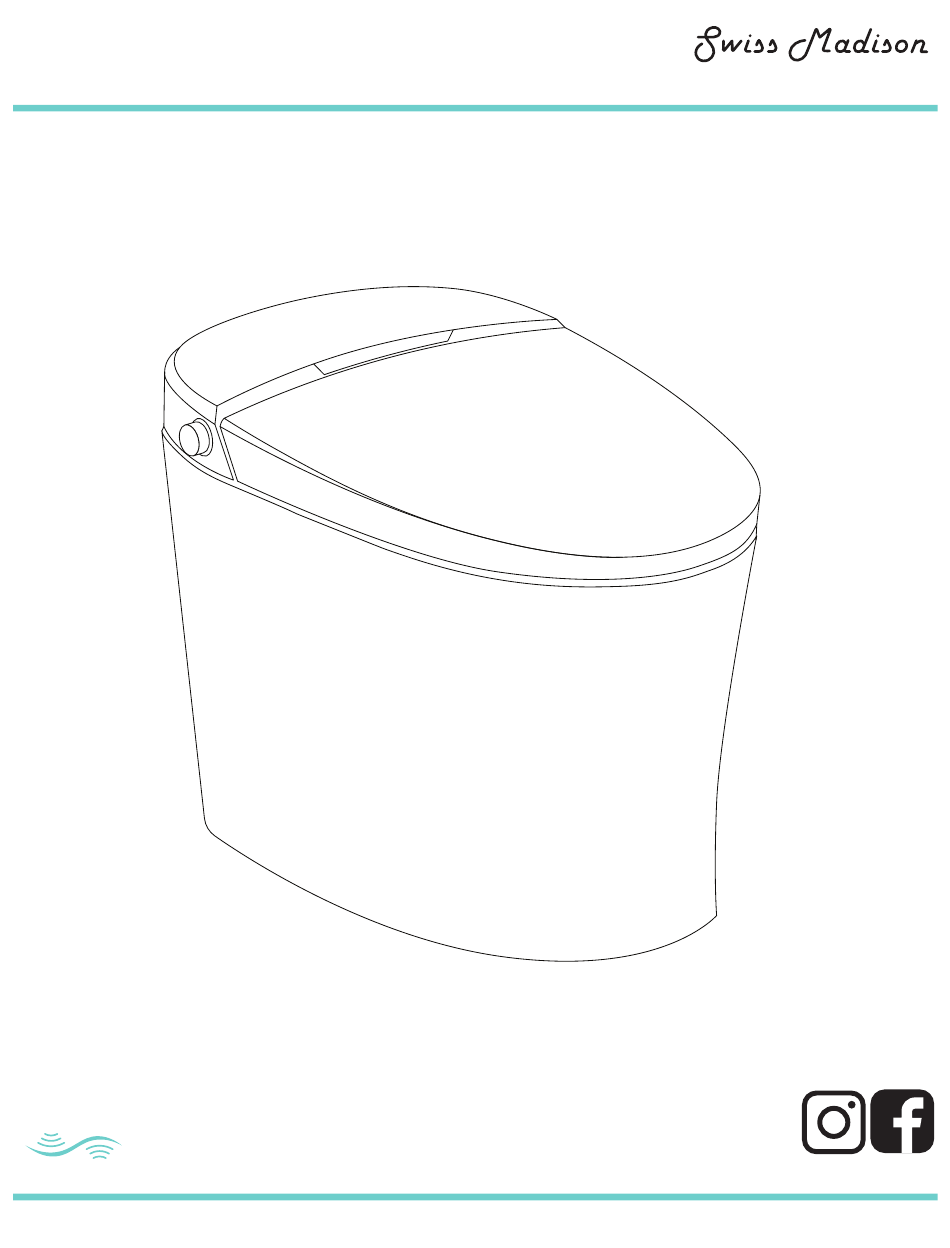

- Page 1 Avancer Smart Toilet ® INSTALLATION INSTRUCTIONS w e l l m a d e f o r e v e r T O U CHLES S @SwissMadison #WellMadeForever technology www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 · · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection.
- Page 3 SMART TOILET INSTALLATION INSTRUCTIONS Heated drying fan Rear cleaning Front cleaning Spray nozzle Remote sensing window Knob Off-seat flush sensor REMOVABLE STICKER Foot flush sensor REMOVABLE STICKER PRODUCT FEATURES: SPECIFICATION PARAMETERS: · Automatic Flushing: Toilet will automatically flush as · Requires power to operate you walk away from the bowl.
- Page 4 SMART TOILET INSTALLATION INSTRUCTIONS TOILET INSTALLATION: 1. Check Pressure 2. Rough-In & Install Angle Valve · The minimum dynamic working water pressure · Measure the wall from behind the toilet to the is 0.09MPa or more (4 gal/min or more), failure middle of the floor drain.
- Page 5 SMART TOILET INSTALLATION INSTRUCTIONS 5. Turn on Angle Valve 6. Install Toilet · Check thread connection and check for leaks. · Install toilet by putting sealing flange into drain Unscrew angle valve counterclockwise to open outlet. This sould be done by two people, the all the way.
- Page 6 SMART TOILET MAINTENANCE & USAGE MAINTENANCE 1. Daily Usage Caution · Turn off power supply before cleaning. · Use only a soft, damp cloth to clean the toilet. Avoid using harsh chemicals. 2. Cleaning Filter · The filter should be cleaned if the water pressure is normal, but the toilet is not flushing normally. ·...
- Page 7 SMART TOILET MAINTENANCE & USAGE USAGE 1. Manual Flushing 2. Activating Foot Sensor Flushing · To turn on foot-sensor flushing, press the “STOP” and · Press the knob to manually activate a full flush. the “FULL FLUSHING” button on the remote simultaneously.
- Page 8 If the problems cannot be solved as per above methods, please disconnect power and contact Swiss Madison for maintenance. CAUTION If the leakage circuit breaker trips off often, the product has an electric leakage. Shut off the power and contact Swiss Madison for maintenance. — 7 —...
- Page 9 SMART TOILET TROUBLESHOOTING WARNINGS DANGER - To reduce the risk of electrocution: · Do not use while bathing. · Do not place or store product where it can fall or be pulled into a tub or sink. · Do not place in or drop into water or other liquid. ·...
- Page 10 SMART TOILET SAFETY IMPORTANT SAFETY INSTRUCTIONS CAUTION - Failure to follow the instruction may cause injury or property damage. 1. Do not install or use the product in wet places as steam room etc. 2. It is recommended to use water-proof electrical outlet which should be lnstalled in the place where is not easily got wet.
- Page 11 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
- Page 12 Avancer Remote ® INSTALLATION INSTRUCTIONS ® w e l l m a d e f o r e v e r @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 13 · · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection.
-
Page 14: Table Of Contents
AVANCER REMOTE CONTENTS Installation Preparation 1. Remote control installation Usage Instruction 1. Remote control illustration 2. Rear/Front cleaning operation 3. Dry operation 4. Water volume adjustment 5. Full flush/ Half flush 6. Spray nozzle position adjustment 7. Energy saver 8. Auto function 9. -
Page 15: Remote Control Installation
AVANCER REMOTE REMOTE INSTALLATION 1. Install Sensor Mount · The installation method depends on the wall it is being installed on. Determine appropriate installation method and follow the instructions below. Method A: Screw fixing - suitable for installation on rough walls. Method B: Adhesive fixing - suitable for installation on tiles and other smooth walls. - Page 16 AVANCER REMOTE REMOTE INSTALLATION Method B: Adhesive Fixing 1a. Prep Wall 1b. Install Wall Mount · · Clean and dry the desired installation area on Remove the adhesive tape on the back of the the wall. Make sure the placement is reachable wall mount and place it firmly against the wall, from the toilet seat.
-
Page 17: Usage Instruction
AVANCER REMOTE USAGE INSTRUCTIONS Rear cleaning/massage Water increasing Nozzle moving forward Front cleaning/massage Water reducing Nozzle moving backward Drying Auto rear cleaning Auto front cleaning Indicator light(only Stop/Energy saver visible when the light is on) Dryer temperature Water temperature Seat temperature Half flush Night light Full flush... -
Page 18: Rear/Front Cleaning Operation
AVANCER REMOTE USAGE INSTRUCTIONS Rear/Front Cleaning Press “REAR/MOVE” button, the indicator light will be on to show the current water temperature level and it will begin rear cleaning. Press the “REAR/MOVE” button again to shift to massage cleaning (the nozzle will move forward and backward). The cleaning will last for one cycle and will stop automatically. -
Page 19: Water Volume Adjustment
AVANCER REMOTE USAGE INSTRUCTIONS Water Volume Adjustment Press “+” or “-” button during rear or front cleaning, the indicator light will be on showing the current water volume adjustment level. The water adjustment has 3 levels. Spray Nozzle Position Adjustment Press “V”... -
Page 20: Energy Saver
AVANCER REMOTE USAGE INSTRUCTIONS Energy Saver Hold the “STOP” button for more than 3 seconds to enter energy saving mode. The indicator light will be off and the energy saving light will be on. Hold the “STOP” button for another 3 seconds to exit energy saving mode. The indicator light will be on and the energy saving light will be off. -
Page 21: Temperature Adjustment
AVANCER REMOTE USAGE INSTRUCTIONS Temperature Adjustment Water Temperature: Press the “WATER TEMP” button to adjust the water temperature level from 0 to 5 during a cycle. The indicator will show the water temperature level if it’s on. When the indicator is off, the water temperature level is 0. NOTE: The water temperature is set at 50°F at level 0. -
Page 22: User Code
AVANCER REMOTE TEMPERATURE ADJUSTMENT User Code The user code needs to be set to avoid disturbance from remote controls when more than one smart toilets are used in the house. Turn on the toilet for setting while turning off others. Press user code combination buttons (Press “STOP”... - Page 23 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
