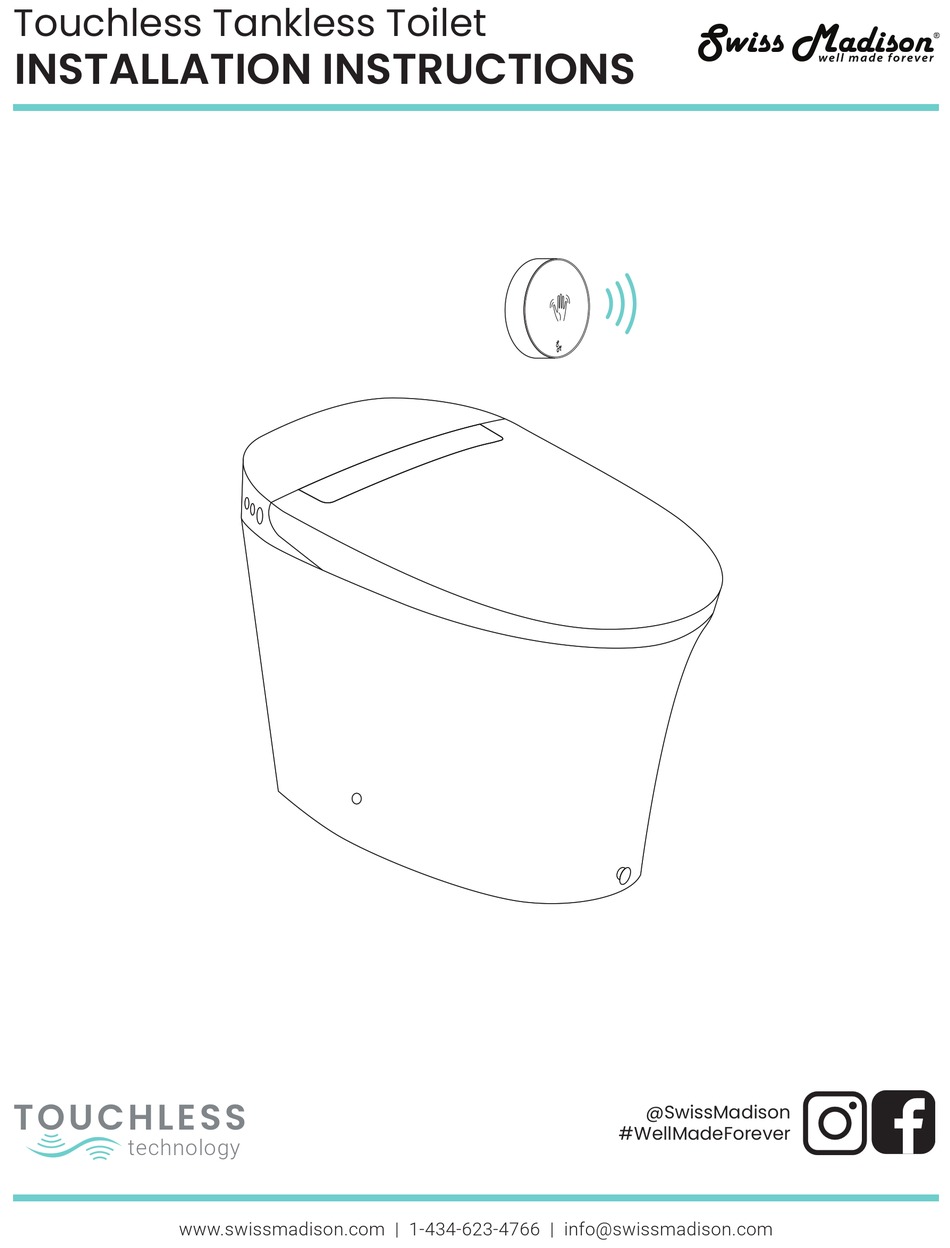

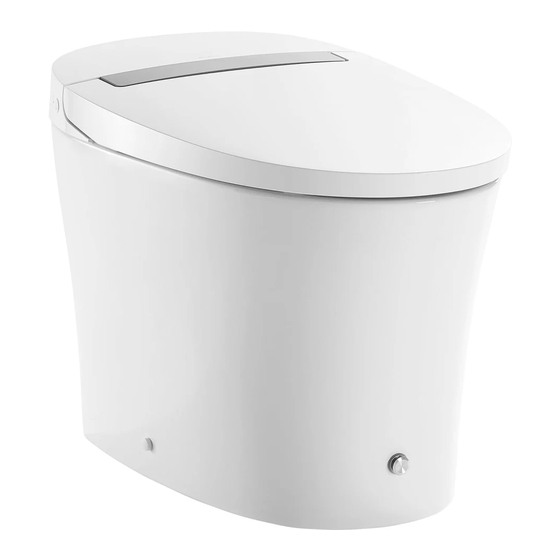

- Page 1 Touchless Tankless Toilet wiss adison ® INSTALLATION INSTRUCTIONS T O U CHLES S @SwissMadison #WellMadeForever technology www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Installation Instructions
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. -
Page 3: Specification Parameters
TOUCHLESS ONE-PIECE TOILET INSTALLATION INSTRUCTIONS Wall sensor Soft-close seat Battery indicator light Manual full flush Ceramic toilet Foot flush button PRODUCT FEATURES: SPECIFICATION PARAMETERS: · Automatic Flushing: Toilet will automatically flush as · Rated Voltage: DC:6V you walk away from the bowl. In the off-seat auto flushing ·... - Page 4 TOUCHLESS TANKLESS TOILET INSTALLATION INSTRUCTIONS TOILET INSTALLATION: 1. Check Pressure 2. Rough-In & Install Angle Valve · The minimum dynamic working water pressure · Measure the wall from behind the toilet to the is 0.09MPa or more (4 gal/min or more), failure middle of the floor drain.
-
Page 5: Install Battery
TOUCHLESS TANKLESS TOILET INSTALLATION INSTRUCTIONS 5. Turn on Angle Valve 6. Install Toilet · Check thread connection and check for leaks. · Install toilet by putting sealing flange into drain Unscrew angle valve counterclockwise to open outlet. all the way. NOTE: When opening for the first time, the angle valve handle has a larger torque. - Page 6 TOUCHLESS TANKLESS TOILET INSTALLATION INSTRUCTIONS WALL SENSOR INSTALLATION: 1. Install Batteries 2. Install Sensor Mount · Put three “AAA” batteries into the sensor and · The installation method depends on the wall it tighten the screws. is being installed on. Determine appropriate ·...
- Page 7 TOUCHLESS TANKLESS TOILET INSTALLATION INSTRUCTIONS Method B: Adhesive Fixing 2a. Adhere Holder to Wall 2b. Lock in Place · Clean and dry the decided installation area of · Align the sensor slot with the sensor holder, the sensor to optimize adhesion. and rotate counterclockwise to lock in place.
-
Page 8: Cleaning Filter
TOUCHLESS TANKLESS TOILET MAINTENANCE & USAGE MAINTENANCE & USAGE 1. Daily Usage Caution · Use only a soft, damp cloth to clean the toilet. Avoid using harsh chemicals. · Off-seat flushing may activate during cleaning. 2. Cleaning Filter · The filter should be cleaned if the water pressure is normal, but the toilet is not flushing normally. ·... -
Page 9: Troubleshooting
· Do not try flushing diapers, sanitary napkins or other unintended items to prevent clogging. · If this product is malfunctioning, stop using immediately, unplug the battery box, turn off water supply, and contact Swiss Madison customer service. · Before installation, disassembly, repair or maintenance, unplug the power and turn off water supply. - Page 10 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
