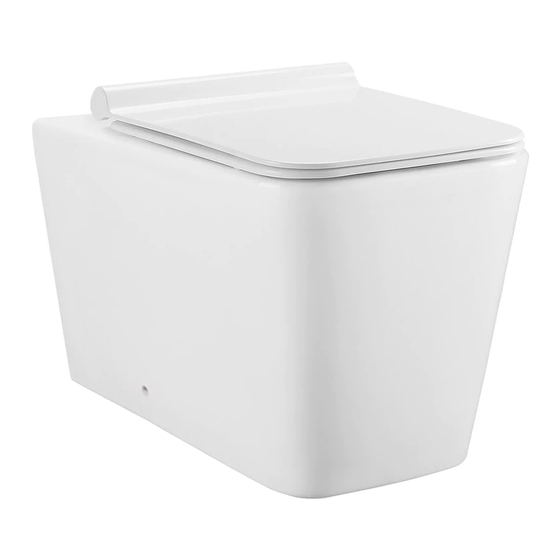

Swiss Madison SM-WT555 Installation Instructions Manual
Back-to-wall toilet
Hide thumbs
Also See for SM-WT555:
- Installation instructions manual (8 pages) ,
- Installation instructions manual (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for Swiss Madison SM-WT555
Summary of Contents for Swiss Madison SM-WT555

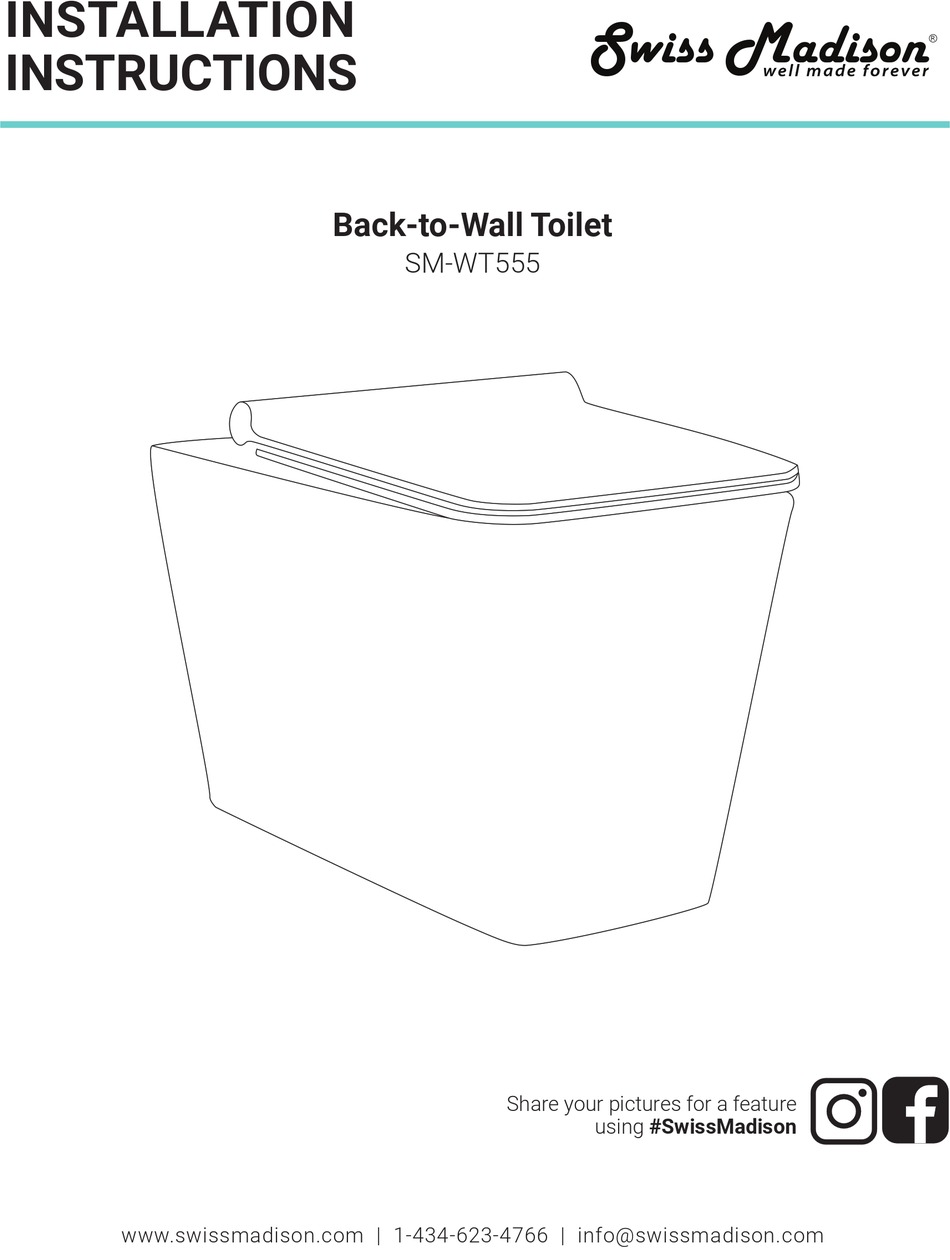

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Back-to-Wall Toilet SM-WT555 Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Prior to Installation: Inspect toilet to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Remove old toilet. Make sure mounting surface is CLEAN and LEVEL. All dimensions are nominal! Be sure to measure your toilet prior to installation. General Recommendations: Read installation and maintenance instructions thoroughly before installing.
- Page 3 Thank you for your purchase! Thank you for purchasing a Swiss Madison Toilet. We appreciate your business and know you will enjoy your product for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
-
Page 4: Parts List
Putty Knife Flexible Supply Tube Hacksaw Screwdriver Sealant PARTS LIST Back-to-Wall Toilet Flange and Inlet Pipe Bolts NOTE: Specialized tools may be necessary to install a Swiss Madison Toilet, plumbing not included. NOTE: All measurements are nominal. — 3 —... -
Page 5: Installation Instructions
BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Toilet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1. - Page 6 3. Cut Pipes Remove the pipes from the bowl then measure the space between the marks on the pipes. Carry this measurement over to the end of the pipes, adding 3/16” and then cut off the end of the pipes. Using a file, smooth the cut ends of the pipe.
- Page 7 5.Fit and Level Bowl Place the ceramic bowl facing the flush pipe and waste pipe, then push firmly until it touches the wall to ensure that both pipes are in the correct position and the correct length. Make sure bowl is level then mark on both sides of the bowl where the anchors will be installed. 6.
- Page 8 7. Install and Secure Toilet Apply lubricant on joint surface of straight tube and connecting pipe, then place the toilet. Make sure the pipes fit in properly and the toilet is making contact with the floor and the wall surface. Once the toilet is placed properly, tighten the bolts to secure the toilet.
- Page 9 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
