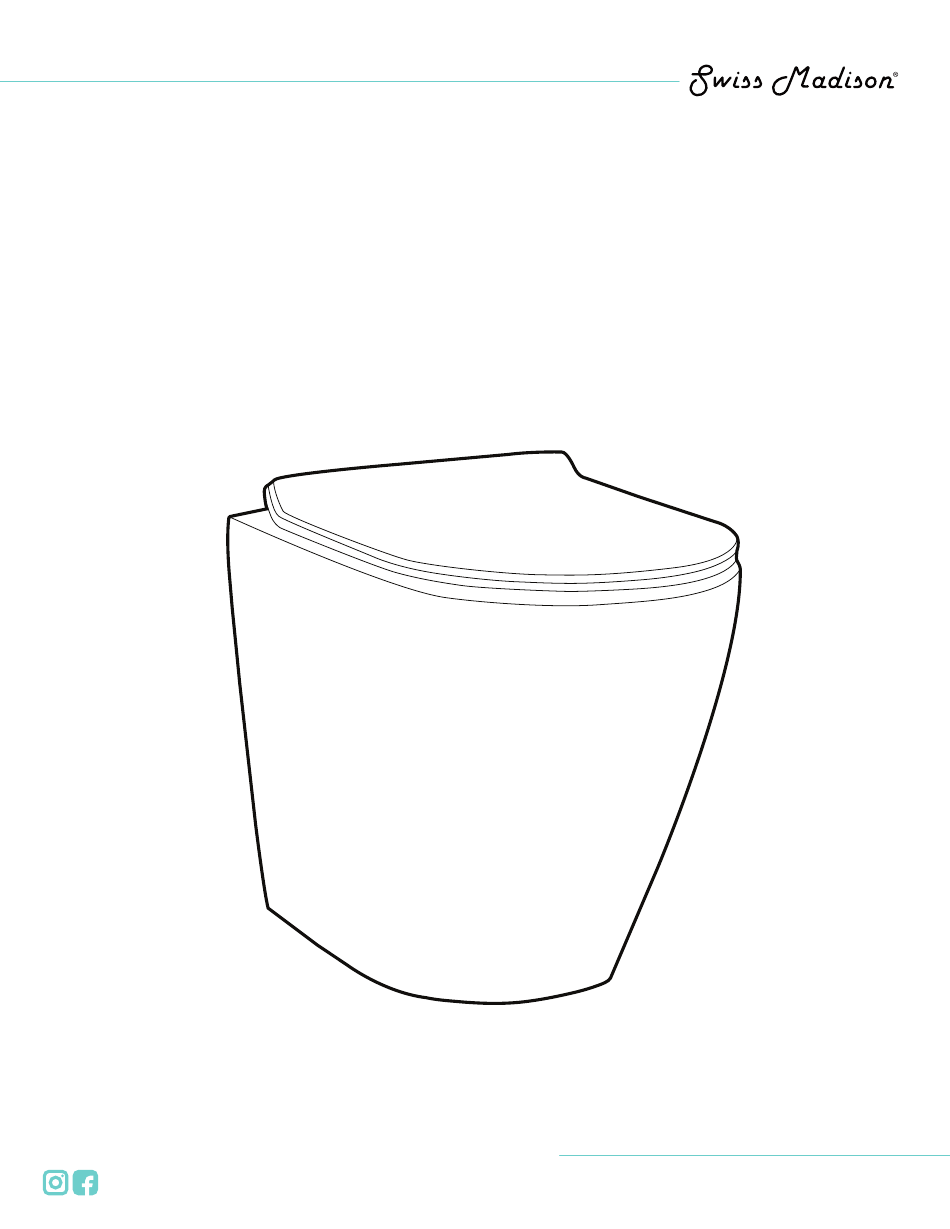

- Page 1 w e l l m a d e f o r e v e r Back-to-Wall Toilet INSTALLATION INSTRUCTIONS www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com @SwissMadison #WellMadeForever...
-
Page 2: Prior To Installation
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. -
Page 3: Installation
INSTALLATION BACK-TO-WALL TOILET INSTALLATION: Install Tank Carrier System Dry Fit Outlet Pipe & Inlet Pipe • Before toilet bowl installation, a wood • Fully insert straight tube into cistern frame and commercial or residential flushing outlet then connect pipe into tank system is required. - Page 4 INSTALLATION BACK-TO-WALL TOILET Fit & Level Bowl Install Anchors & Brackets • Place the bowl facing the flush pipe • Remove the toilet bowl and measure the and waste pipe, then push firmly until it thickness of the bowl. Then apply that touches the wall to ensure both pipes measurement in towards the center from are in the correct position and length...
- Page 5 INSTALLATION BACK-TO-WALL TOILET TOILET SEAT INSTALLATION: Disassemble Construct Hinges • Disassemble the cover cap and the hinge. • Insert screw and nut into the hole on the hinge. • Attach blind hole screw fixing to the bottom of the screw. Pull Attach Hinges Adjust &...
- Page 6 INSTALLATION BACK-TO-WALL TOILET Adjust & Attach Seat • Align seat to the hinges then firmly tighten the hinges. • Attach seat to the secure hinges. • Adjust seat to align to the bowl. Toilet Seat Usage • To remove, push middle button until you hear a “click”, then pull straight up. •...
- Page 7 ® customers with beautiful, durable, long-lasting products. Should there be any defects in materials or craftsmanship under regular use that are discovered within the first year of installation, Swiss Madison ® will provide replacement parts at no charge, or at its discretion, replace any product or part of the product that is deemed defective, under normal installation, use, service or maintenance.
