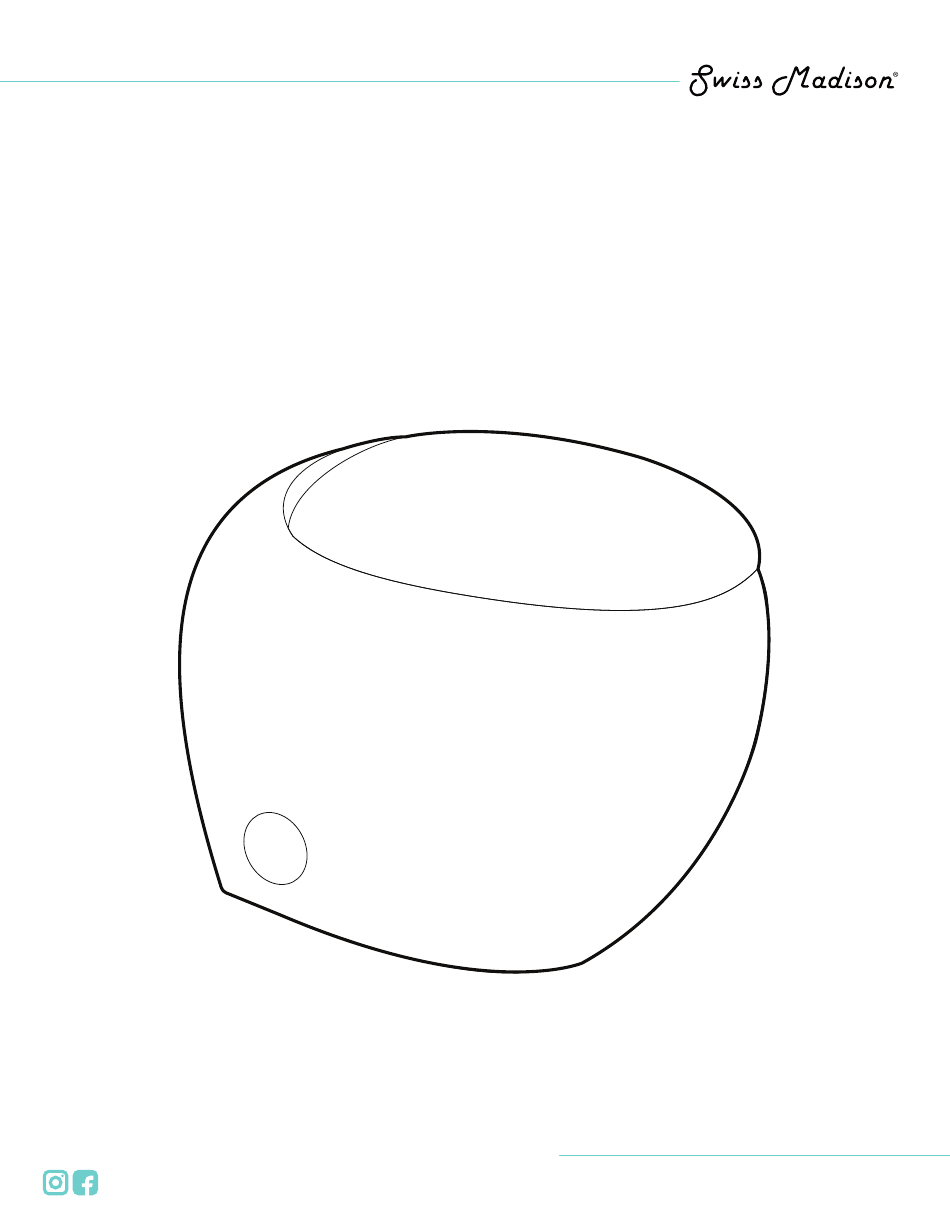

- Page 1 w e l l m a d e f o r e v e r Back-to-Wall Toilet INSTALLATION INSTRUCTIONS www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com @SwissMadison #WellMadeForever...
-
Page 2: Prior To Installation
All dimensions are nominal! Be sure to measure your bathtub prior to installation. · · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss ®... -
Page 3: Installation
INSTALLATION BACK-TO-WALL TOILET INSTALLATION: Install Tank Carrier System Dry Fit Outlet Pipe & Inlet Pipe • Before toilet bowl installation, a wood • Fully insert straight tube into cistern frame and commercial or residential flushing outlet then connect pipe into tank system is required. - Page 4 INSTALLATION BACK-TO-WALL TOILET Fit & Level Bowl Rough-In Toilet • Place the bowl facing the flush pipe • Measure the wall from behind the toilet to and waste pipe, then push firmly until it the middle of the mounting holes. touches the wall to ensure both pipes are in the correct position and length 4"...
- Page 5 INSTALLATION BACK-TO-WALL TOILET Install & Secure Toilet • Make sure the pipes fit in properly and the toilet is making contact with the floor and the wall surface. • Once the toilet is placed properly, tighten the bolts to secure the toilet. Bolt Cover Caps Washer...
- Page 6 INSTALLATION BACK-TO-WALL TOILET TOILET SEAT INSTALLATION: Disassemble Attach Hinges • Disassemble the back cover cap and • Insert hinges with blind hole screw fixings the screws and nuts. attached into holes on the toilet bowl. • Lightly tighten hinges with a screwdriver to allow for later adjustment.
- Page 7 INSTALLATION BACK-TO-WALL TOILET Toilet Seat Usage • To remove the back cap, and disassemble the screws and nuts, then pull straight up. • To re-install, align hinge posts with reference marks on seat, then tighten hinges with a screwdriver, attach the back cap.
- Page 8 ® customers with beautiful, durable, long-lasting products. Should there be any defects in materials or craftsmanship under regular use that are discovered within the first year of installation, Swiss Madison ® will provide replacement parts at no charge, or at its discretion, replace any product or part of the product that is deemed defective, under normal installation, use, service or maintenance.
