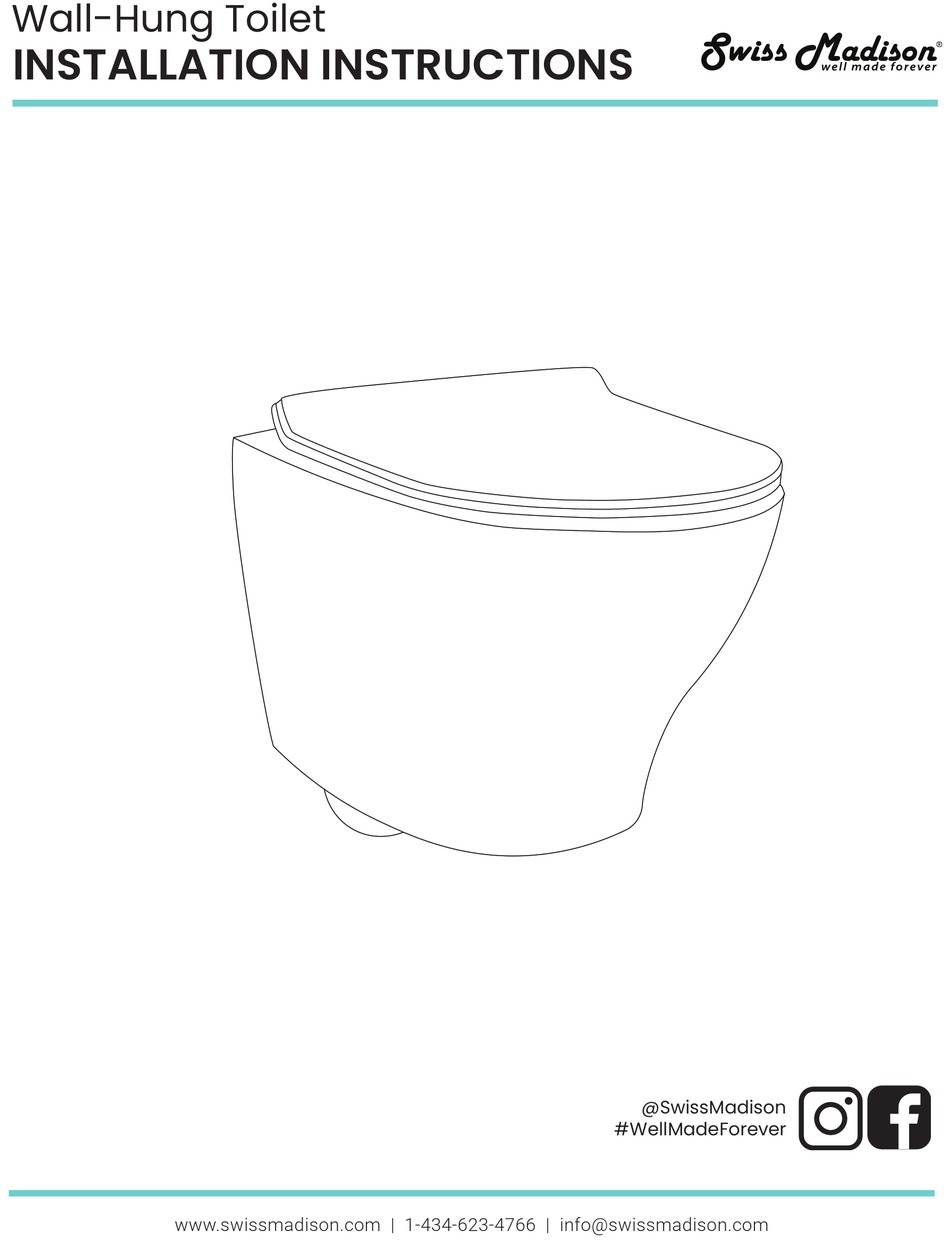

- Page 1 Wall-Hung Toilet wiss adison INSTALLATION INSTRUCTIONS ® @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 · · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection.
- Page 3 WALL-HUNG TOILET INSTALLATION INSTRUCTIONS 1. Install Tank Carrier System 2. Dry Fit Outlet Pipe and Inlet Pipe · Before toilet bowl installation, a wood frame and · Fully insert straight tube into cistern flushing outlet commercial or residential tank system is required. then connect pipe into discharge outlet.
- Page 4 WALL-HUNG TOILET INSTALLATION INSTRUCTIONS 5. Adjust Connecting Bolt Length 6. Anchor Bowl · Measure and adjust the length of the connecting · Hand tighten the notched pegs (B) onto the mounting bolt to be d + 13/16”. bolt, be sure the notch is facing up. C x2 D x2 B x2...
- Page 5 WALL-HUNG TOILET INSTALLATION INSTRUCTIONS TOILET SEAT INSTALLATION 2. Construct Hinges 1. Disassemble · Insert screw and nut into the hole on the hinge. · Disassemble the cover cap and the hinge. · Attach blind hole screw fixing to the bottom of screw. Pull 3.
- Page 6 WALL-HUNG TOILET INSTALLATION INSTRUCTIONS 5. Adjust and Attach Seat · Align seat to the hinges then firmly tighten the hinges. · Attach seat to the secure hinges. · Adjust seat to align to the bowl. TOILET SEAT USAGE · To remove, push middle button until you hear a “click”, then pull straight up. ·...
- Page 7 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
