■ Battery charger

NOTE: Before attaching or detaching a battery pack, BE SURE to turn OFF the
transceiver by rotating [VOL] fully counter clockwise until it makes a "click" sound.
Otherwise, a transceiver malfunction could occur.

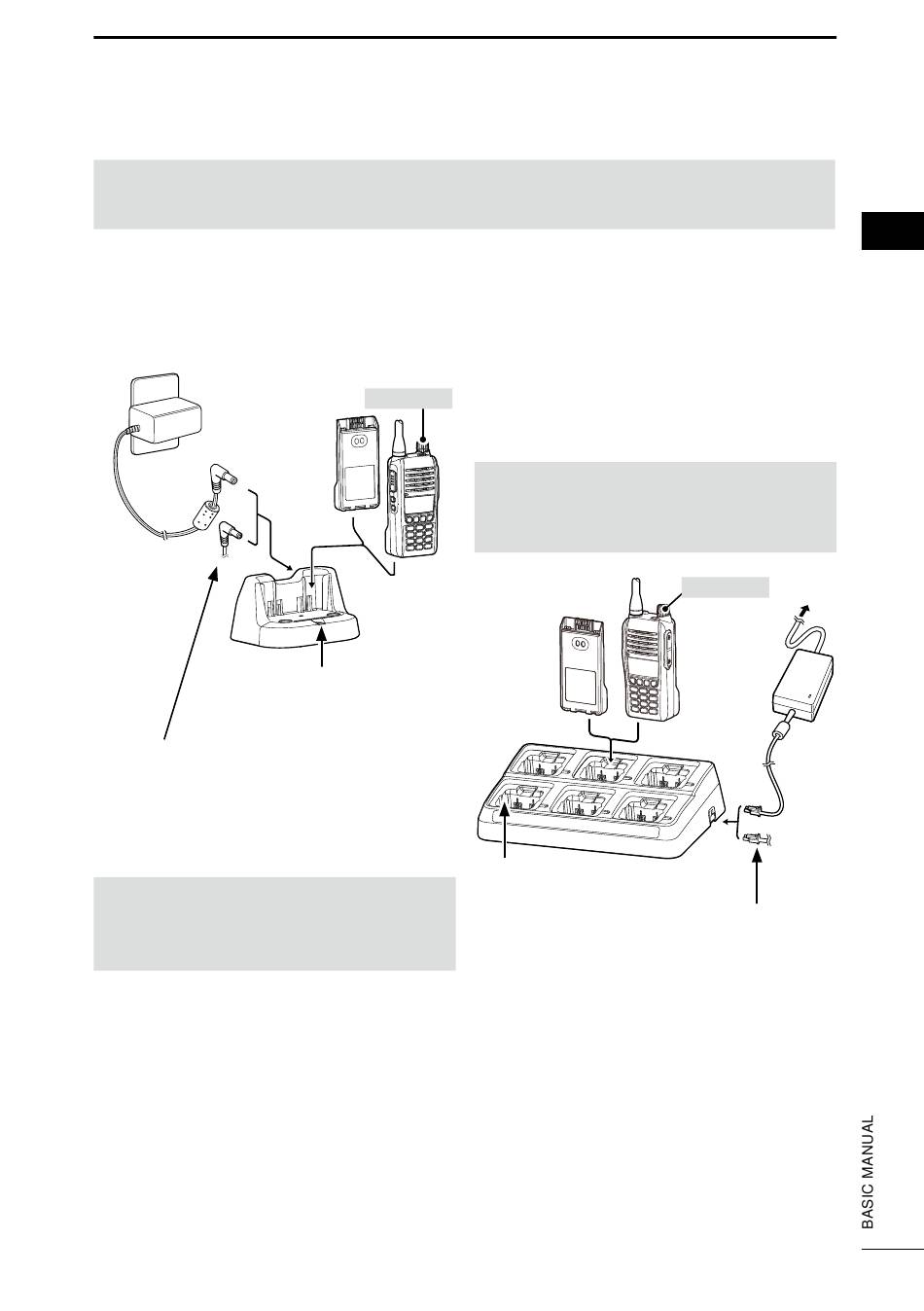

D Supplied battery charger
Charging time:
Approximately 3.5 hours for the BP-280
Power adapter*
Charging indicator
Lights orange: Charging
Lights green: Charged
The CP-23L (for a 12 V cigarette lighter socket)
can be used instead of the power adapter.
* May not be supplied, or the shape may
be different, depending on the transceiver
version.
NOTE: If the charging indicator alternately
blinks green and orange, remove the
battery pack or the transceiver from the
charger, then reinsert it.
Turn OFF
Battery
pack
Battery
charger
BATTERY CHARGING
D Optional BC-214
MULTI CHARGER
Charging time:
Approximately 2 to 3 hours for the BP-280
Additionally needed item
(purchase separately):
The BC-157S AC ADAPTER or
the OPC-656 DC POWER CABLE
CAUTION: DO NOT reverse the polarity
when connecting the OPC-656 to a power
source. This will ruin the battery charger.
Red: +, Black: _
Battery
pack
Charger adapter*
2
Connect to a DC power supply:
12 to 16 V, at least 7 A
Red: +, Black: _
*
1 A different type, or no power adapter is
supplied, depending on the charger version.
*
2 Charger adapter's shape may differ,
depending on the charger version.
2
Turn OFF
Power
adapter*
1
OPC-656
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
6
