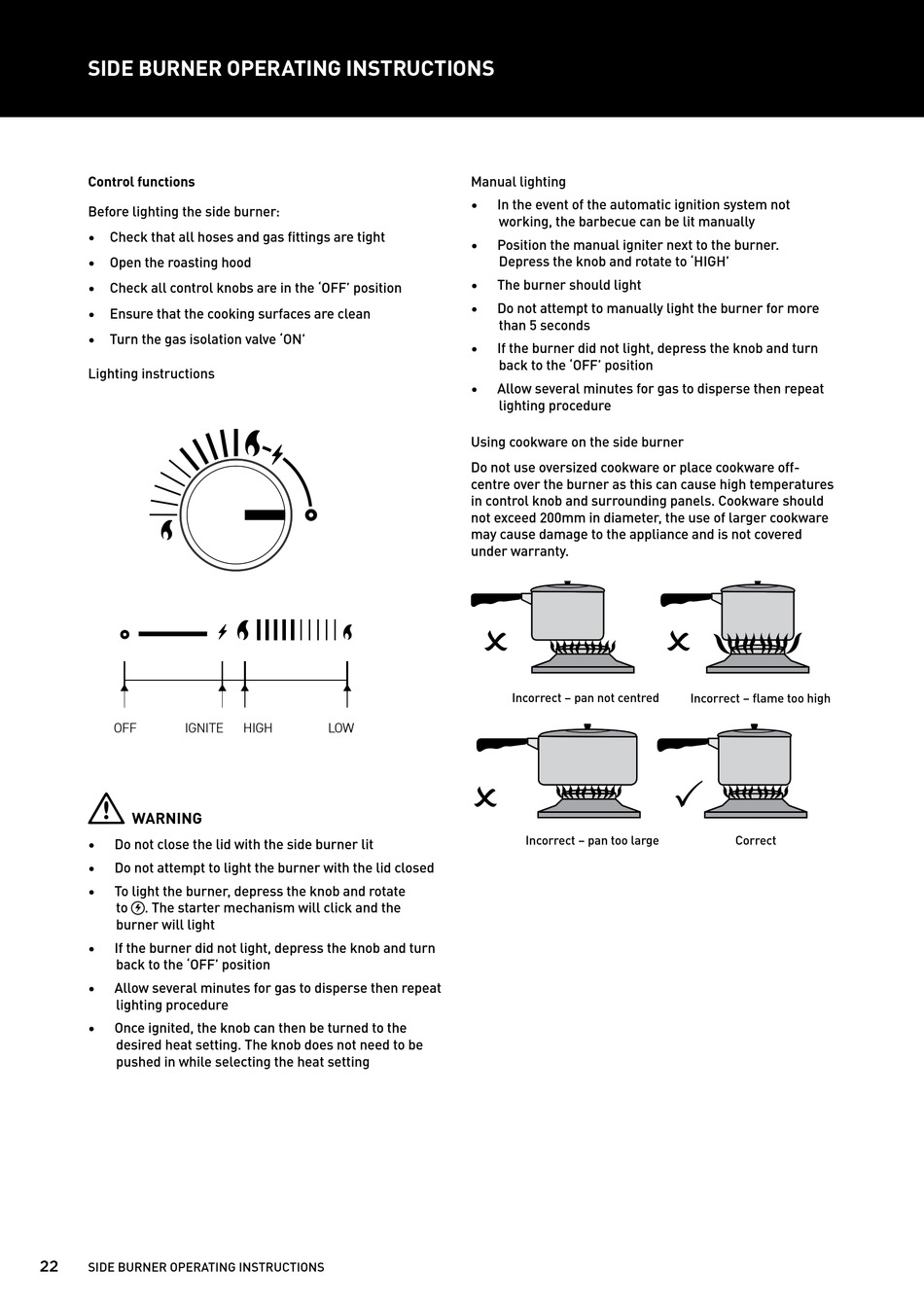

SIDE BURNER OPERATING INSTRUCTIONS

Control functions
Before lighting the side burner:
• Check that all hoses and gas fittings are tight
• Open the roasting hood
• Check all control knobs are in the 'OFF' position
• Ensure that the cooking surfaces are clean
• Turn the gas isolation valve 'ON'
Lighting instructions
OFF
IGNITE
WARNING
WARNING
Do not close the lid with the side burner lit
Do not attempt to light the burner with the lid closed
To light the burner, depress the knob and rotate
to
. The starter mechanism will click and the
burner will light
If the burner did not light, depress the knob and turn
back to the 'OFF' position
Allow several minutes for gas to disperse then repeat
lighting procedure
Once ignited, the knob can then be turned to the
desired heat setting. The knob does not need to be
pushed in while selecting the heat setting
22
SIDE BURNER OPERATING INSTRUCTIONS
HIGH
LOW
Manual lighting
In the event of the automatic ignition system not
working, the barbecue can be lit manually
Position the manual igniter next to the burner.
Depress the knob and rotate to 'HIGH'
The burner should light
Do not attempt to manually light the burner for more
than 5 seconds
If the burner did not light, depress the knob and turn
back to the 'OFF' position
Allow several minutes for gas to disperse then repeat
lighting procedure
Using cookware on the side burner
Do not use oversized cookware or place cookware off-
centre over the burner as this can cause high temperatures
in control knob and surrounding panels. Cookware should
not exceed 200mm in diameter, the use of larger cookware
may cause damage to the appliance and is not covered
under warranty.
Incorrect – pan not centred
Incorrect – pan too large
Incorrect – flame too high
P
Correct
