Side Burner Assembly
Fig. 7)

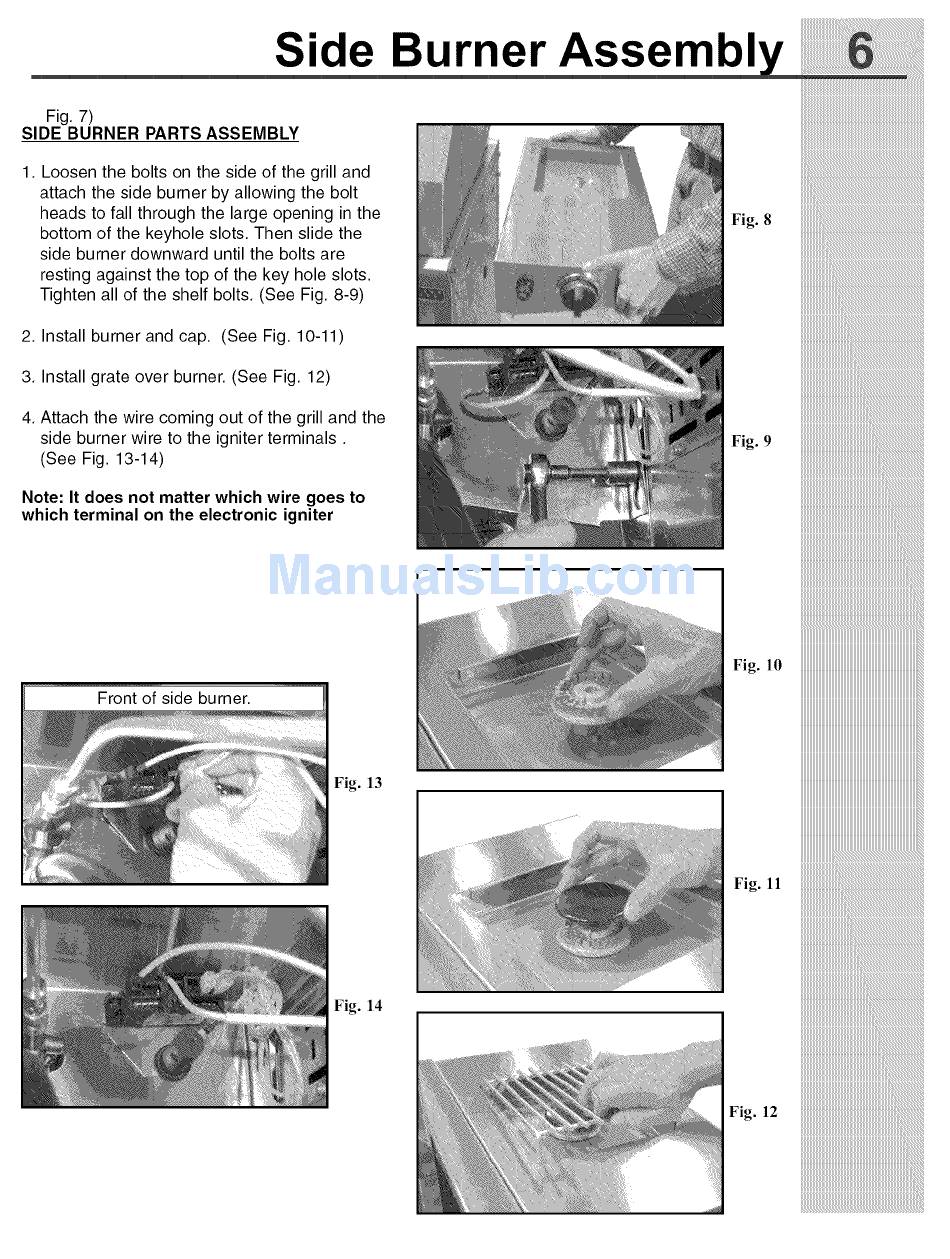

SIDE BURNER PARTS ASSEMBLY
1. Loosen the bolts on the side of the grill and
attach the side burner by allowing the bolt
heads to fall through the large opening in the
bottom of the keyhole slots. Then slide the
side burner downward until the bolts are
resting against the top of the key hole slots.
Tighten all of the shelf bolts. (See Fig. 8-9)
Fig. 8
2. Install burner and cap. (See Fig. 10-11)
3. Install grate over burner. (See Fig. 12)
4. Attach the wire coming out of the grill and the
side burner wire to the igniter terminals.
(See Fig. 13-14)
Note: It does not matter which wire goes to
which terminal on the electronic igniter
Front of side burner.
Fig. 13
Fig. 9
Fig. 10
iiiiiiiiiiiiiiiiiiiiiiiiiiiii
CCCCCCCCCCCCCCCIIII
Fig. 14
Fig. 11
Fig. 12
