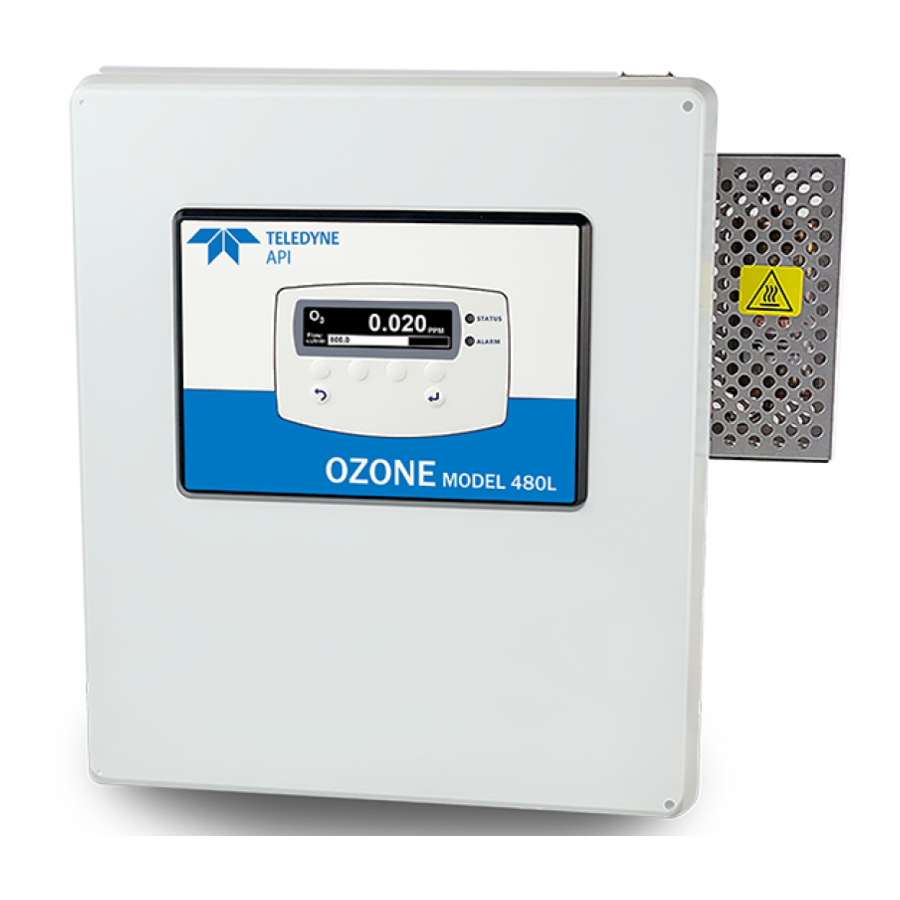

OZONE MONITOR
Copyright 2021
Teledyne API
User Manual
Model 480L
Teledyne API (TAPI)
©
9970 Carroll Canyon Road
San Diego, CA 92131-1106
Toll-Free: +1 800-324-5190
Phone: +1 858-657-9800
Fax +1 858-657-9816
Email:
api-sales@teledyne.com
Website:
http://www.teledyne-api.com/
09419A DCN8342
29 June 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 480L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TELEDYNE API 480L

Summary of Contents for TELEDYNE API 480L

  • Page 1 User Manual Model 480L OZONE MONITOR Teledyne API (TAPI) © 9970 Carroll Canyon Road San Diego, CA 92131-1106 Toll-Free: +1 800-324-5190 Phone: +1 858-657-9800 Fax +1 858-657-9816 Email: api-sales@teledyne.com Website: http://www.teledyne-api.com/ Copyright 2021 09419A DCN8342 Teledyne API 29 June 2021...
  • Page 3 NOTICE OF COPYRIGHT © 2021 Teledyne API Inc. All rights reserved. TRADEMARKS All trademarks, registered trademarks, brand names or product names appearing in this document are the property of their respective owners and are used herein for identification purposes only.
  • Page 4 NEVER use this monitor to sample combustible gas(es)! For Technical Assistance regarding the use and maintenance of this instrument or any other Teledyne API product, contact Teledyne API’s Technical Support Department: Telephone. +1 800-324-5190 Email. api-techsupport@teledyne.com or access any of the service options on our website at http://www.teledyne-api.com/...
  • Page 5 été prévu, l’instrument pourrait se comporter de façon imprévisible et entraîner des conséquences dangereuses. NE JAMAIS utiliser cet instrument pour échantillonner des gaz combustibles! 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 6: Warranty

    Product Return All units or components returned to Teledyne API should be properly packed for handling and returned freight prepaid to the nearest designated Service Center. After the repair, the equipment will be returned, freight prepaid.
  • Page 7 Provides information about that which could either affect accuracy of instrument readings or cause loss of data. Provides information pertinent to the proper care, Note operation or maintenance of the instrument or its parts. 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 8: Table Of Contents

    4. CALIBRATION ....................28 4.1 F ................28 ACTORY ALIBRATION 4.2 Z ............28 ALIBRATIONS 5. OPERATION ....................29 5.1 F ................29 RONT ANEL VERVIEW 5.1.1 Display ......................29 5.1.2 Control Keys ....................30 Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...
  • Page 9 8.2.3 Check Lamp ....................57 8.2.4 Pneumatic Error ..................57 8.2.4.1 Pressure Too High ........................58 8.2.4.2 Pressure Too Low ........................58 8.3 T ................58 ECHNICAL SSISTANCE 9. PRINCIPLES OF OPERATION ..............59 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...
  • Page 10 Figure 3-6. Pneumatic Connections, Single Stream ..............23 Figure 3-7. Pneumatic Connections, Multi-Stream Option Configurations ........23 Figure 3-8. 480L Pneumatic Diagram w/Sample Conditioner and Permeation Gas Dryer Options (single- stream configuration shown)..................27 Figure 5-1. Front Panel Display and Controls ................29 Figure 5-2.

  • Page 11: Introduction

    It is a very stable analyzer, ideal for critical low-level PPM safety and process applications. The 480L is designed to be highly reliable and simple to operate with easy setup and user-friendly menu-driven software that can also be set and monitored remotely.

  • Page 12: Specifications And Agency Approvals

    RS-232 / RS-485 Dimensions (H x W x D) NEMA 4X – 16.17" x 15.96" x 6.8" (410.6mm x 405.4mm x 172.7mm Weight NEMA 4X – 17.6 lb. (8 kg) Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 13: Multi-Stream Specifications

    Stream ID Outputs Mechanical Relays; 50 VDC, 250 mA per output 2.3 APPROVALS This section presents Safety and Electromagnetic Compatibility (EMC) compliance approvals for the Model 480L monitor. 2.3.1 SAFETY IEC/EN 61010-1:2010 (3 Edition), Safety requirements for electrical equipment for measurement, control, and laboratory use.

  • Page 14: Getting Started

    Never allow organic contaminants, including but not limited to peroxides and chlorates, into monitor. Figure 3-1. Model 480L Display and Control Panel The monitor is shipped with this user manual and for rack mount version, a power cord.

  • Page 15: Unpacking

    3.1 UNPACKING Upon receiving the monitor please verify that there is no apparent shipping damage. (If damage has occurred, please advise shipper first, then Teledyne API). Check your packing slip for options that may be included, depending on your order, e.g., disposable sample inlet filters.

  • Page 16: Figure 3-2. Mounting Hole Locations And Dimensions

    Figure 3-2. Mounting Hole Locations and Dimensions Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 17: Ac Power Connection

    Neutral (White): Connect the Neutral wire to the terminal block directly • across from the white wire that leads to the power supply. 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 18: Figure 3-3. Nema Ac Power Connection To Monitor

    Observe local electrical codes when connecting power to the monitor 2. Turn on the 480L by applying power to the monitor. The front panel display will light and display a Teledyne splash screen. The home screen will display the ozone concentration and flow after the monitor begins taking stable readings.

  • Page 19: Electrical I/O Connections

    NEMA enclosure. There are two conduit penetrations on the enclosure, and an additional penetration can be added to one of the walls of the enclosure if needed. Figure 3-4. Interior Location of I/O Connectors 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 20: Analog Output

    • for Voltage output (0-5 VDC), jumper Pins 2-3 on both J15 and J17. 5. If applicable, reinstall/connect Relay Expansion board. 6. Re-secure the front panel. 7. Reconnect power to the monitor. Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 21: Status Outputs

    Electrically these outputs are optically isolated digital outputs that consist of open collector transistors with a common ground. They can be used to interface with devices that accept logic-level digital inputs, such as Programmable Logic Controllers (PLCs). 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 22: High-Current Relay Outputs

    * The state of the global alarm represents all the Hi or Hi-Hi alarm states OR’d together, i.e., if the Hi alarm for one or more of the sample streams is activated, then the Global Hi alarm will be activated. Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 23: Multi-Stream Signal Outputs

    Table 3-5. Status Output States - Failsafe Operation ON, No Error State Detected Status Output Function Sensor OK * Active Invalid Reading Active Check Lam Active Pneumatic Error Active * Failsafe setting does not change System OK behavior. 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 24: Digital Communication Interfaces

    (see Figure 3-4) to a personal computer serial port. If communication cannot be established, it’s possible that the cable is pinned differently, and the signal pinout for the connector can be swapped. See Section 6.2 for additional details. Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 25: Pneumatic Connections

    Sample tubing made from an inert material such as Teflon Note should be used to minimize sample degradation. Figure 3-6. Pneumatic Connections, Single Stream Figure 3-7. Pneumatic Connections, Multi-Stream Option Configurations 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 26: Sample Gas Connection

    Permeation Gas Dryer may be required to lower sample gas humidity. A pneumatic block diagram with the locations of these 480L options is shown in Figure 3-8, followed by a description of each. Please contact the Teledyne API Sales Department for additional information.

  • Page 27: Exhaust Connection

    Due to the additional volume added by the coalescing filter, there is an exception to the Response Time specification for the 480L: when equipped with the Sample Conditioner option, a 480L instrument’s Response Time is <60 seconds to 95%.

  • Page 28: Permeation Gas Dryer Option

    The permeation material is a Teflon™-type compound and has only a minimal effect on the ozone concentration in the sample stream. When the 480L is equipped with this option, the unit has been calibrated at the factory to compensate for any ozone loss in the permeation dryer.

  • Page 29: Pneumatic Flow Diagram

    3.6 PNEUMATIC FLOW DIAGRAM Figure 3-8. 480L Pneumatic Diagram w/Sample Conditioner and Permeation Gas Dryer Options (single-stream configuration shown). 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 30: Calibration

    Calibrations are an important part of maintaining accuracy. 4.1 FACTORY CALIBRATION The Model 480L is calibrated to NIST traceable standards on the 0-1 ppm range prior to shipment. A calibration certificate for your instrument can be purchased from Teledyne API if required. Teledyne API also recommends that the Model 480L be re-calibrated once a year.

  • Page 31: Operation

    The monitor returns to Auto Mode when the user exits the Manual Mode screen or when a timeout has been exceeded (configurable in Setup>Vars). 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 32: Control Keys

    Hi Alarm or a Hi Hi Alarm (and in the case of a multi-stream monitor, it also shows which stream(s) is(are) affected). Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 33: Front Panel Menus

    5.2 FRONT PANEL MENUS The 480L has an interactive menu structure that can be operated from the front panel. From within this menu structure, the operator can view real-time parameters such as temperature and pressure, view configuration information, and edit setup parameters such as alarm limits.

  • Page 34: Sensor Menu

    4 mA 1.25 V 8 mA 2.50 V 12 mA 3.75 V 16 mA 100% 5.00 V 20 mA Press the Back button to exit from the Analog Step test function. Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 35: Zero Calibration

    If you are unsure regarding the suitability of a particular source of calibration gas, contact Technical Support at Teledyne API for assistance. In the Diag>Cal>Span Cal menu, use the buttons under the Up/Down arrows to set...

  • Page 36: Flow Calibration

    HI HI ALARM Enable/disable HI-HI alarm ON/OFF operation and set trigger value. RANGE Concentration range for specified 1.0 PPM 1.0 – 500.0 stream. Used to scale the analog output. Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...
  • Page 37 ** The alarm cannot be reset if the ozone reading has not come down below the alarm set point. Non-latching alarms will automatically reset when the alarm condition is removed. The Reset button has no effect when configured for alarms set to LATCHING OFF. 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 38: Setup-Vars Menu

    SETUP-VARS M 5.2.4.2 The VARS menu allows viewing and editing of various global setup variables (stored in the instrument’s non-volatile memory) that affect how the 480L operates. Table 5-5 lists and describes these variables. Table 5-5. VARS List and Descriptions...

  • Page 39: Setup>Comm Menu

    When the 480L first switches to a new sample stream, the instrument goes through a 30-second dwell phase where sample gas is pulled from the new sample stream, but no readings are taken.

  • Page 40: Multi-Stream Manual Mode

    For applications where Manual mode is the preferred mode of operation, this timeout feature can be turned off. See Section 5.2.4.2 for details on changing this setting. Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 41: Digital Communications

    DIGITAL COMMUNICATIONS The 480L comes equipped with digital communications capability that can be connected to computer or a digital data acquisition system (DAS). See Section for configuration information. There is a serial communications connector that can be configured for RS-232 or RS-485 and an Ethernet connector that uses Ethernet 10 Mbit standard.

  • Page 42: Serial Configuration - Rs-232 And Rs- 485

    The serial port setup for RS-232/RS-485 configuration is shown in Table 6-1. Table 6-1. RS-232/RS-485 Port Setup Property Value Baud Rate 57600 Data Bits Parity None Stop Bits Flow Control None Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 43: Figure 6-1. Rs-232/Rs-485 Signal Configurations

    Figure 6-1. RS-232/RS-485 Signal Configurations 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 44: Modbus Register Maps

    6.3 MODBUS REGISTER MAPS 6.3.1 MODBUS COMMANDS SUPPORTED Table 6-2 lists the MODBUS commands that are supported by the 480L. Note that the “Write” commands will only work with registers that are configured as Read/Write, see Section 6.3.4. The “Read” commands can be used with any register.

  • Page 45: Real-Time Concentration And Status Registers (Read Only)

    Status, 1= ON Stream 4 HI Alarm Status, STREAM_4_HI_ALARM Boolean 1= ON Stream 5 HI Alarm Status, STREAM_5_HI_ALARM Boolean 1= ON Stream 6 HI Alarm Status, STREAM_6_HI_ALARM Boolean 1= ON 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 46: Instrument Setup And Configuration Registers (Read / Write)

    1=ON Stream 2 Enable, STREAM_2_ENABLE Boolean 1=ON Stream 3 Enable, STREAM_3_ENABLE Boolean 1=ON Stream 4 Enable, STREAM_4_ENABLE Boolean 1=ON Stream 5 Enable, STREAM_5_ENABLE Boolean 1=ON STREAM_6_ENABLE Boolean Stream 6 Enable, Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...
  • Page 47 Non-Latching Holding Registers (Read/Write) Register Description Tag Name Data Type Address Bits Stream 1 Monitoring Duration STREAM_1_DURATION Integer Stream 2 Monitoring Duration STREAM_2_DURATION Integer Stream 3 Monitoring Duration STREAM_3_DURATION Integer 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...
  • Page 48 Stream 3 Analog Range (PPB) STREAM_3_RANG Float(Double) Inverse Stream 4 Analog Range (PPB) STREAM_4_RANG Float(Double) Inverse Stream 5 Analog Range (PPB) STREAM_5_RANG Float(Double) Inverse Stream 6 Analog Range (PPB) STREAM_6_RANG Float(Double) Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 49: Maintenance And Adjustments

    7.1 MAINTENANCE SCHEDULE Table 7-1 below outlines the suggested maintenance procedures and intervals for ensuring the 480L continues to operate accurately and reliably. These intervals are based on continuous (24 hours a day – 7 days a week) operation. These intervals may be lengthened for intermittent operation.

  • Page 50: Instrument Layout

    High voltage may be present when power is connected to the instrument. Figure 7-1 shows the internal layout of the 480L as reference in the procedures that follow. Note the locations of the Power Supply and the Electrical Terminal Block where high voltage (line voltage) may be present when power is connected to the instrument.

  • Page 51: Internal Particulate Filter Replacement

    9. Reconnect tubing; note that outlet fitting of pump should be connected to tubing routed to the EXHAUST fitting. 10. Re-install new tubing clamps or cable-ties to secure tubing connections. Figure 7-2. J9 Pump Connector on Mainboard 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 52: Sensor Valve Replacement

    7.5 SENSOR VALVE REPLACEMENT 1. Disconnect power from the 480L. 2. Open front panel and locate sensor module assembly (Figure 7-1). 3. Noting the orientation of the valve, unplug the two-pin valve connector from the sensor PCA. 4. Remove the silver retainer clip from the top of the valve. A pair of pliers may be used to slide off the retainer clip.

  • Page 53: Uv Led Replacement

    LED housing and removing the two larger socket head screws (Figure 7-4) to remove/replace the LED. After installing and securing the replacement UV LED PCA assembly, it is recommended to perform a Zero Cal (see section 5.2.3.2). Figure 7-4. UV LED Access 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 54: Sensor Module Replacement

    Then remove the four large socket head screws (Figure 7-5) that hold the mounting bracket in place. Do the reverse to install the replacement module. Figure 7-5. Sensor Module Removal Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 55: Display Assembly Replacement

    11. Remove the tape backing from the ferrite core and press the ferrite core onto the door until well bonded. 12. Plug the display cable into the mainboard. 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 56: Cleaning Exterior Surfaces

    6. Secure the board in place by re-installing the same four (#6-32x3/8”) screws into the expansion posts. Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 57: Troubleshooting

    Critical warnings are those that would normally require immediately removing the monitor from service and repairing it. Non-critical warnings are those that indicate some maintenance would be useful, but not immediately required. If Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 58: Figure 8-2. Status Outputs

    Reference < 250.0 mV OR Reference < 125.0 mV OR Measure >1230.0 mV Pneumatic Yellow Closed Pressure < 9.0 psia Error Pressure > 14.9 psia Flow <500cc/min Flow > 1100 cc/min Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...

  • Page 59: Sensor Ok

    From the Sensor menu area, view the Flow and Pressure value, compare them to the allowable limits described in Table 8-1 and take appropriate action as described below. 09419A DCN8342 Teledyne API Model 480L O Monitor User Manual...

  • Page 60: Pressure Too High

    If the value then drops to within the acceptable range, then one of the sample lines is at elevated pressure. If the inlet is being pressurized, then the design of the sample system should be reviewed and corrected. Contact Teledyne API Technical Support for assistance. 8.2.4.2 RESSURE Something may be restricting the flow through the monitor, causing the sample pump to pull a vacuum on the sensor module.

  • Page 61: Principles Of Operation

    UV radiation. Lastly, the absorption path length determines how many molecules are present in the column of gas in the absorption tube. Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...
  • Page 62 Mainboard on the CAN network. It acts on the messages from the Mainboard, and it conducts local operations, such as activating valves or controlling manifold temperature. Teledyne API Model 480L O Monitor User Manual 09419A DCN8342...
