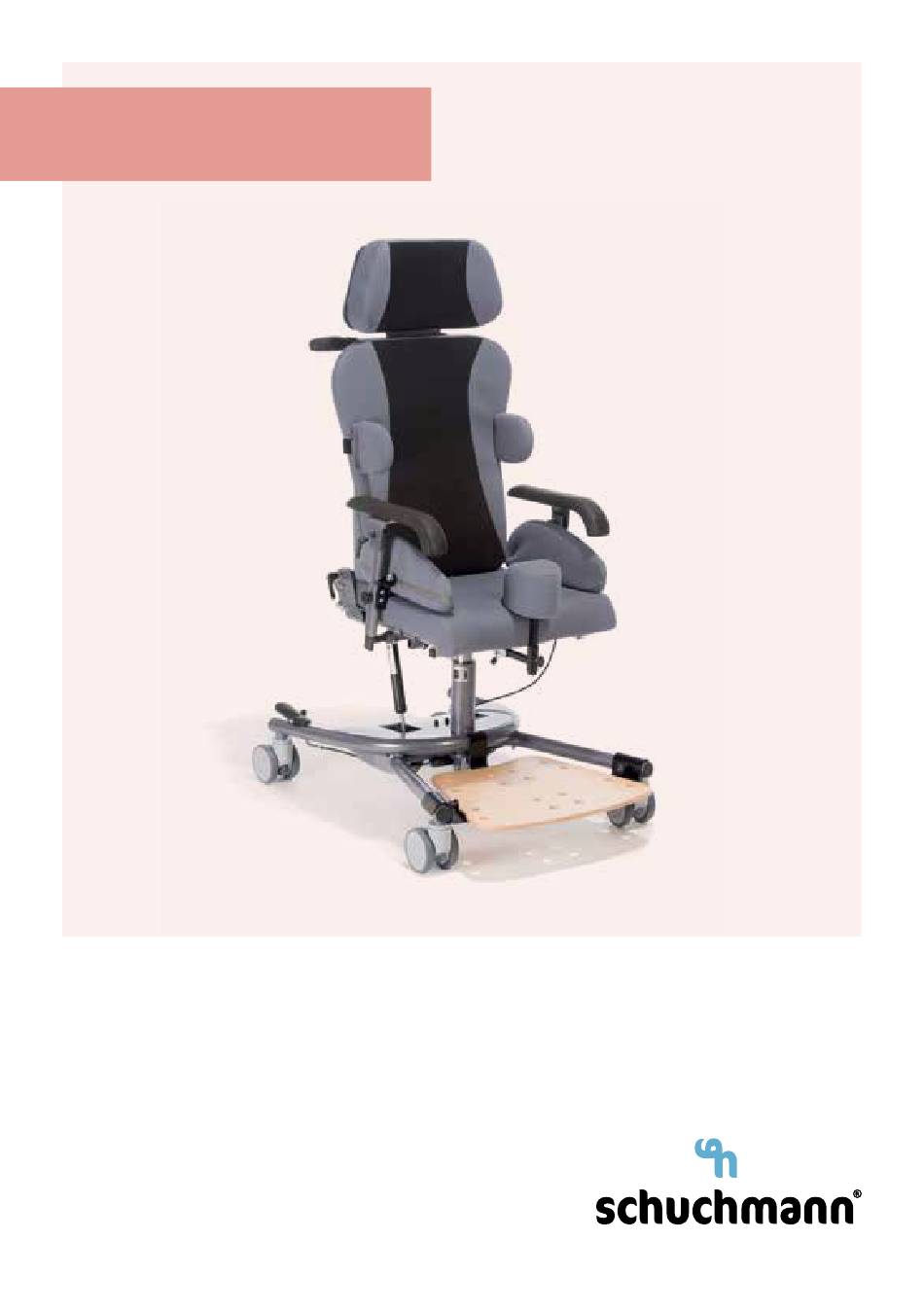

  • Page 1 Instructions for use. madita maxi. The proven, solid therapy chair.
  • Page 3 Please note that gui- delines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product.. Your schuchmann-Team...
  • Page 4: Table Of Contents

    Contents. 1. Preparation..................06 1.1 Transport........................06 1.2 Safety measures prior to use ................06 1.3 Sicheres Entsorgen ....................06 1.3.1 Verpackung.................... 06 1.3.2 Produkt ....................06 1.4 Anbringungsort der Gebrauchsanleitung ..........06 2. Product description................07 2.1 Materialinformationen..................07 2.2 Handhabung / Transport .................07 2.3 Anwendungsbereiche, bestimmungsgemäße Verwendung ...07 2.4 Nicht bestimmungsgemäße Verwendung / Warnhinweise ...
  • Page 5 Contents. 8. Identification.................18 8.1 EG-Konformitätserklärung .................18 8.2 Serial number / date of manufacture ............19 8.3 Product version .......................19 8.4 Issue of the document ..................19 8.5 Name and address of the manufacturer / specialist dealer supplying the product ................19...
  • Page 6: Preparation

    Separate the raw materials used in the product for recycling according to their classification. (see material information under point 2.1) 1.4 Anbringungsort der Gebrauchsanleitung Ensure that these Instructions for use remain with the product. Additional copies are available at www.schuchmann.de.
  • Page 7: Product Description

    (fold up foot support, set lowest seat height etc.) 2.3 Application areas, use according to the intended purpose madita maxi. therapy chair has been designed for children and teen- agers who are unable to sit or stand independently, but whose limited torso...
  • Page 8: Nicht Bestimmungsgemäße Verwendung / Warnhinweise

    • The max. load (see point 5) may not be exceeded. • Do not use the therapy chair if it has defective, worn or missing parts. • For reasons of fire safety, the therapy chair may not be placed close to an open fire or any other strong sources of heat such as electric or gas heaters. • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the child. • Only use the therapy chair if all components have been correctly mounted and adjusted. • Please ensure that none of the user‘s extremities are in the respective area when making adjustments of any kind to minimise the risk of injury.
  • Page 9: Auflistung Zubehör

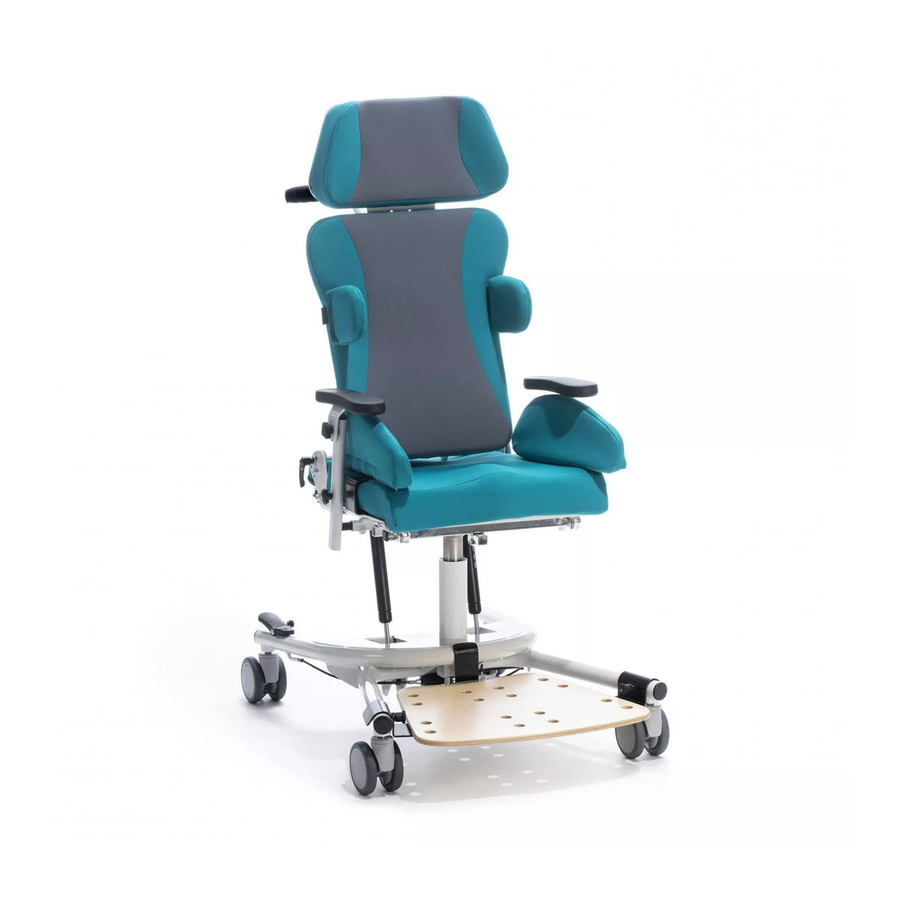

    2. Product description. 2.6 Auflistung Zubehör • standard headrest – padded, height adjustable • headrest with directional control – padded, height and angle adjustable • shell-shaped headrest – padded, height and angle adjustable • side support pads • hip support pads • abduction wedge • communication tray • incontinence coating for the seating area • pluggable wheelbase extension • wooden footrest • pluggable footrest • correction aids 2.7 Product overview standard headrest push handle backrest side support pads armrests...
  • Page 10: Settings

    3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user‘s extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. 3.1 Castors The therapy chair should always be prevented from rolling away inadver-...
  • Page 11: Seat Height

    3. Settings. 11 11 3.3 seat height madita maxi. can be adjusted up to 12 cm in height, delivery takes place in lowest setting. Operate the crank (A) underneath the base frame to change the height. In addition, both gas springs must be readjusted in the height.
  • Page 12: Seat Depth

    3. Settings. 3.5 seat depth Seat depth can be adjusted after loosening the two grub screws (A) on both sides of the chair. Please retighten the grub screws after ad- justment! 3.6 backrest height To adjust the height of the backrest, the two twist grips (B) on the back of the backrest should be loosened.
  • Page 13: Accessories

    4. Accessories. 4.1 Headrest The headrest is height adjustable. Loosen all four nuts (A) on the back of the backrest and bring the headrest into the desired position. Please retighten all nuts when adjus- ted! 4.2 Thorax pelotte pads Thorax pelotte pads are height- and widthadjustable.
  • Page 14: Footrest

    4. Accessories. 4.5 Footrest The knee angle adjustment has a snap-lock joint which allows an adjustment in small steps. Both twist grips (A) must be loosened to adjust the angle. Please loosen the grub screws (B) on the back of the footrest to adjust the height.
  • Page 15: Wheel Base Extension

    30° in the washing machine. Please do not dry the covers in a dryer and do not use aggressive cleaning agents or simi- lar products. Please also pay attention to our general cleaning and hygiene www.schuchmann.de/maditamaxi advice. You can find them at 5.2 Repairs Please carry out a daily visual inspection and check the therapy chair regu- larly for cracks, breaks, missing parts and malfunctions.
  • Page 16: Technical Data

    5. Instandhalten und Reinigen. No disassembly is required prior to re-use. In the case of storage, it is recom- mended to fold the product to the smallest dimension to save space. 6 . Technical Data. Dimensions - basic model Seat depth 36 - 47 cm Seat width 34 - 44 cm...
  • Page 17: Guarantee

    7. Guarantee. The two-year statutory guarantee period shall apply for all products. This guarantee period shall begin with the delivery or handover of the goods. Should a verifi able material or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion.
  • Page 18 8. Identification. 8.1 EG-Konformitätserklärung Company Schuchmann GmbH & Co.KG Dütestr. 3 D-49205 Hasbergen Tel.: +49 (0) 54 05 / 909 - 0 Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classified as product class 1 madita maxi. The proven, solid therapy chair. Art.-No.: 30 03 000 The relevant regulations of the regulations and guidelines listed below accord with: • EU Directive 93/42/EEC for medical products...
  • Page 19 - Change status E; Issue 09.2018 8.5 Name and address of the manufacturer / specialist dealer supplying the product This product was manufactured by: Schuchmann GmbH & Co. KG Dütestraße 3 · 49205 Hasbergen Tel. +49 (0)5405/909-0 · Fax +49 (0)5405/909-109 info@schuchmann.de · www.schuchmann.de...
  • Page 20 schuchmann.de...
